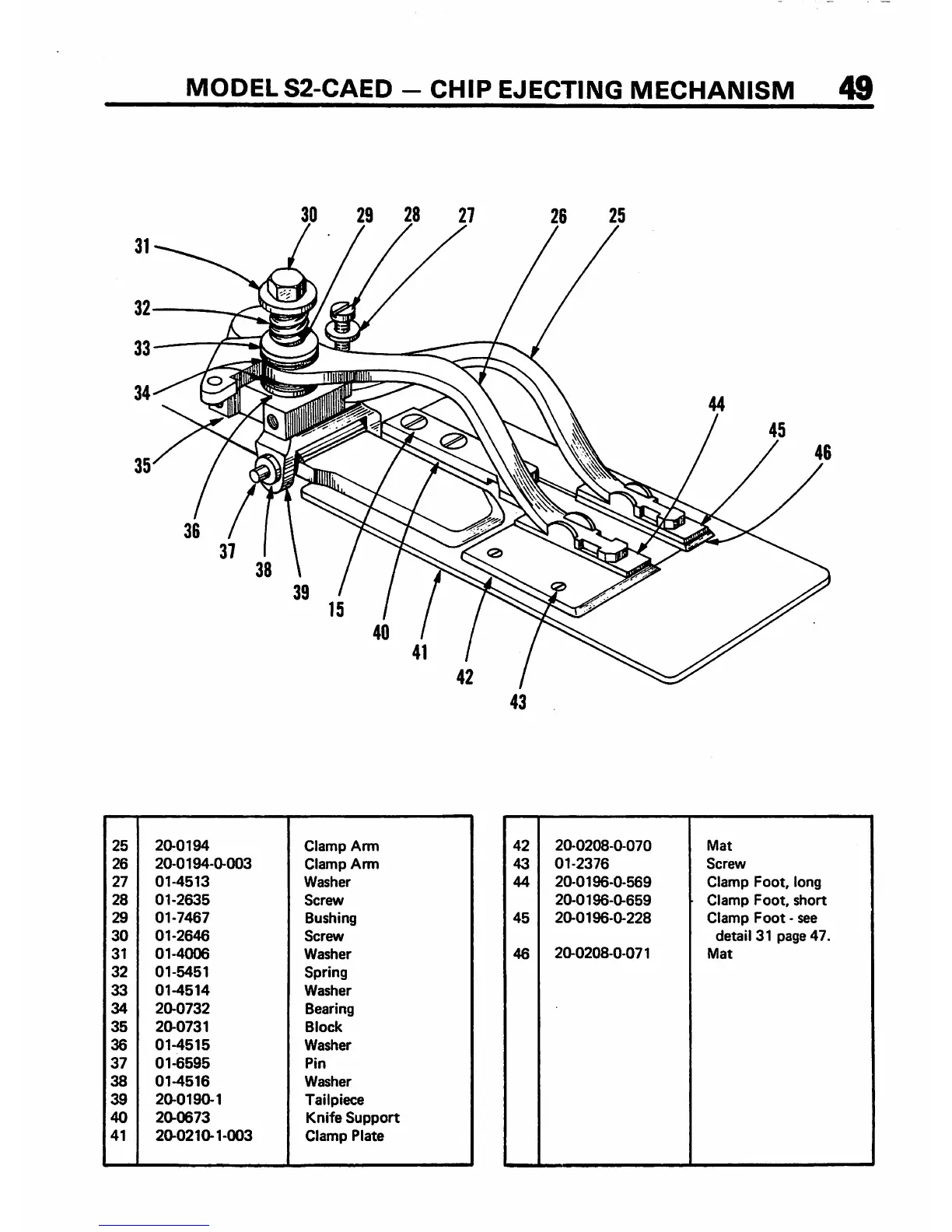

MODEL S2-CAED - CHIP EJECTING MECHANISM 49
30 29 28 27
26 25
25
20-0194
Clamp Arm 42
20-0208-0-070
Mat
26
20-0194-0-003 Clamp Arm
43
01-2376
Screw
27 01-4513 Washer
44
20-0196-0-569
Clamp Foot, long
28
01-2635
Screw 20-0196-0-659
• Clamp Foot, short
29
01-7467
Bushing
45 20-0196-0-228
Clamp Foot - see
30 01-2646 Screw
detail 31 page 47.
31 01-4006 Washer 46
20-0208-0-071 Mat
32 01-5451 Spring
33
01-4514
Washer
34
20-0732 Bearing
35
20-0731
Block
36 01-4515 Washer
37 01-6595 Pin
38 01-4516
Washer
39
20-0190-1
Tailpiece
40
20-0673 Knife Support
41
20-0210-1-003
Clamp Plate
