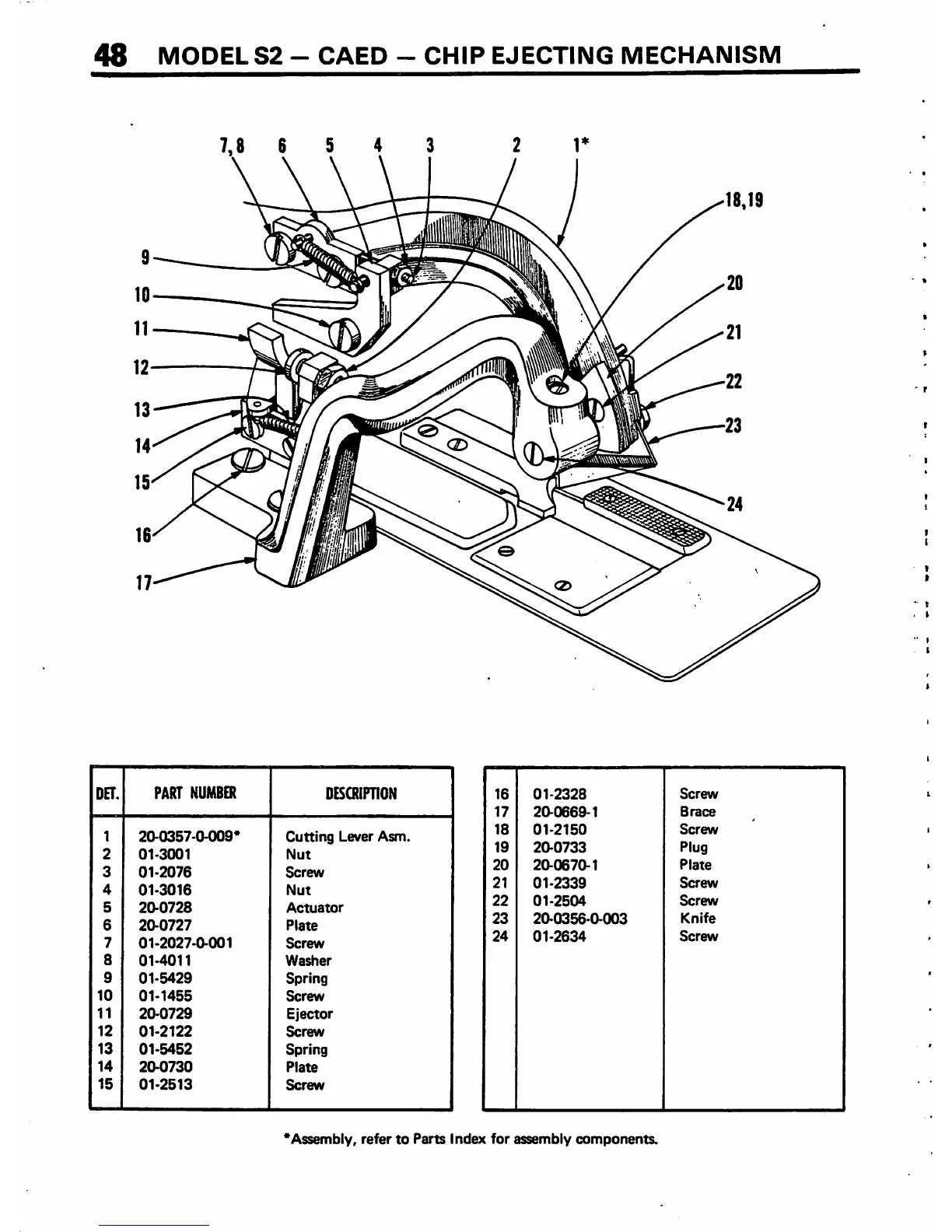

48 MODEL S2 - CAED - CHIP EJECTING MECHANISM
DET.
PART NUMBER
OESCRIPTION
1
20-0357-0-009'
Cutting Lever Asm.
2
01-3001
Nut
3
01-2076
Screw
4
01-3016
Nut
5
20-0728
Actuator
6 20-0727
Plate
7
01-2027-0-001
Screw
8
01-4011 Washer
9
01-5429
Spring
10
01-1455
Screw
11
20-0729
Ejector
12
01-2122 Screw
13
01-5452 Spring
14
20-0730
Plate
15
01-2513
Screw
16 01-2328
Screw
17
20-0669-1
Brace
18 01-2150
Screw
19
20-0733
Plug
20
20-0670-1
Plate
21
01-2339
Screw
22 01-2504
Screw
23
20-0356-0-003
Knife
24
01-2634
Screw
^Assembly, refer to Parts Index for assembly components.
