Reece Series S2 - Motor Mounting

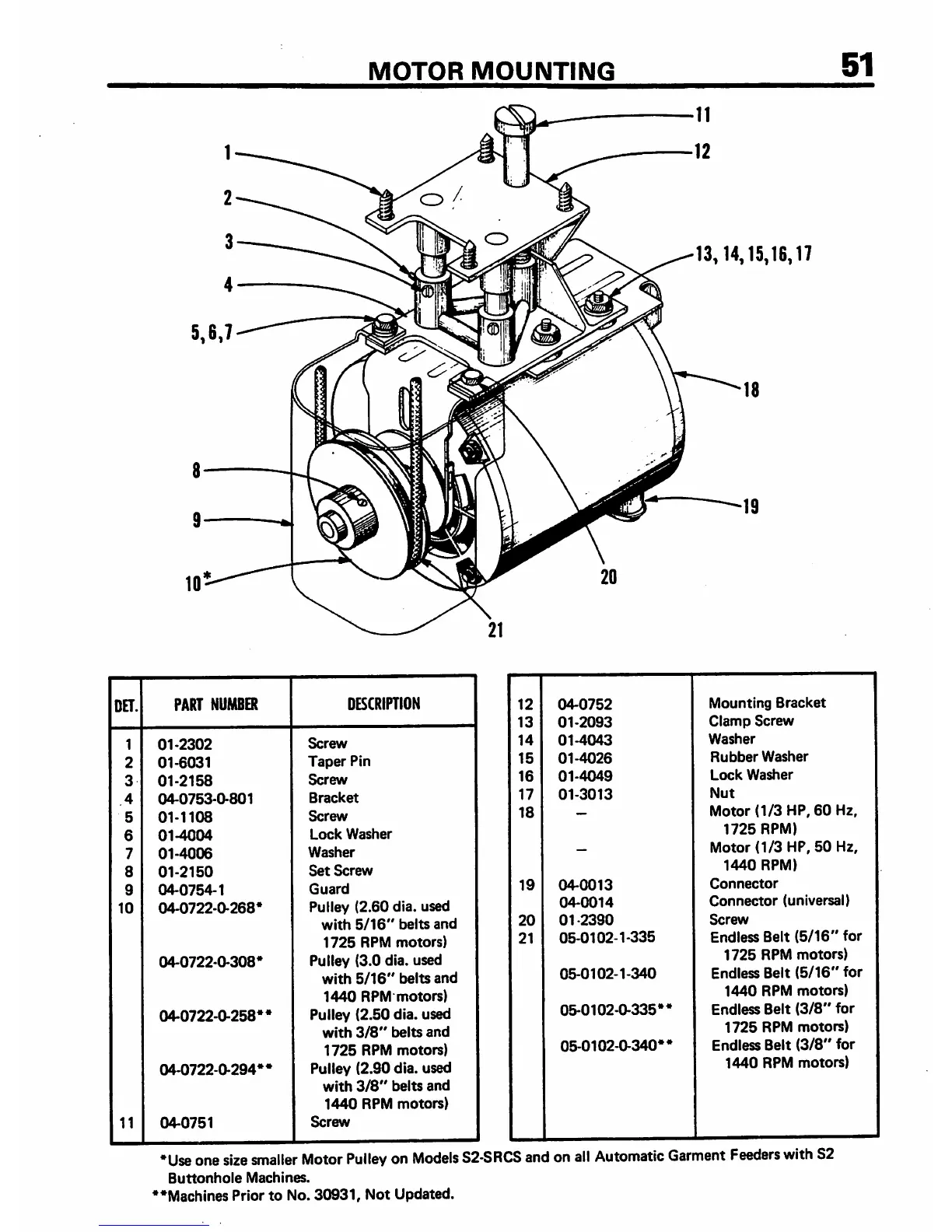

MOTOR MOUNTING
51
OET.
PART NUMBER
DESCRIPTION
1 01-2302
Screw
2
01-6031
Teper Pin
3 01-2158
Screw
4 04-0753-0-801
Brecket
5
01-1108
Screw
6
01-4004
Lock Wesher
7 01-4006
Wesher
8 01-2150
Set Screw
9 04-0754-1
Guerd
10
04-0722-0-268*
Pulley (2.60 die. used
with 5/16" belts end
1725 RPM motors)
04-0722-0-308*
Pulley (3.0 die. used
with 5/16" belts end
1440 RPM motors)
04-0722-0-258**
Pulley (2.50 die. used
with 3/8" belts end
1725 RPM motors)
04-0722-0-294**
Pulley (2.90 die. used
with 3/8" belts end
1440 RPM motors)
11 04-0751
Screw
13,14,15,16,17
12
04-0752
Mounting Brecket
13 01-2093
Clemp Screw
14
01-4043
Wesher
15 01-4026
Rubber Wesher
16 01-4049
Lock Wesher
17 01-3013
Nut
18
—
Motor (1/3 HP, 60 Hz.
1725 RPM)
Motor (1/3 HP, 50 Hz,
1440 RPM)
19 04-0013
Connector
04-0014
Connector (universe))
20
01 2390
Screw
21
05-0102-1-335
Endless Belt (5/16" for
1725 RPM motors)
05-0102-1-340
Endless Belt (5/16" for
1440 RPM motors)
05-0102-0-335**
Endless Belt (3/8" for
1725 RPM motors)
05-0102-0-340**
Endless Belt (3/8" for
1440 RPM motors)
^Use one size smeller Motor Pulley on Models S2-SRCS end on ell Autometic Germent Feeders with S2
Buttonhole Mechines.
^Mechlnes Prior to No. 30931, Not Updeted.
