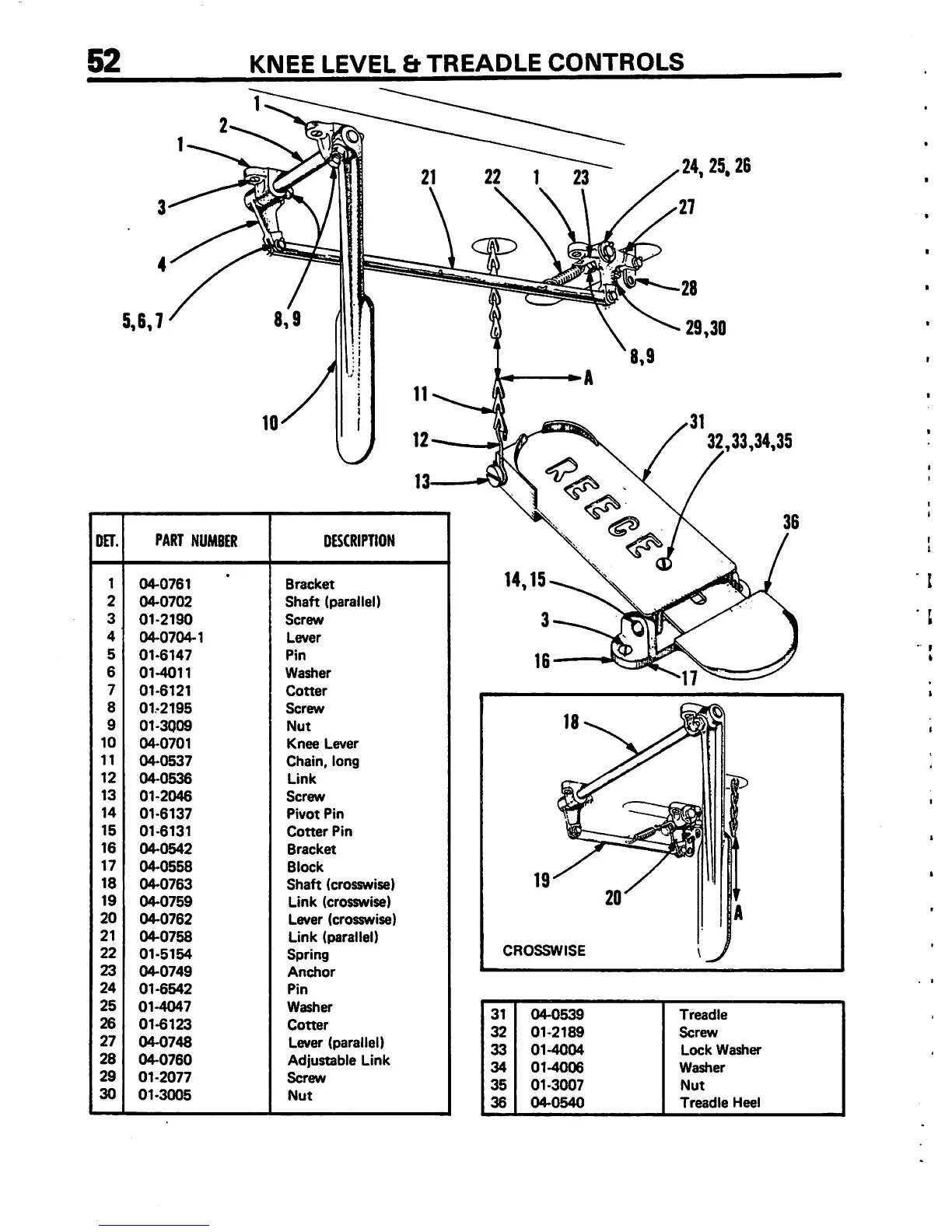

52

KNEE

LEVEL

&

TREADLE

CONTROLS

5,6.7

DET.

PART

NUMBER

DESCRIPTiON

1

04-0761

Bracket

2

04-0702

Shaft

(parallel)

3

01-2190

Screw

4

04-0704-1

Lever

5

01-6147

Pin

6

01-4011

Washer

7

01-6121

Cotter

8

01-2195

Screw

9

01-3009

Nut

10

04-0701

Knee

Lever

11

04-0537

Chain,

long

12

04-0536

Link

13

01-2046

Screw

14

01-6137

Pivot

Pin

15

01-6131

Cotter

Pin

16

04-0542

Bracket

17

04-0558

Block

18

04-0763

Shaft

(crosswise)

19

04-0759

Link

(crosswise)

20

04-0762

Lever

(crosswise)

21

04-0758

Link

(parallel)

22

01-5154

Spring

23

04-0749

Anchor

24

01-6542

Pin

25

01-4047

Washer

26

01-6123

Cotter

27

04-0748

Lever (parallel)

28

04-0760

Adjustable

Link

29

01-2077

Screw

30

01-3005

Nut

24,25.28

32,33,34,35

CROSSWISE

31

04-0539

Treadle

32

01-2189

Screw

33

01-4004

Lock

Washer

34

01-4006

Washer

35

01-3007

Nut

36

04-0540

Treadle

Heel

I
