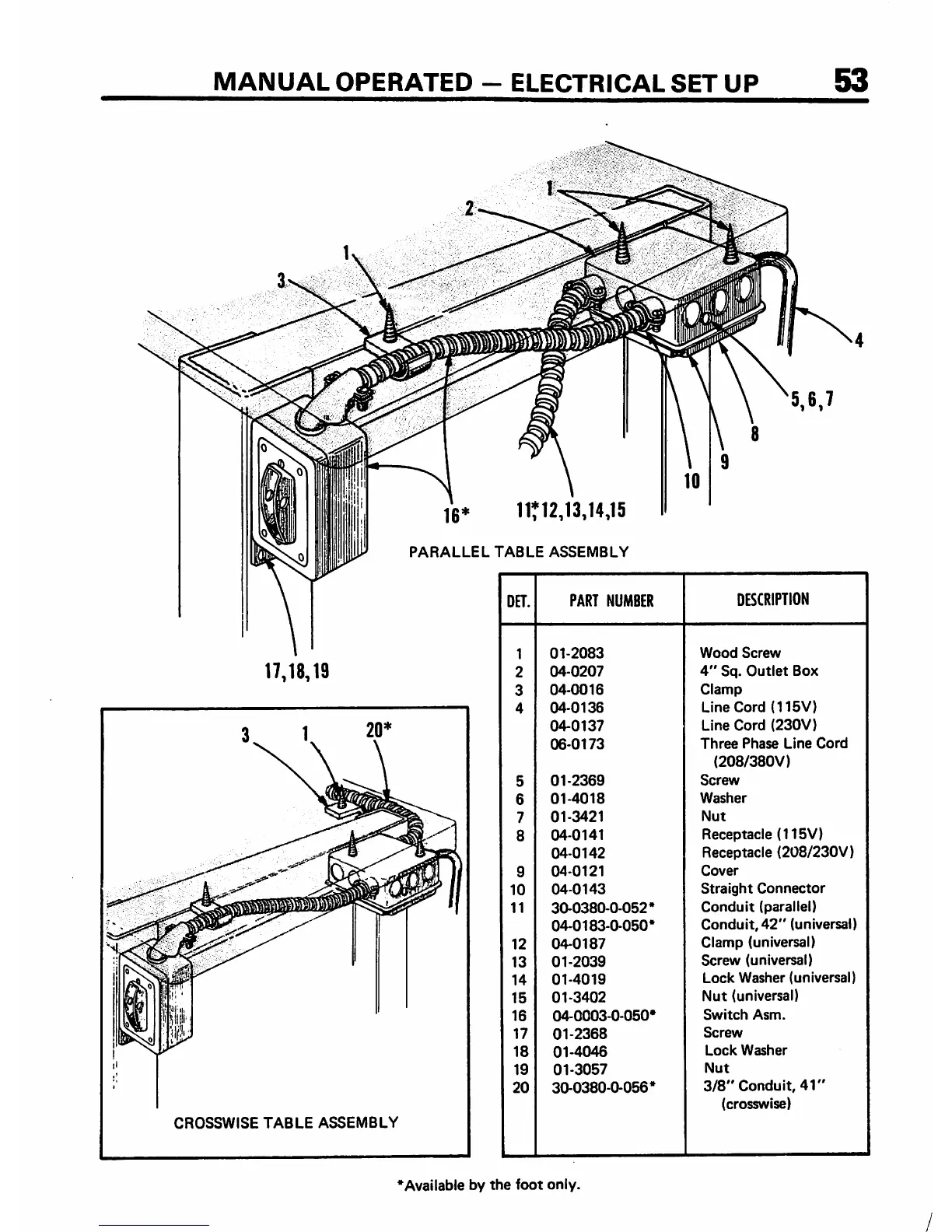

MANUAL OPERATED - ELECTRICAL SET UP
53
17,18,19
CROSSWISE TABLE ASSEMBLY
16* 11T12,13,14,15
PARALLEL TABLE ASSEMBLY
DET.
PART NUMBER
DESCRIPTION
1
01-2083
Wood Screw
2
04-0207
4" Sq. Outlet Box
3
04-0016
Clamp
4
04-0136
Line Cord (115V)
04-0137
Line Cord (230V)
06-0173
Three Phase Line Cord
(208/380V)
5
01-2369
Screw
6
01-4018
Washer
7
01-3421
Nut
8
04-0141
Receptacle (115V)
04-0142
Receptacle (208/230V)
9
04-0121
Cover
10
04-0143
Straight Connector
11 30-0380-0-052'
Conduit (parallel)
04-0183-0-050'
Conduit, 42" (universal)
12
04-0187
Clamp (universal)
13
01-2039
Screw (universal)
14
01-4019
Lock Washer (universal)
15
01-3402
Nut (universal)
16
04-0003-0-050'
Switch Asm.
17 01-2368
Screw
18 01-4046
Lock Washer
19
01-3057
Nut
20
30-0380-0-056'
3/8" Conduit, 41"
(crosswise)
*Available by the foot only.
