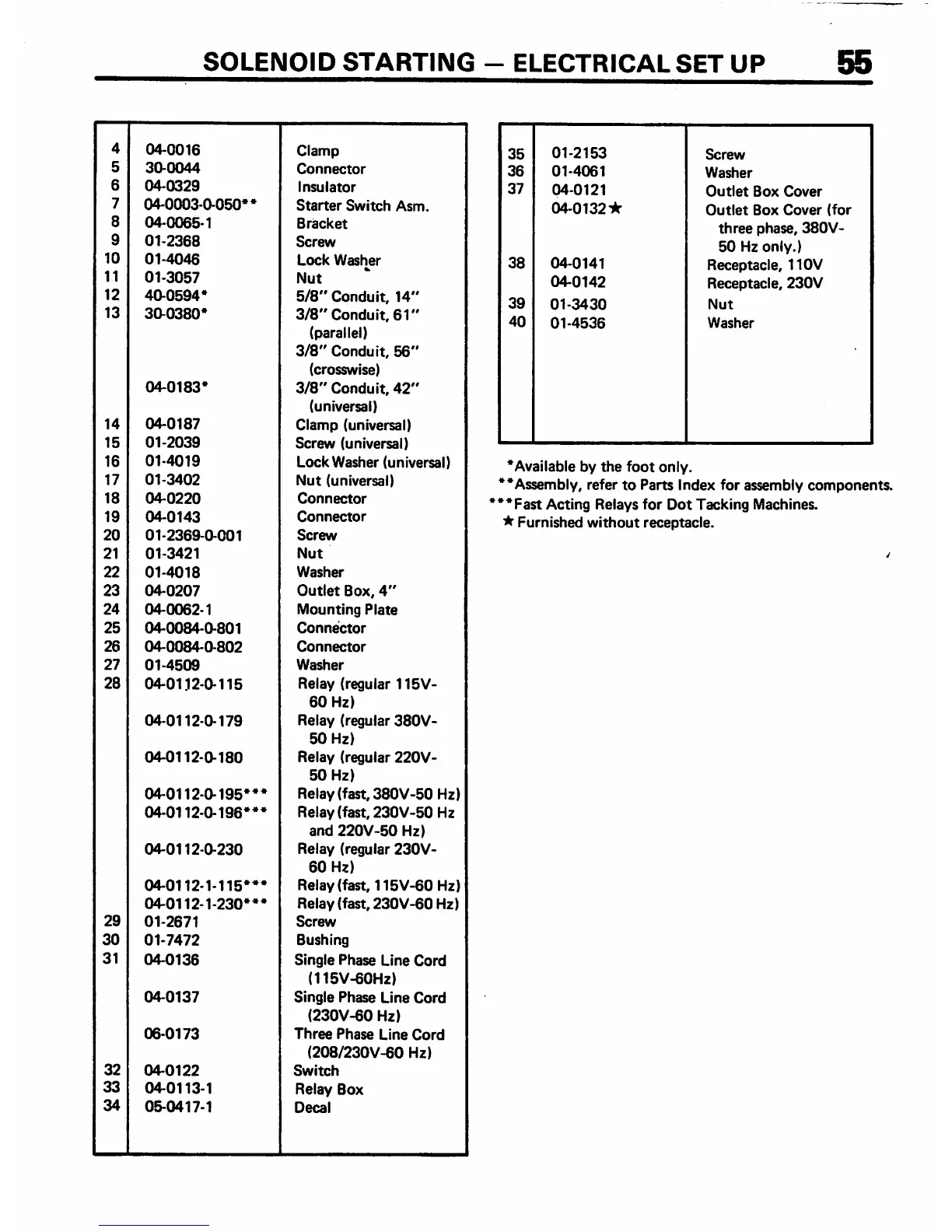

SOLENOID STARTING - ELECTRICAL SET UP
55
4
04-0016 Clamp
5
30-0044
Connector
6
04-0329
Insulator
7
04-0003-0-050* •
Starter Switch Asm.
8
04-0065-1
Briacket
9
01-2368
Screw
10
01-4046 Lock Washer
11
01-3057
Nut
12
40-0594*
5/8" Conduit, 14"
13
30-0380*
3/8" Conduit, 61"
(parallel)
3/8" Conduit, 56"
(crosswise)
04-0183*
3/8" Conduit, 42"
(universal)
14
04-0187
Clamp (universal)
15
01-2039
Screw (universal)
16 01-4019
Lock Washer (universal)
17
01-3402
Nut (universal)
18
04-0220
Connector
19
04-0143
Connector
20
01-2369-0-001
Screw
21 01-3421
Nut
22
01-4018
Washer
23
04-0207
Outlet Box, 4"
24
04-0062-1
Mounting Plate
25
04-0084-0-801
Conn^or
26
04-0084-0-802
Connector
27
01-4509
Washer
28
04-01.12-0-115
Relay (regular 115V-
60 Hz)
04-0112-0-179
Relay (regular 380V-
50 Hz)
04-0112-0-180
Relay (regular 220V-
50 Hz)
04-0112-0-195***
Relay (fast, 380V-50 Hz)
04-0112-0-196***
Relay (fast, 230V-50 Hz
and 220V-50 Hz)
04-0112-0-230
Relay (regular 230V-
60 Hz)
04-0112-1-115***
Relay (fast, 115V-60 Hz)
04-0112-1-230***
Relay (fast, 230V-60 Hz)
29
01-2671
Screw
30
01-7472
Bushing
31
04-0136 Single Phase Line Cord
(115V-60HZ)
04-0137 Single Phase Line Cord
(230V-60 Hz)
06-0173 Three Phase Line Cord
(208/230V-60 Hz)
32
04-0122 Switch
33
04-0113-1
Relay Box
34
05-0417-1
Decal
35
01-2153
Screw
36
01-4061
Washer
37
04-0121
Outlet Box Cover
04-0132*
Outlet Box Cover (for
three phase, 380V-
50 Hz only.)
38
04-0141
Receptacle, 110V
04-0142
Receptacle, 230V
39
01-3430
Nut
40
01-4536
Washer
*Available by the foot only.
**Assembly, refer to Parts Index for assembly components.
***Fast Acting Relays for Dot Tacking Machines.
* Furnished without receptacle.
