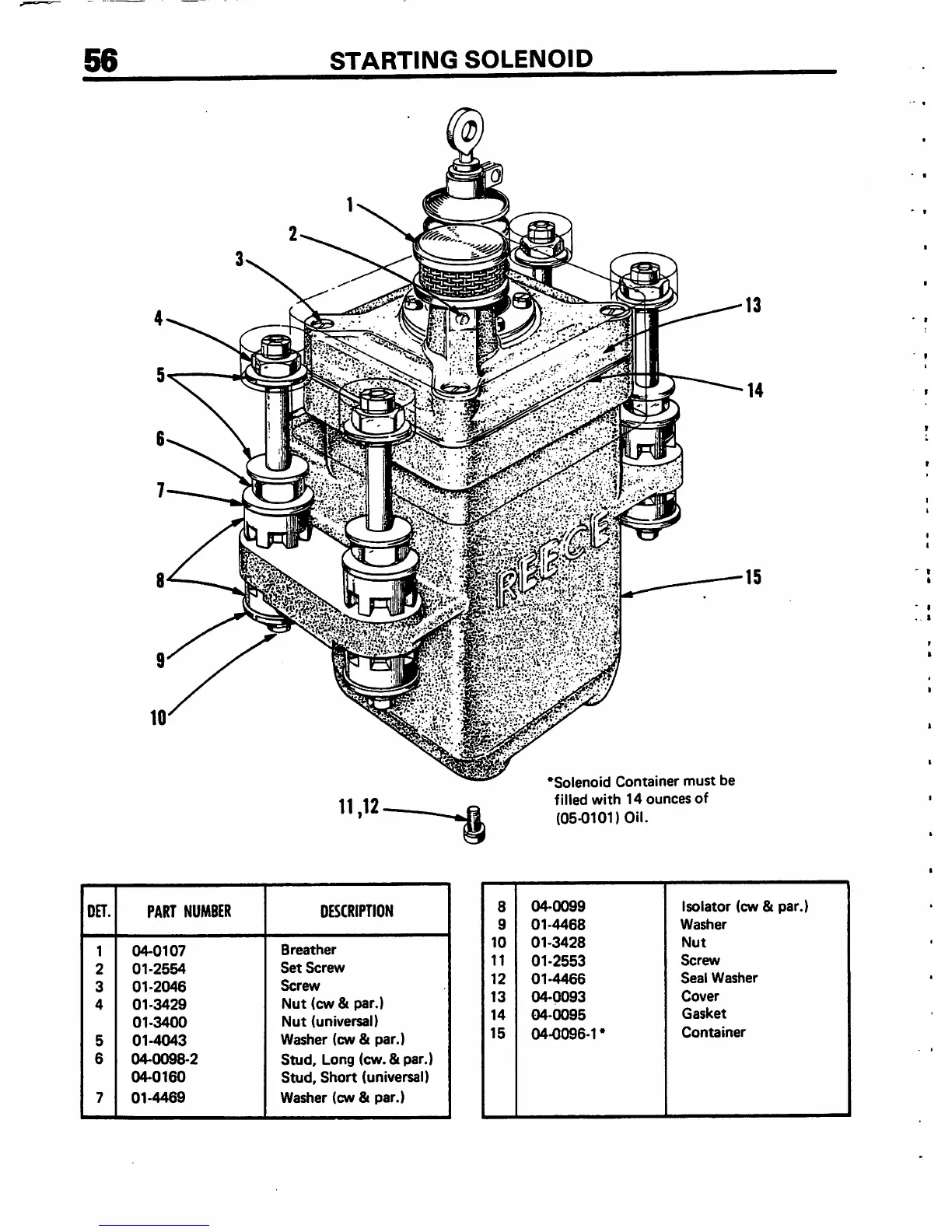

STARTING SOLENOID
11.12
DET.
PART NUMBER
DESCRIPTION
1
04-0107
Breather
2
01-2554
Set Screw
3 01-2046
Screw
4 01-3429
Nut (cw & par.)
01-3400
Nut (universal)
5 01-4043
Washer (cw & par.)
6
04-0098-2
Stud, Long (cw. & par.)
04-0160
Stud, Short (universal)
7 01-4469 Washer (cw & par.)
"Solenoid Container must be
filled with 14 ounces of
(05-0101) Oil.
8
04-0099
Isolator (cw & par.)
9
01-4468
Washer
10 01-3428
Nut
11
01-2553
Screw
12 01-4466
Seal Washer
13 04-0093
Cover
14
04-0095
Gasket
15
04-0096-1 ♦
Container
