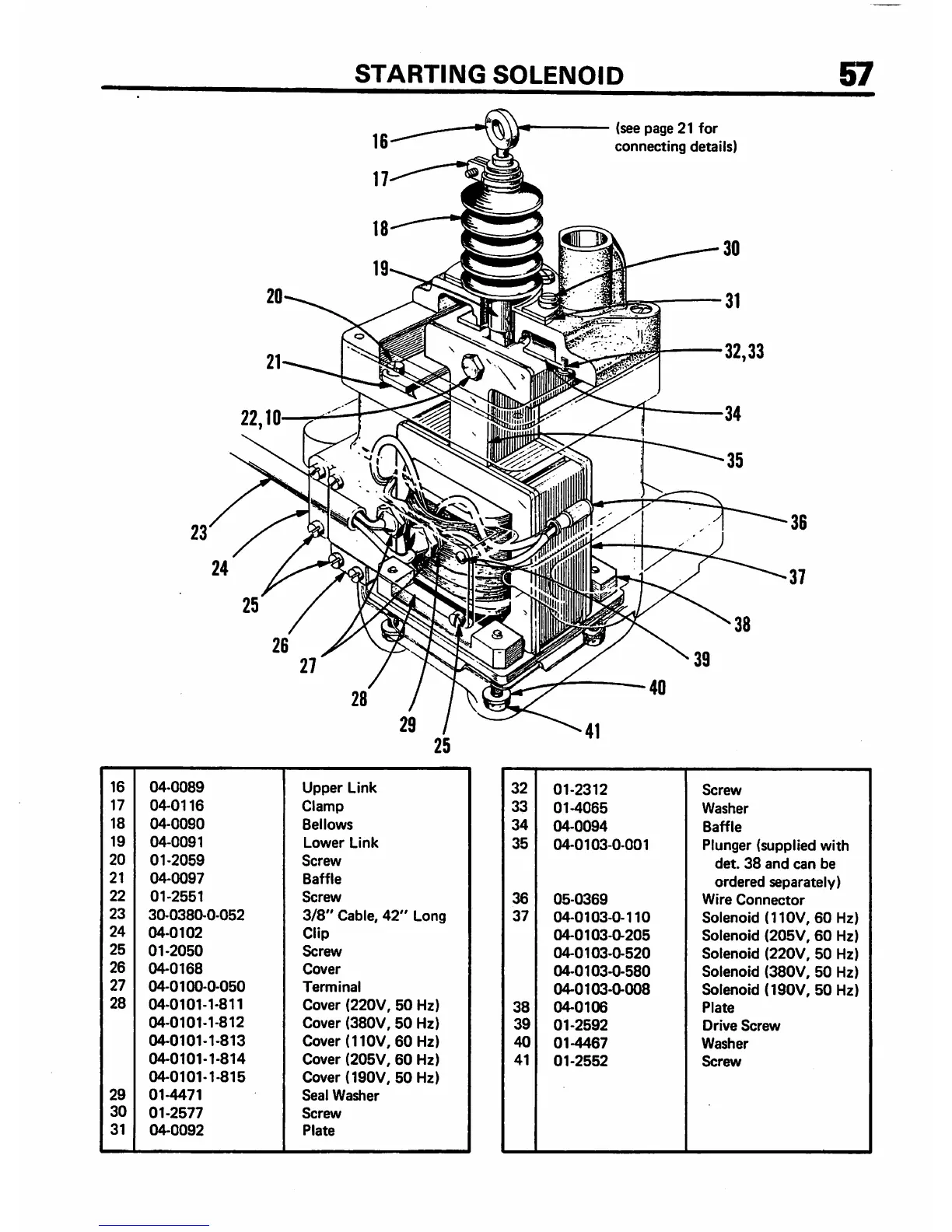

STARTING SOLENOID
(see page 21 for
connecting details)
57
16
04 0089 Upper Link
32
01-2312
Screw
17
04-0116
Clamp
33
01-4065
Washer
18
04-0090
Bellows
34
04-0094
Baffle
19
04-0091
Lower Link
35
04-0103-0-001
Plunger (supplied with
20
01-2059 Screw
det. 38 and can be
21
04-0097
Baffle
ordered separately)
22
01-2551 Screw
36
05-0369 Wire Connector
23
30-0380-0-052
3/8" Cable. 42" Long
37
04-0103-0-110
Solenoid (110V. 60 Hz)
24
04-0102
Clip
04-0103-a205 Solenoid (205V. 60 Hz)
25
01-2050
Screw
04-0103-0-520 Solenoid (220V. 50 Hz)
26
04-0168 Cover
04-0103-0-580 Solenoid (380V. 50 Hz)
27
04-0100-0-050 Terminal
04-0103-0-008
Solenoid (190V. 50 Hz)
28
04-0101-1-811
Cover (220V. 50 Hz)
38 04-0106
Plate
04-0101-1-812
Cover (380V. 50 Hz)
39
01-2592
Drive Screw
04-0101-1-813 Cover (110V. 60 Hz)
40
01-4467
Washer
04-0101-1-814 Cover (205V. 60 Hz)
41
01-2552
Screw
04-0101-1-815 Cover (190V. 50 Hz)
29
01-4471
Seal Washer
30
01-2577 Screw
31
04-0092 Plate
