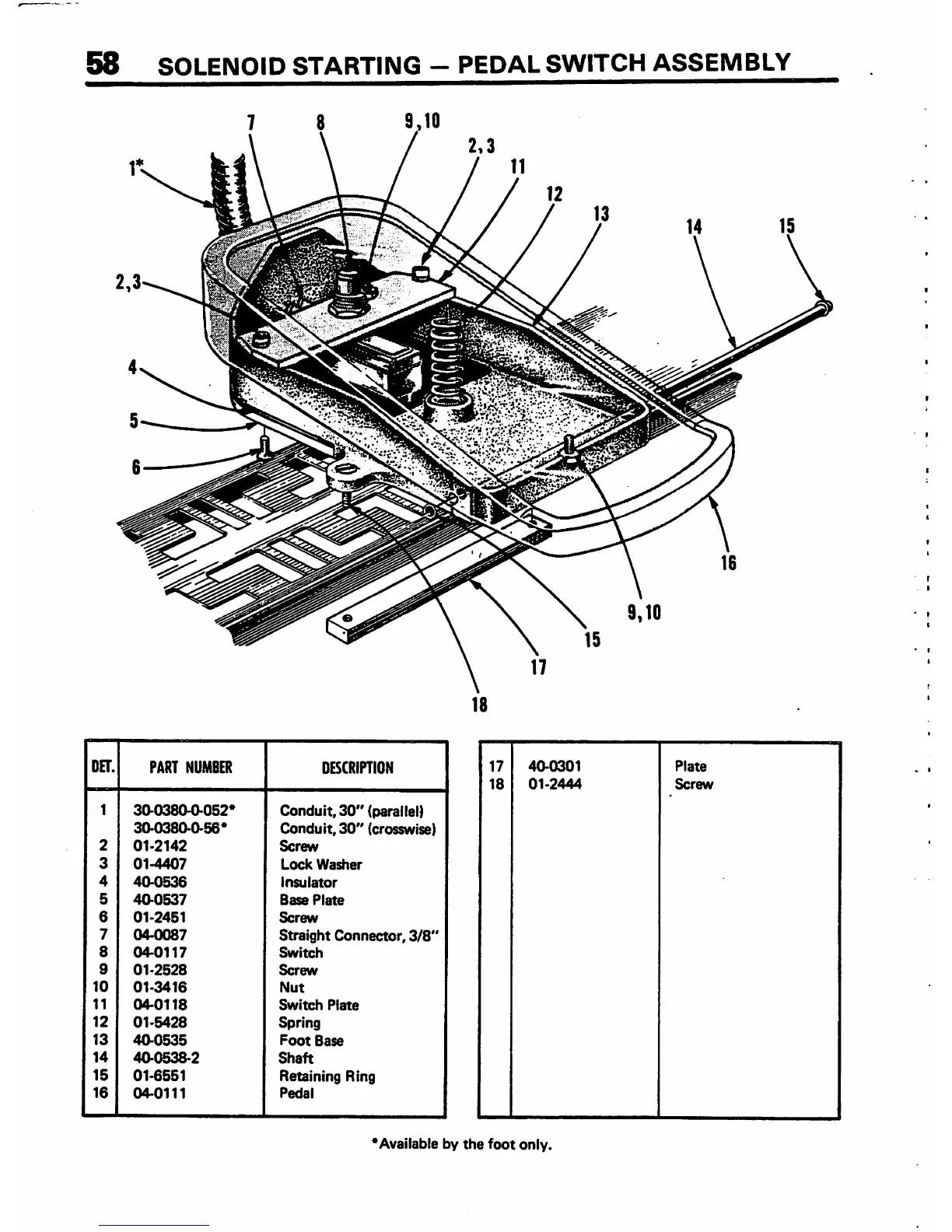

SOLENOID STARTING - PEDALSWITCH ASSEMBLY

DET.

PART

NUMBER

DESCRiPTION

1

30-0380-0-052*

Conduit,

30"

(parallel)

30-0380-0-56*

Conduit,

30"

(crosswise)

2

01-2142

Screw

3

01-4407

Lock

Washer

4

40-0536

Insulator

5

4a0537

Base

Plate

6

01-2451

Screw

7

04-0087

Straight

Connector.

3/8"

8

04-0117

Switch

9

01-2528

Screw

10

01-3416

Nut

11

04-0118

Switch

Plate

12

01-5428

Spring

13

4a0535

Foot

Base

14

40-0538-2

Shaft

15

01-6551

Retaining Ring

16

04-0111

Pedal

17

18

40-0301

01-2444

'Available

by

the

foot

only.

Plate

Screw
