Reece Series S2 - Page 68

DET. PART NUMBER
01-3429
01-4043
01-4501
20-0598-2
04-0158
01-4500
04-0156
01-2607
04-1061
04-0178
04-0157
20-0691-1
01-2538
01-4063

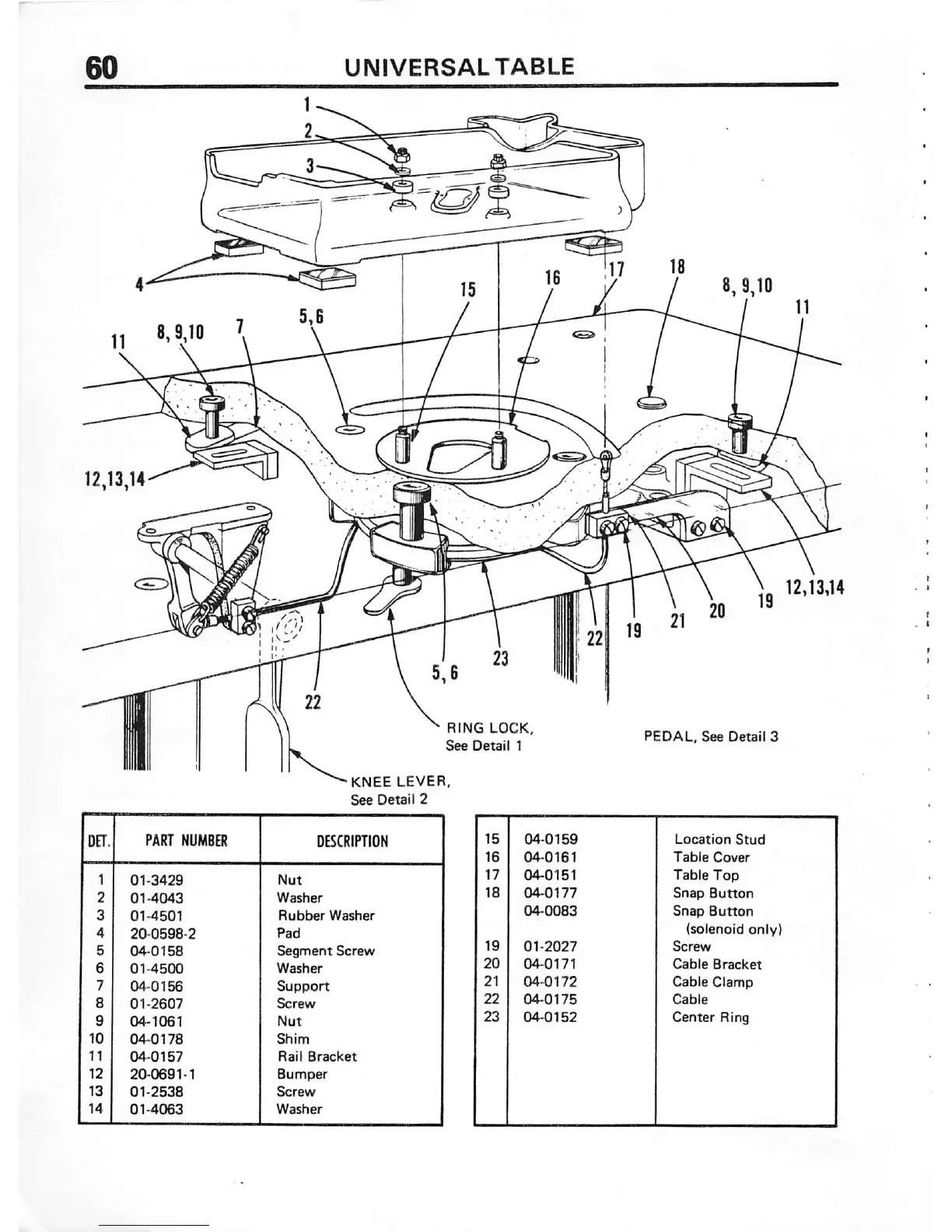

UNIVERSAL TABLE
i
RING LOCK
See Detail 1
KNEE LEVER.
See Detail 2
DESCRIPTON
Nut
Washer
Rubber Washer
Pad
Segment Screw
Washer
Support
Screw
Nut
Shim
Rail Bracket
Bumper
Screw
Washer
04-0159
04-0161
04-0151
04-0177
04-0083
01-2027
04-0171
04-0172
04-0175
04-0152
PEDAL, See Detail 3
Location Stud
Table Cover
Table Top
Snap Button
Snap Button
(solenoid only)
Screw
Cable Bracket
Cable Clamp
Cable
Center Ring
\
12,13>U
