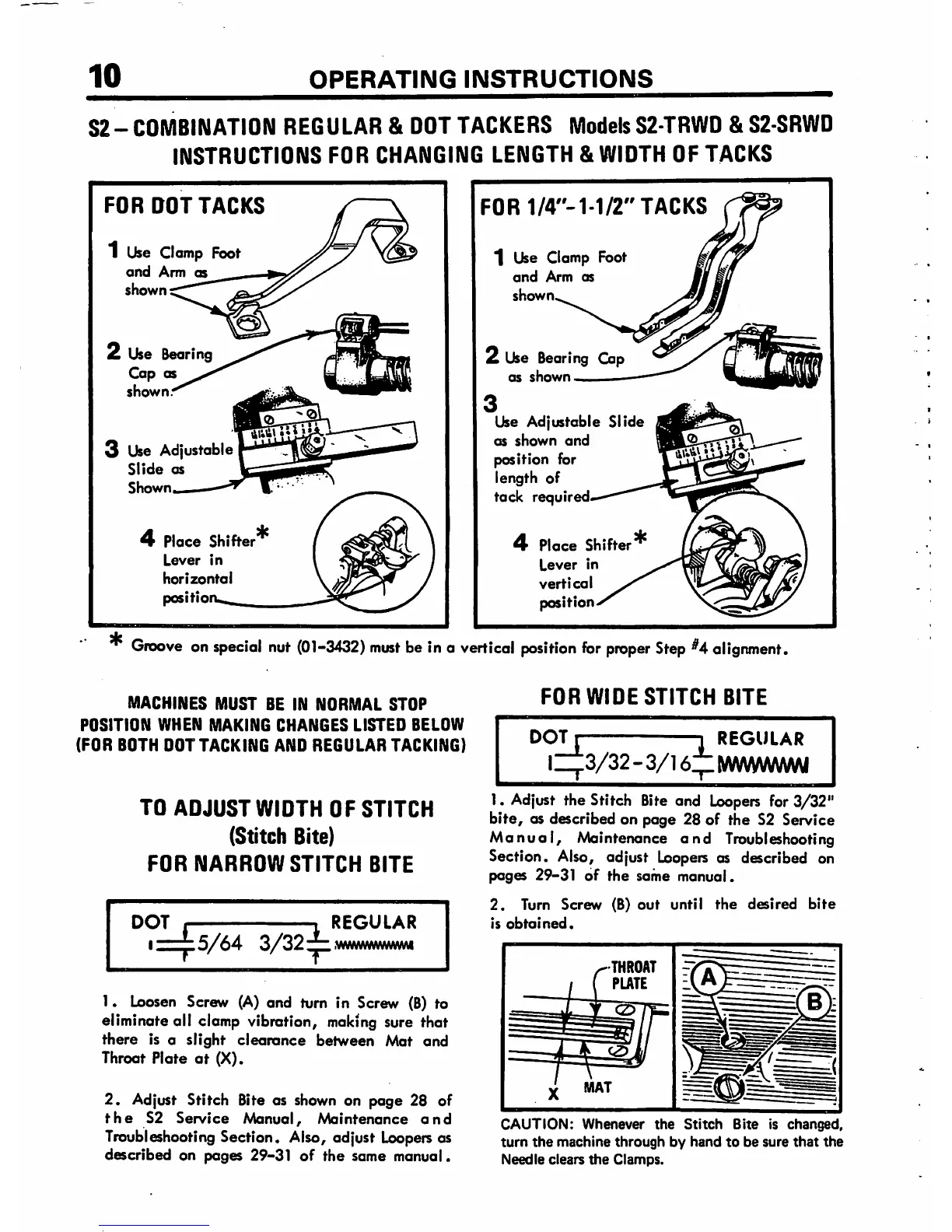

10
OPERATING
INSTRUCTIONS
SZ-
COMBINATION
REGULAR
&
OOT
TACKERS
Models
S2-TRW0
&
S2-SRWD
INSTRUCTIONS FOR CHANGING LENGTH &
WIDTH
OF TACKS
FOR
OOT
TACKS
1
Use
Clamp
Foot
and
Arm
as
shown
2
Use
Bearing
Cap
as
shown.'
3
Use
Adjustable
Slide
OS
Shown
4
Place
Shifter
Lever
in
horizontal
positioru«.
FOR
1/4"-1-1/2"
TACKS
1
Use
Clamp
Foot
and
Arm
as
shown
2
Use
Bearing
Cap
as
shown
3
Use
Adjustable Slide
as
shown
and
position for
length of
tack required
4 Place Shifter
Lever
in
vertical
position
Groove
on
special
nut
(01-3432)
must
be in a vertical
position
for
proper
Step
'4
oiignment.
MACHINES MUST BE IN NORMAL STOP
POSITION WHEN MAKING CHANGES LISTEO BELOW
(FOR
BOTH
OOTTACKING
ANO
REGULAR TACKING)
TO
ADJUST
WIDTH OF
STITCH
(Stitch Bite)
FOR
NARROW
STITCH
BITE
DOT
1=^5/64 3/32:^
REGULAR
1.
Loosen
Screw (A) and turn in Screw
(B)
to
eliminate all clamp vibration,
making
sure that
there is a slight clearance between Mat and
Throat Plate
at
(X).
2.
Adjust Stitch Bite as shown on page 28 of
the
S2
Service
Manual,
Maintenance
and
Troubleshooting Section. Also, adjust
Loopers
as
described on pages 29-31
of
the
same
manual.
FOR
WIDE
STITCH
BITE
DOT
REGULAR
1
i_^3/32
-
3/161:
mmimt
1.
Adjust
the Stitch
Bite
and
Loopers
for 3/32"
bite,
OS
described on page 28 of the S2 Service
Manual,
Maintenance
and
Troubleshooting
Section. Also, adjust
Loopers
as described on
pages 29-31
of
the
some
manual.
2.
Turn Screw (B)
out
until
the
desired
bite
is
obtained.
CAUTION:
Whenever
the
Stitch
Bite is
changed,
turn
the
machine
through
by
hand
to
be
sure
that
the
Needle
clears
the
Clamps.
