Data Stream Output


and use the following setting to view the data stream.
Terminal Settings:
 
 
 
 
41050000000010 = Upper Value, +10 pH
Reading
Decimal Place 0-3
Positive (+) = 0, Negative (-) = 1
°C = 01, °F = 02, pH = 05, mV = 18
1 = Upper display value,
2 = Lower display value
4
41050000000010 = Valeur supérieure, +10 pH
Lecture
Position décimale 0-3
Positif (+) = 0, Negatif (-) = 1
4
1 = valeur d'affichage supérieure,
2 = valeur d'affichage inférieure
°C = 01, °F = 02, pH = 05, mV = 18

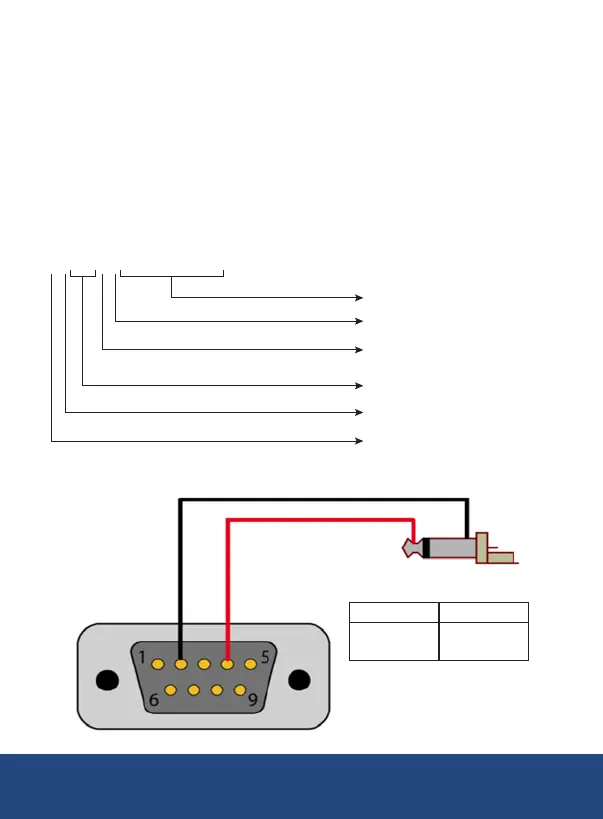

3.5mm Terminal to RS-232 Serial Connection
RS-232 Mono Jack
Pin 2 (RX)
Pin 4 (DTX)
Sleeve
Tip
