EOS2 SAFETY LIGHT CURTAIN

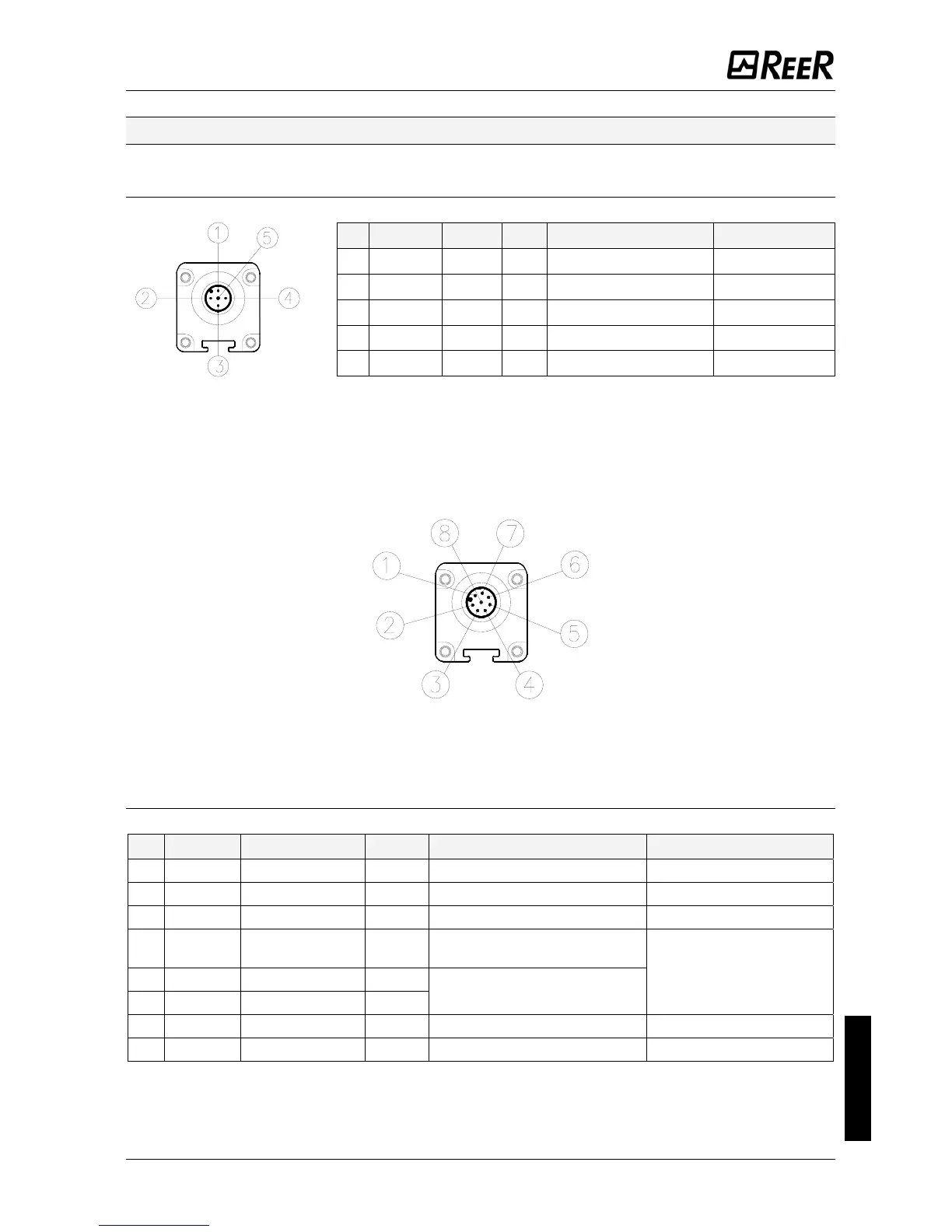

Receiver connections
STANDARD MODELS - M12, 5-pin connector.
PIN COLOUR
NAME TYPE
DESCRIPTION OPERATION
1 Brown - 24VDC power supply - 24VDC
2 White OUT Static safety output 1 PNP active high OSSD1
3 Blue - 0VDC power supply - 0VDC
4 Black OUT Static safety output 2 PNP active high OSSD2
5 Grey - Ground connection - FE
Table 8 - M12, 5 pins Primary RX
MODELS WITH INTEGRATED CONTROL FUNCTIONS - M12, 8-pin connector.
MASTER MODELS - M12, 8-pin primary connector.
PIN COLOUR NAME TYPE DESCRIPTION OPERATION
1 White OUTPUT
Static safety output 1 PNP active high OSSD1
2 Brown - 24VDC power supply - 24VDC
3 Green OUTPUT
Static safety output 2 PNP active high OSSD2
Feedback from external
contactors
English
4 Yellow K1_K2/RESTART INPUT
5 Grey SEL_A INPUT
Complying with the
EN61131-2 standard
(ref. Par. "Configuration
and operating modes")
Light curtain configuration
6 Pink INPUT SEL_B
7 Blue - 0VDC power supply - 0VDC
8 Red - Ground connection - FE
Table 9 - M12, 8 pins RX
8540738 • 2nd December 2009 • Rev.2 17
