EOS2 SAFETY LIGHT CURTAIN
 The Restart command must be installed outside the danger area in a position where
the danger area and the entire work area concerned are clearly visible.
 It must not be possible to reach the control from inside the danger area.
Connection of external contactors K1 and K2
In both operating modes, it is possible to activate control of the external contactors
K1/K2. If this control is to be used, it is necessary to connect pin 4 of the M12 8-pin
connector of the Receiver with the power supply (24VDC) via a set of NC contacts
(feedback) of the external contactors.
In the case of manual operation, the RESTART button in series with the NC contacts
(feedback) of the external contactors K1/K2 (
Figure 20) must also be present.

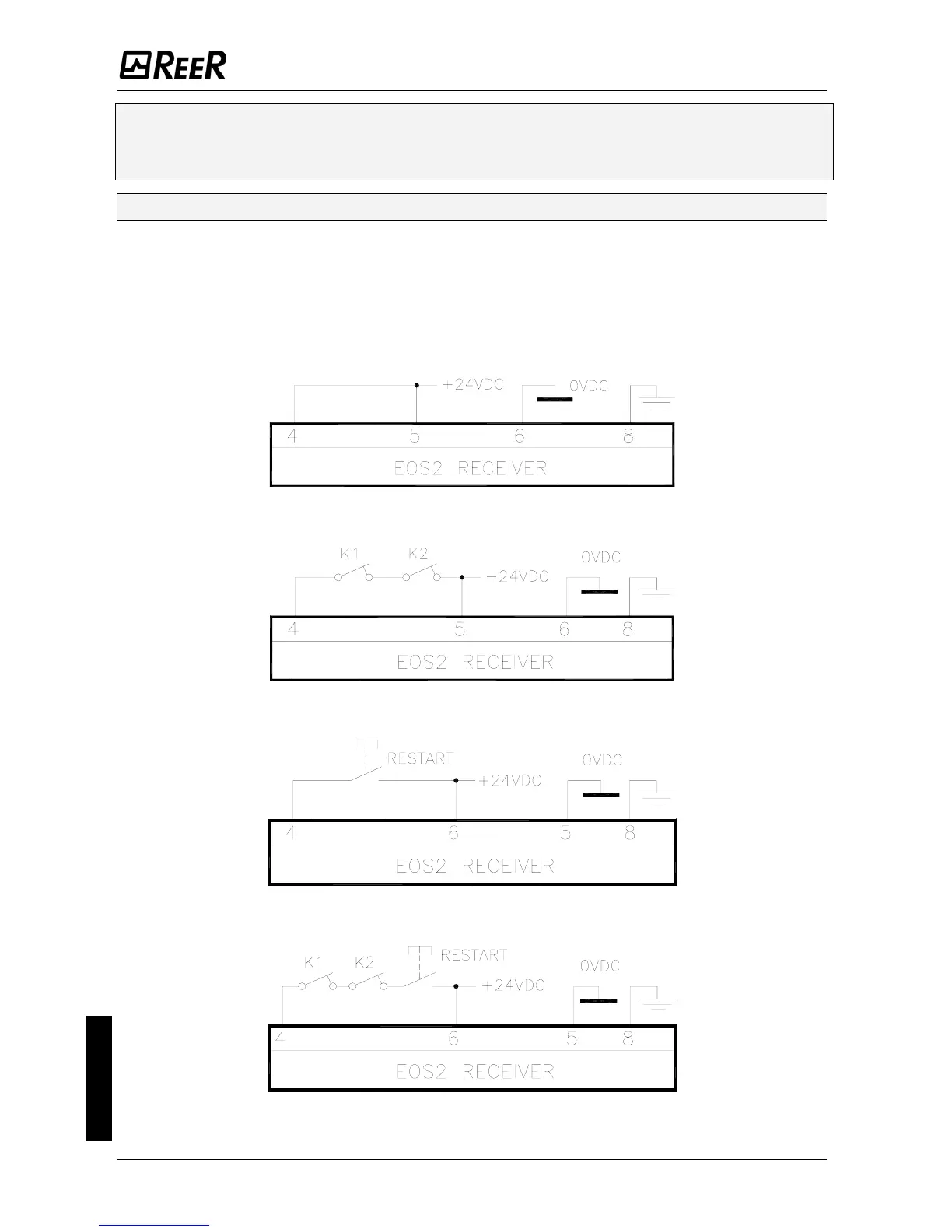

Figure 17 - Automatic
Figure 18 – Automatic with K1K2 feedback
Figure 19 - Manual
English
Figure 20 – Manual with K1K2 feedback
20 8540738 • 2nd December 2009 • Rev.2
