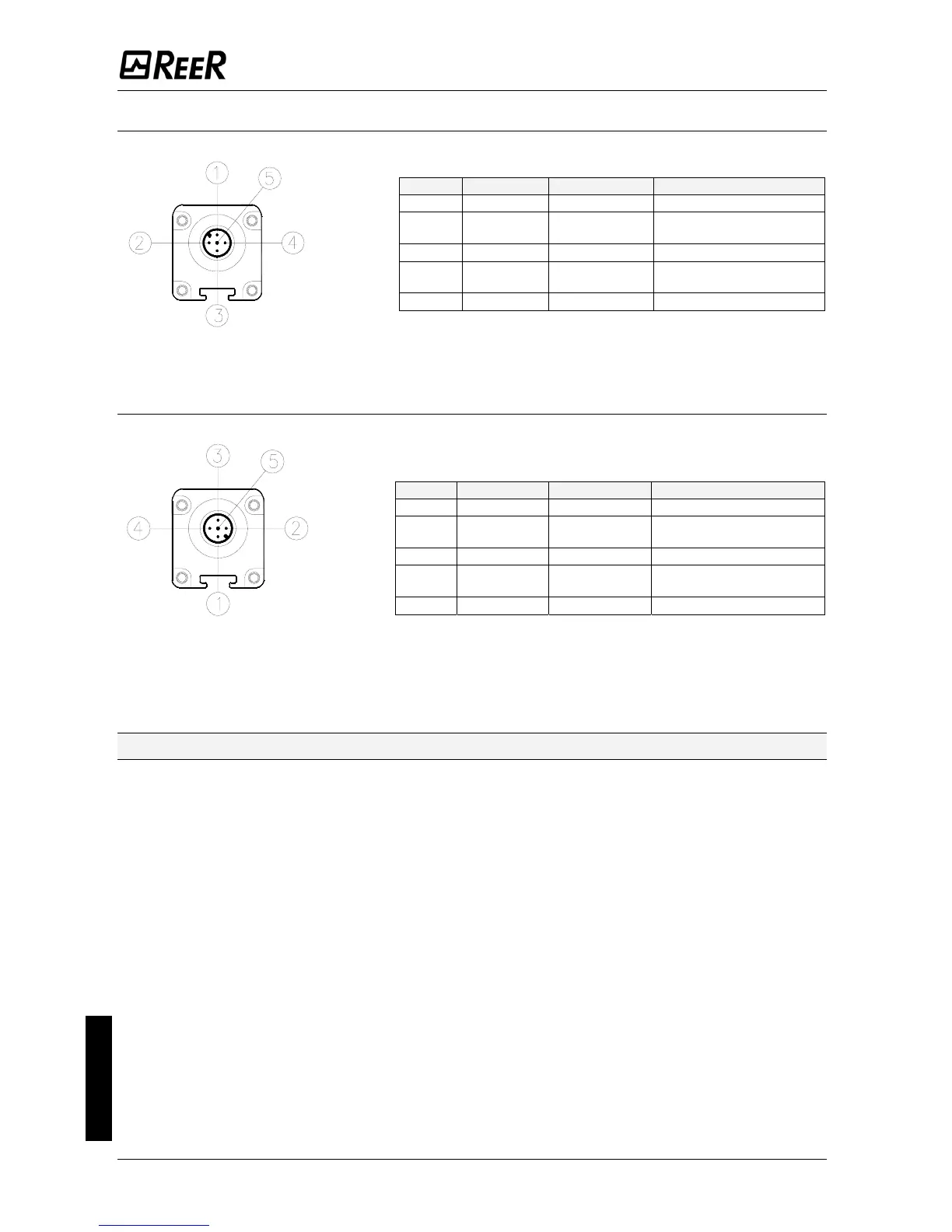

EOS2 SAFETY LIGHT CURTAIN
SLAVE/SLAVE2 MODELS - M12, 5-pin primary connectors.
PIN COLOUR NAME DESCRIPTION
1 Brown 24VDC power supply 24VDC
Communication
MASTER-SLAVE
2 White LINE_A
3 Blue 0VDC power supply 0VDC
Communication
MASTER-SLAVE
4 Black LINE_B
5 Grey Ground connection FE
Table 10 - M12, 5 pins Primary Slave RX
MASTER MODELS - M12, 5-pin Secondary Connector.
SLAVE2 MODELS - M12, 5-pin Secondary Connector.
PIN COLOUR NAME DESCRIPTION
1 Brown 24VDC power supply 24VDC
Communication
MASTER-SLAVE
2 White LINE_A
3 Blue 0VDC power supply 0VDC
Communication
MASTER-SLAVE
4 Black LINE_B
5 Grey Ground connection FE
Table 11 - M12, 5 pin Secondary RX
Warnings regarding connection cables
• For connections with a length of more than 50m, use cables having a cross-section
of at least 1mm
2
.
• It is good practice to keep the power supply of the light curtain separate from that
of other electric power equipment (electric motors, inverters, frequency variators)
or other sources of disturbance.
• Connect the Emitter and Receiver to the ground outlet.
• The connection cables must follow a different route from that of other power
cables.
English
18 8540738 • 2nd December 2009 • Rev.2
