Reer EOS2 A User Manual

EOS2 SAFETY LIGHT CURTAIN
Multibeam Models 2B 3B 4B
Number of beams 2 3 4
Distance between the beams mm 500 400 300
Response time ms 3 3,5 3,5
Response time
(Master +1 slave) ms
t
tot
= [0,1104 * (Nr
slave1
+ Nr
master
) + 1,1044] * 2
Response time
(Master + 2 slaves) ms
t
tot
= [0,1104 * (Nr
slave1
+ Nr
slave2
+ Nr
master
) + 1,3228] * 2
Curtain tot. height mm
677,5 977,5 1127,5
1,71E-08 1,87E-08 2,02E-08 PFHd *
DCavg
#
94,9% 94,6% 94,2%
MTTFd
#
years
100
CCF
#
80%
* IEC 61508
#
ISO 13849-1
Dimensions

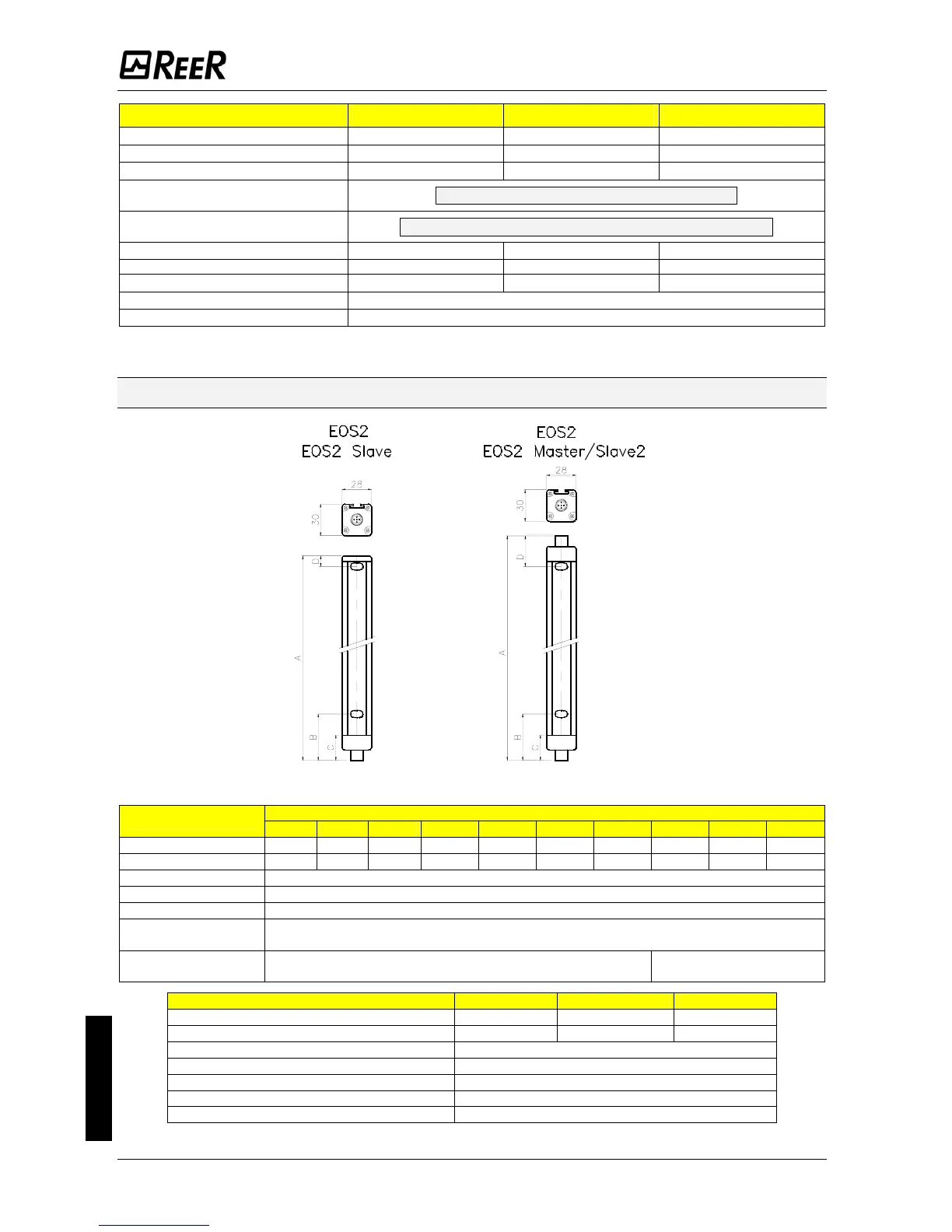

Figure 25 - Emitter and Receiver
Height
Model
150 300 450 600 750 900 1050 1200 1350 1500
213 363 513 663 813 963 1113 1263 1413 1563 A
236.5
386.5 536.5
686.5 836.5 986.5 1136.5
1286.5 1436.5
1586.5
A (Master/Slave)
61.5 B
29.5 C
11 D
D (Master/Slave2)
(With 2 connectors)
34.5
3 LE TYPE brackets with
3 inserts
2 LE TYPE brackets with 2 inserts Fastening
Model 2B 3B 4B
653 953 1053 A
677 977 1077 A (Master/Slave2)
English
102 B
29.5 C
51 D
75 D (Master/Slave2) (With 2 connectors)
2 LE TYPE brackets with 2 inserts Fastening
26 8540738 • 2nd December 2009 • Rev.2
