Reer EOS2 A User Manual

EOS2 SAFETY LIGHT CURTAIN

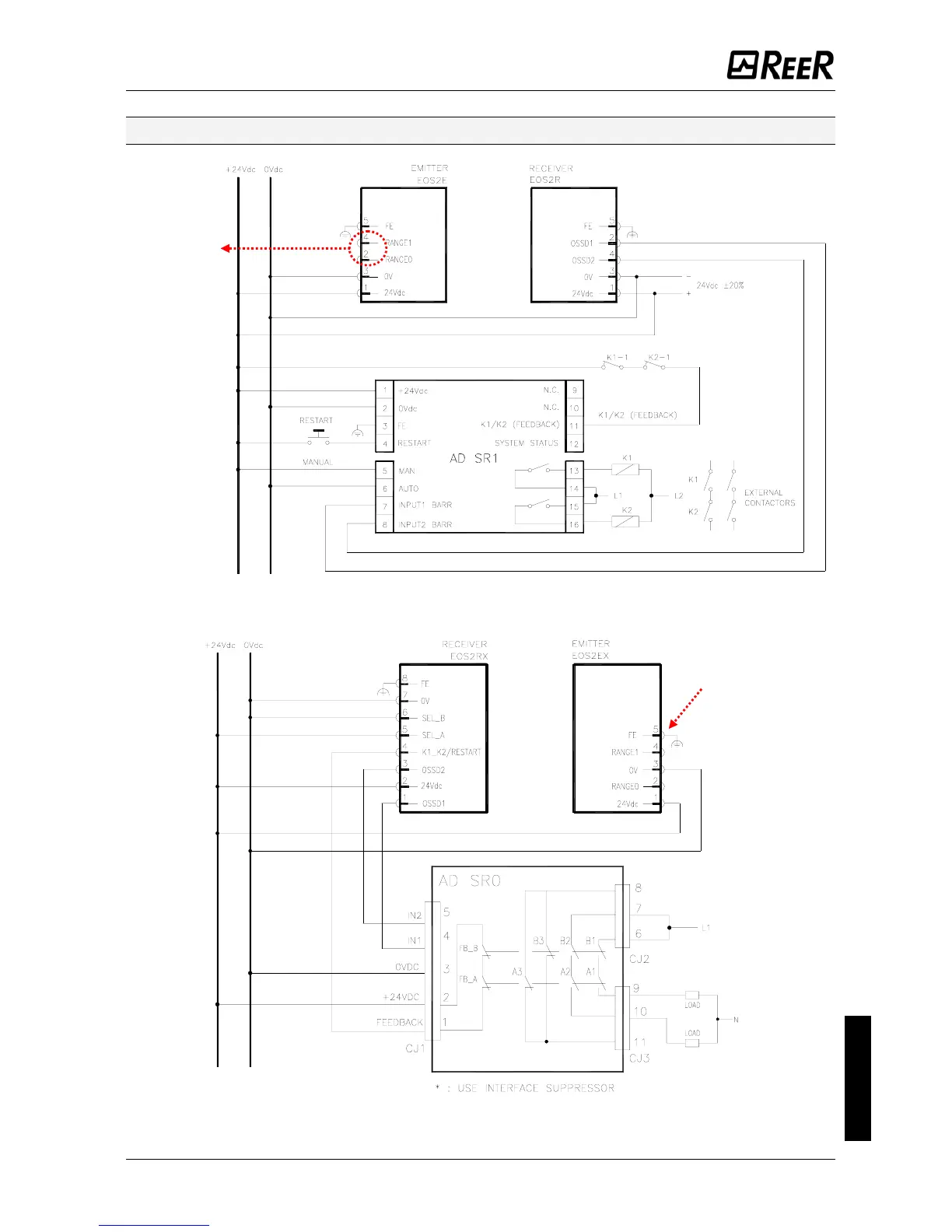

Examples of connection with REER safety modules
For correct operation
of the light curtain,
connect pins 2 and 4
of the Emitter as
indicated in Table 4.
Figure 21 - EOS2 A: Manual operation with AD SR1 module
For correct operation
of the light curtain,
connect pins 2 and 4
of the Emitter as
indicated in Table 4.
English
Figure 22 - EOS2 X: Automatic operation with AD SR0 module
8540738 • 2nd December 2009 • Rev.2 21
