06

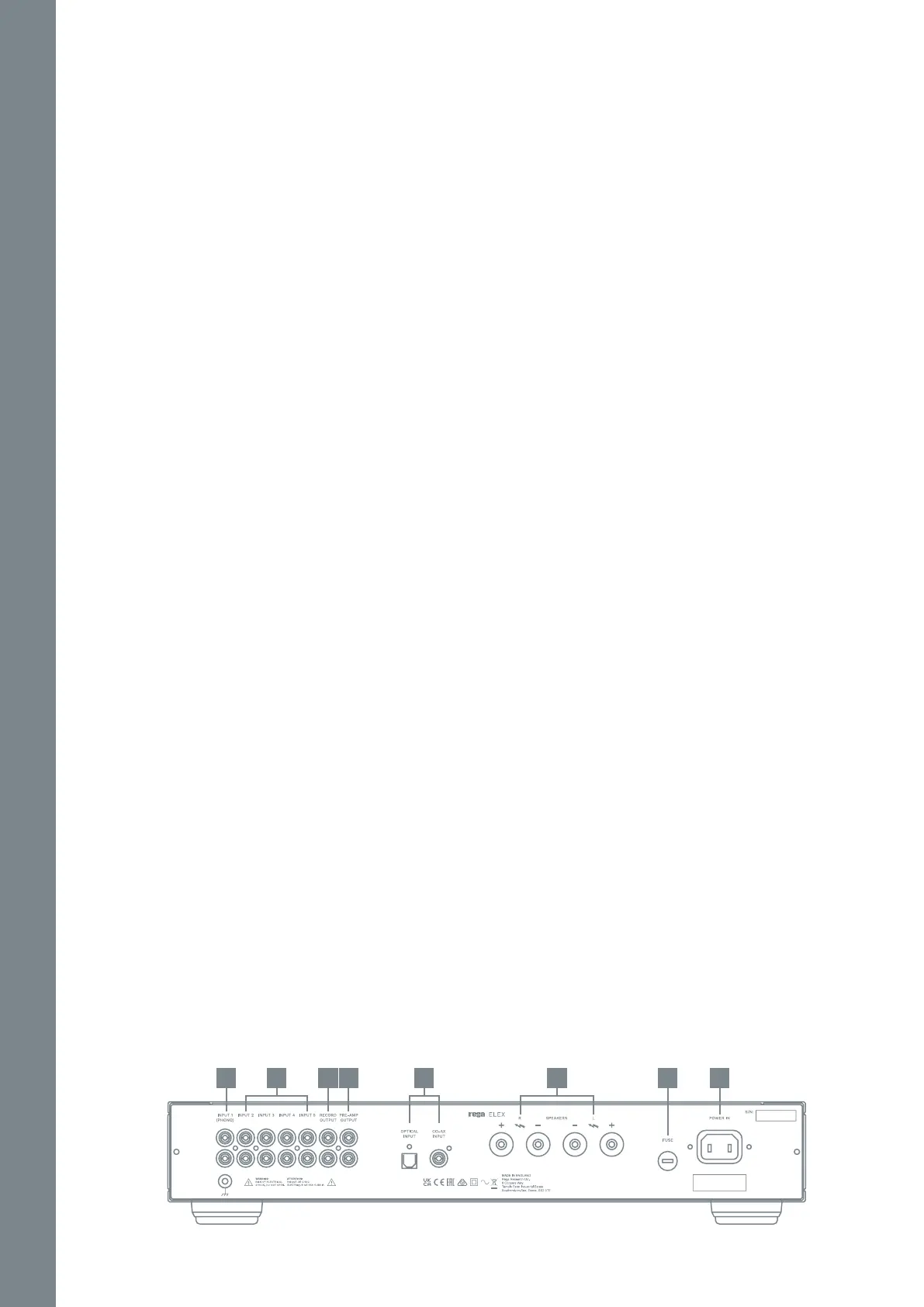

REAR PANEL CONNECTIVITY
1. Phono Input 1 - Enables connection of a turntable with a moving magnet cartridge. Loading will be suitable for most MM cartridge
designs on the market, and a dedicated grounding point is provided directly below the input sockets for tonearms with a separate ground
wire (not required for Rega tonearms).
2. Line Inputs 2 to 5 - The line inputs enable the connection of sources, such as a streamer, CD player, DAC, tuner, DVD or Blu-ray player
for use with an Audio-Visual system. These inputs are at standard line level and are suitable for any equipment with output at that level.
3. Record Output - This is a line level output intended for use with an auxiliary device such as a headphone amplier or recording device
such as a CD/DVD recorder, MD, tape cassette machine or sound card. Record Output is the same signal as selected by the main input
selector (analogue inputs 1-4 or digital inputs D1/D2) and is not aected by the volume control.
4. Pre-Amp Output - The pre-amplier can drive at least 5 power ampliers, sub bass units etc. The pre-amplier output uses RCA type
(phono) connectors. The output level is 625mV with a line input level and is always active.
5. Digital Inputs - These are S/PDIF digital inputs. Input D1 enables the co-ax input and D2 enables the Toslink input. All common input bit
depths and sample rates up to 24bit/192kHz are supported.
6. Speaker Terminals - These are intended for use with 4-16Ω speakers. Sustained use into speakers of less than 8Ω could make the unit
run warmer than normal.
7. Mains Fuse - See back panel for rating.
WARNING: Replace only with same type and rating.
8. Mains Power Inlet - Connect to mains supply. See ratings label beneath inlet for country specic voltage, current and frequency ratings.
WARNING: Only use product with a power supply that conforms to the ratings listed on the label.
CONNECTIVITY
1 2 3 4 5 6 7 8
