Slide propeller on shaft completely.
Place thrust washer on propeller shaft splines.
Shift the remote control into reverse with the key switch in
the off position.
Install and tighten the propeller nut to manufacturer
specifi cations.
Install keep on prop nut until aligned with cotter key hole.
Install cotter key and bend tabs over.

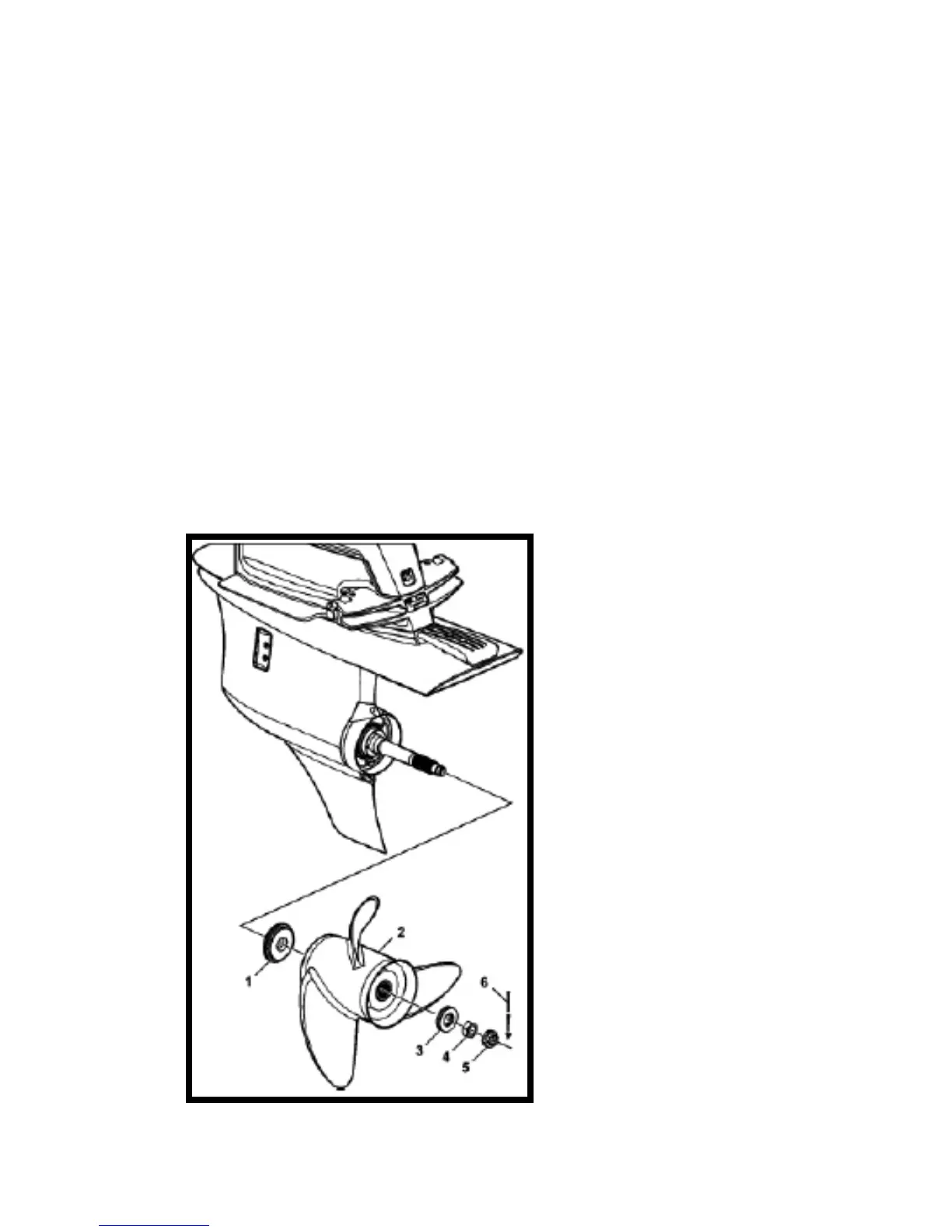

1) Thrust Bushing
2) Propeller
3) Thrust Washer
4) Propeller Nut
5) Keeper
6) Cotter Key
Typical Volvo SX Installation
7-23
