TYPICAL MERCURY PROPELLER INSTALLATION
To install a propeller on a mercury equipped propulsion package:
Coat the propeller shaft with the recommended marine
lubricant.
Place the forward thrust hub on the prop shaft with the
taper matching the taper on the propeller shaft.
Slide drive hub on, with the propeller installed over that.
Place the drive sleeve adapter in place
Place the tab washer on
Install locknut to manufacturer specifi cations.

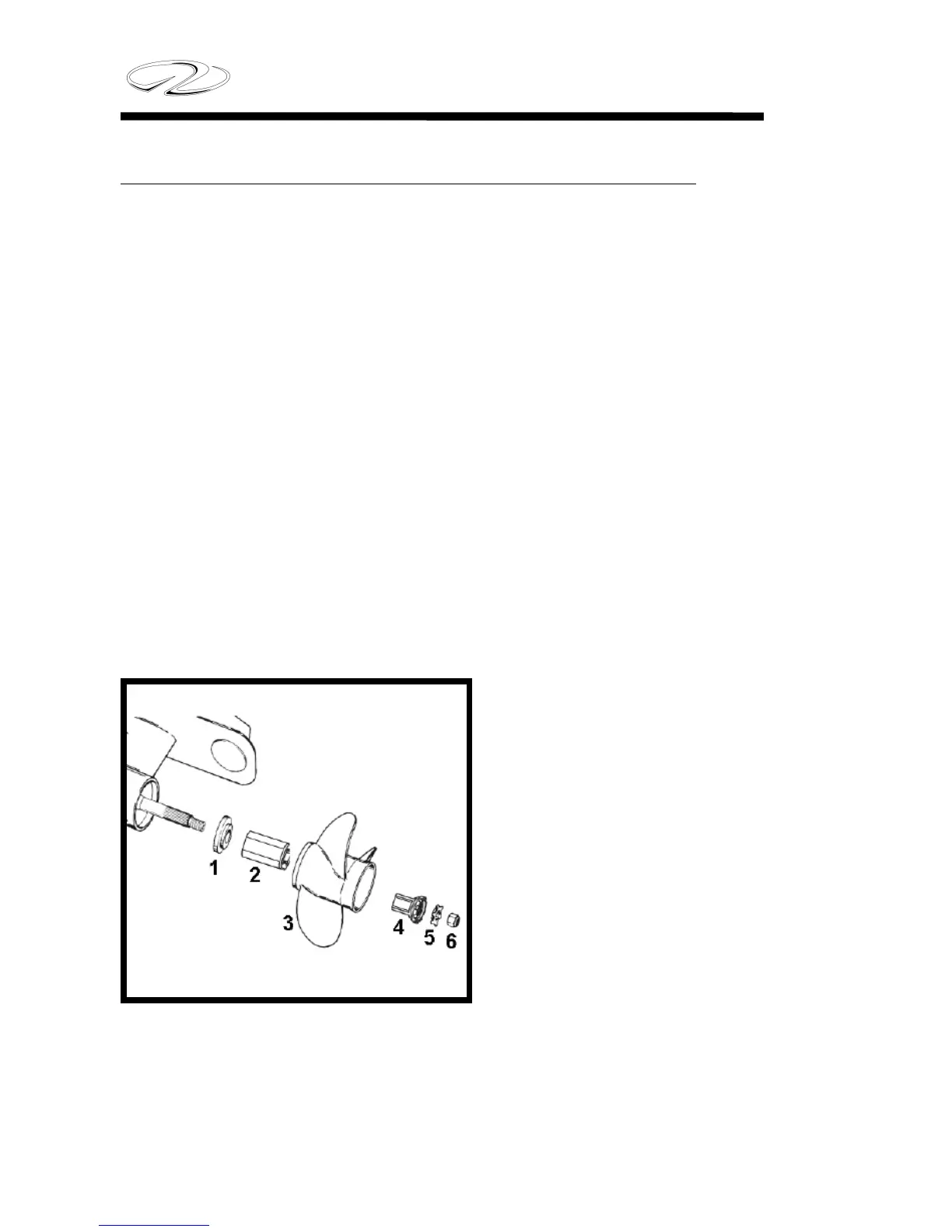

1) Forward Thrust Hub
2) Flo-Torque Drive Hub
3) Propeller
4) Drive Sleeve Adapter
5) Tab Washer
6) Locknut
Typical MerCruiser Alpha Drive Installation
