CHAPTER 3
3-16

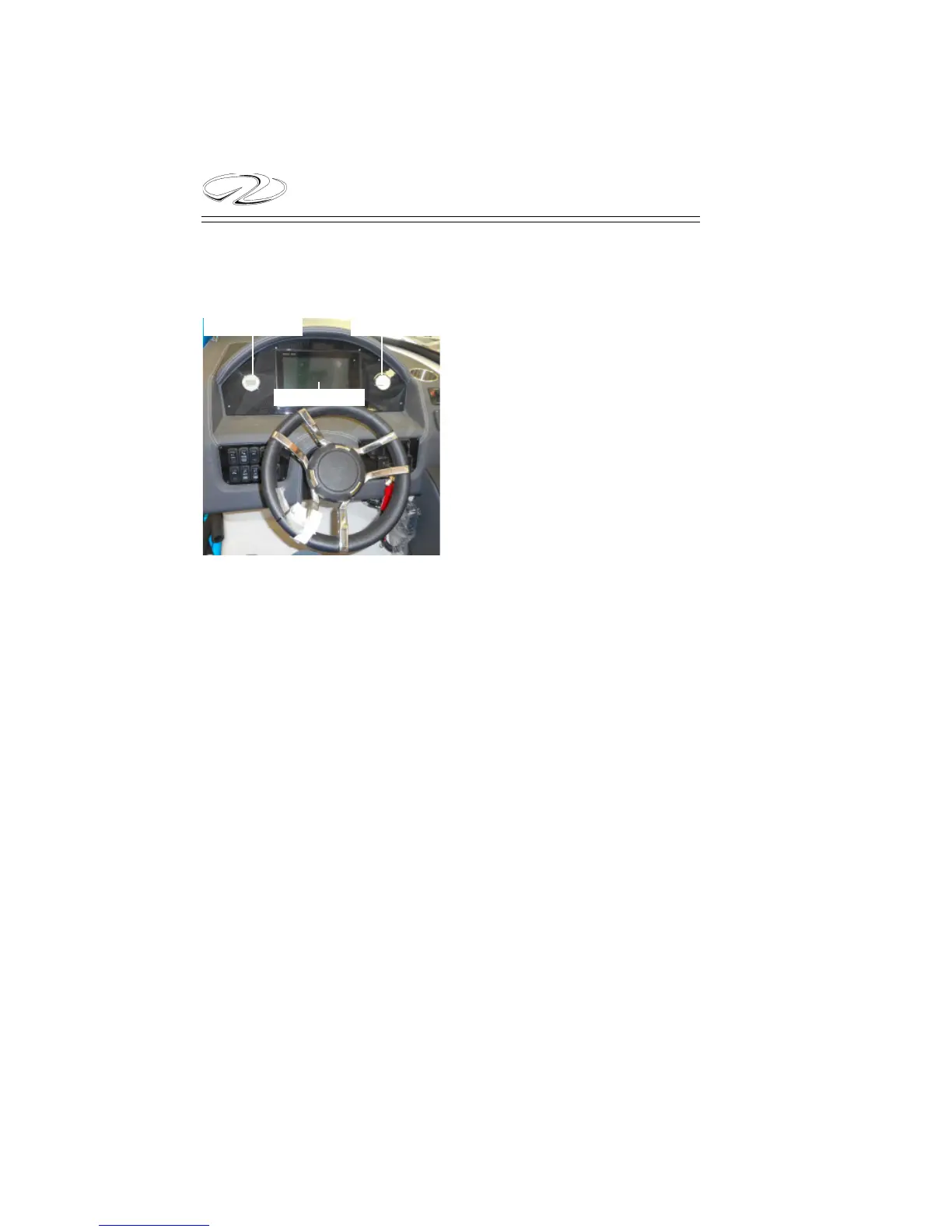

Depth Gauge
Fuel Gauge
Chartplotter
ENGINE INSTRUMENTATION
The helm station is equipped
with a fuel gauge and depth gauge
along with the ability to monitor
engine functions through the
Garmin chartplotter unit. Close
observation of the gauges may
save the engine from damage.
Gauges do however have some
inaccuracy, so do not rely upon
them fully.
Note that with the battery
switches in the “off ” position, there is no power to the dashboard,
and the ignition switch will not function properly.
All electrical features are protected by a main battery management
panel. A fuse for the stereo memory and the automatic bilge pump
system are also located next to the battery switch. There is also a
fuse block located on the engine. The dashboard switches also have
individual fuses normally located on two fuse blocks in the forward
starboard storage area directly in front of the helm. Should a fuse
“blow” it is fi rst necessary to fi gure out the reason and address the
cause before resetting it. See the drawing chapter for fuse identifi cation
information.
