LRI4E / HRI4E Direct Vent Gas Insert | 39
|
39
operating instructions

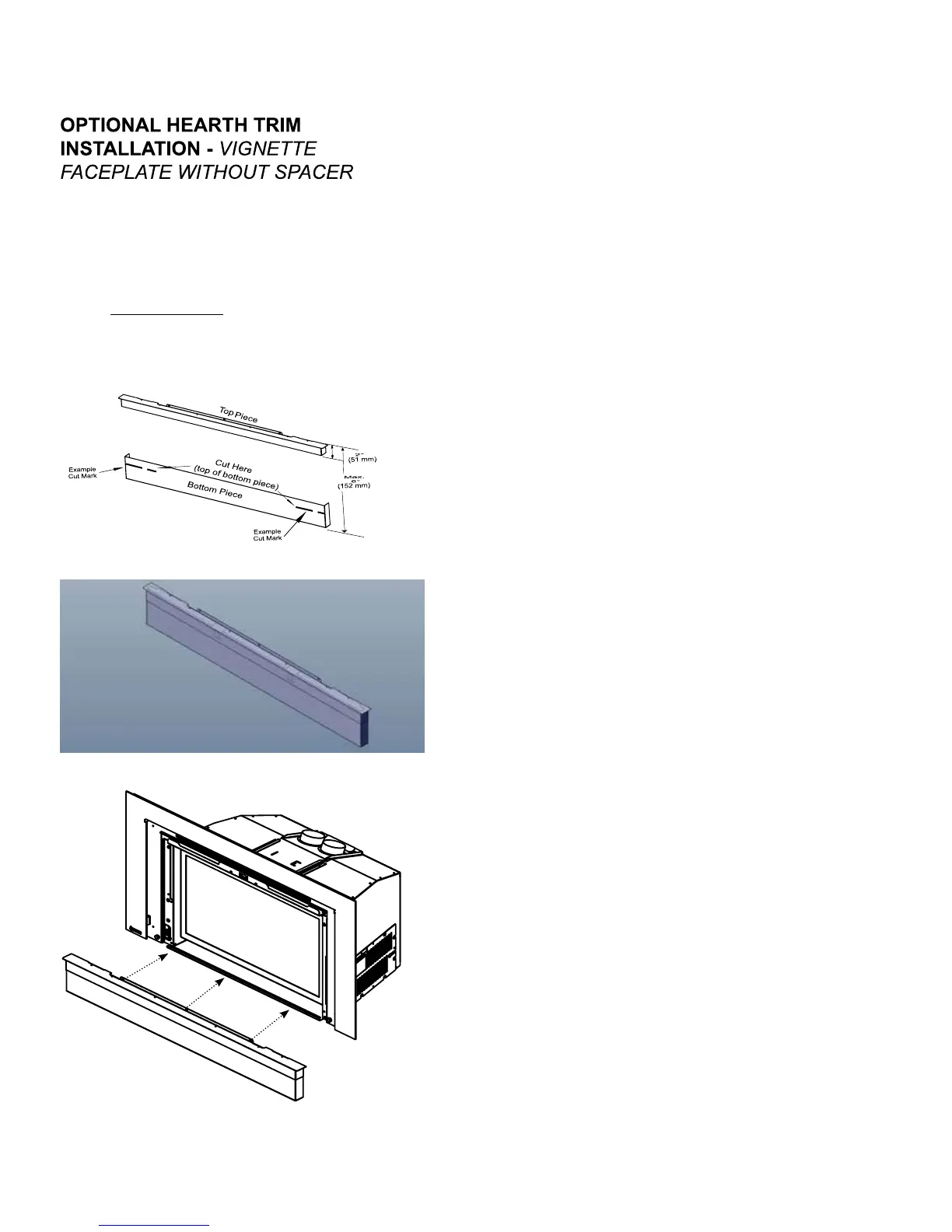

Customizing the Hearth Trim
The Hearth Trim can be adjusted to custom t an installation by pulling
apart the top piece from the bottom piece. Minimum height of the hearth
trim is 2” and can be adjusted upto maximum 6”.
1) Discard the spacer brackets, as these are not required when installing
the unit without spacer.
2. Cut the top of the bottom piece of the hearth trim to the appropriate
height using a metal cutting blade.
NOTE: The tab bends at the back of the top piece of the hearth trim
should be used as the measuring point to the hearth to measure the
height required.
4) Line up the hearth trim with base of the unit and secure it with 3 screws as
shown below.
3) Reattach the top piece of the hearth trim to the cut bottom piece by tting
in place.
