Installation 15
Chapter 3 Installation
General Connections
AC models with triac DO outputs

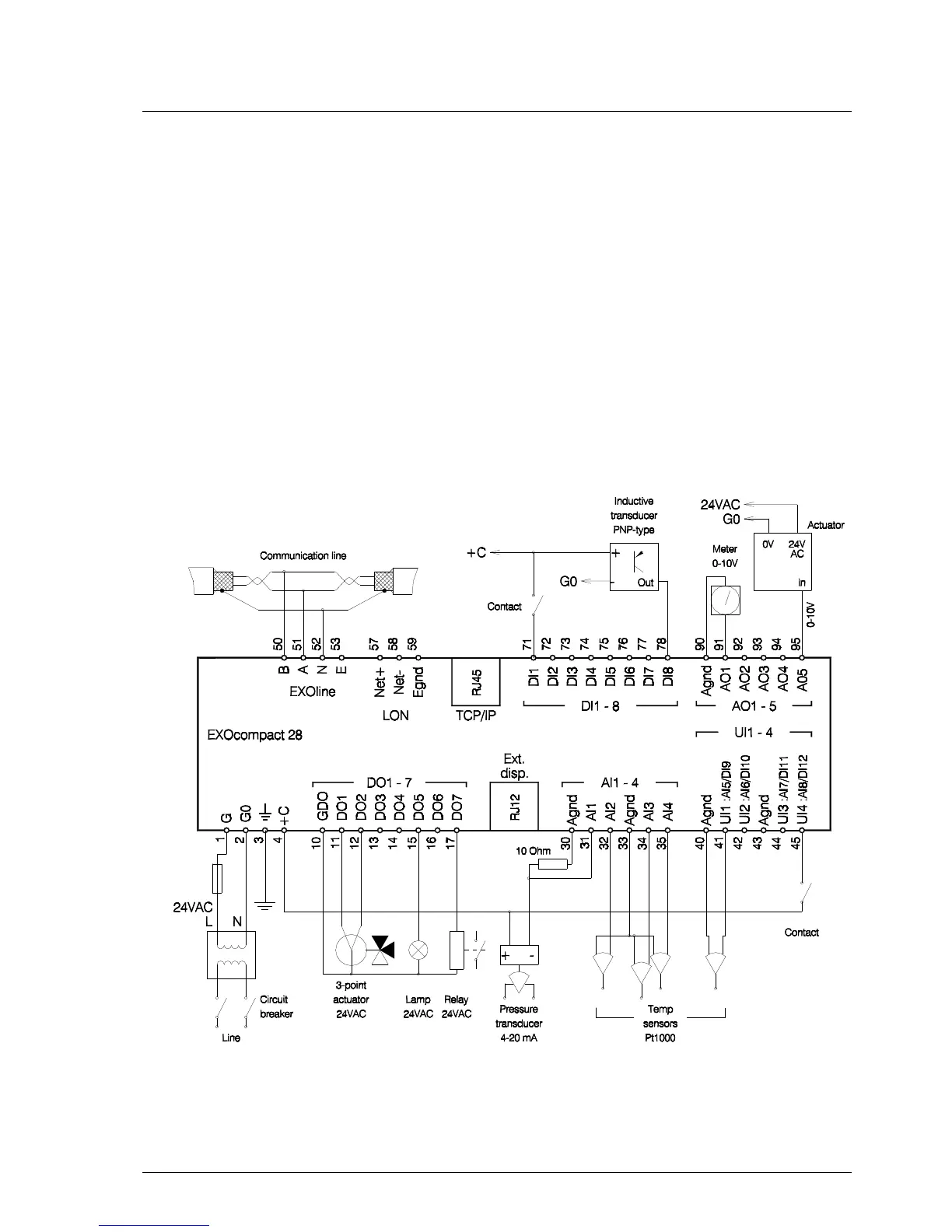

The general connections of the EXOcompact are illustrated in the figure below:
General Connections (EXOcompact C280)
