External Display, ED9100 27

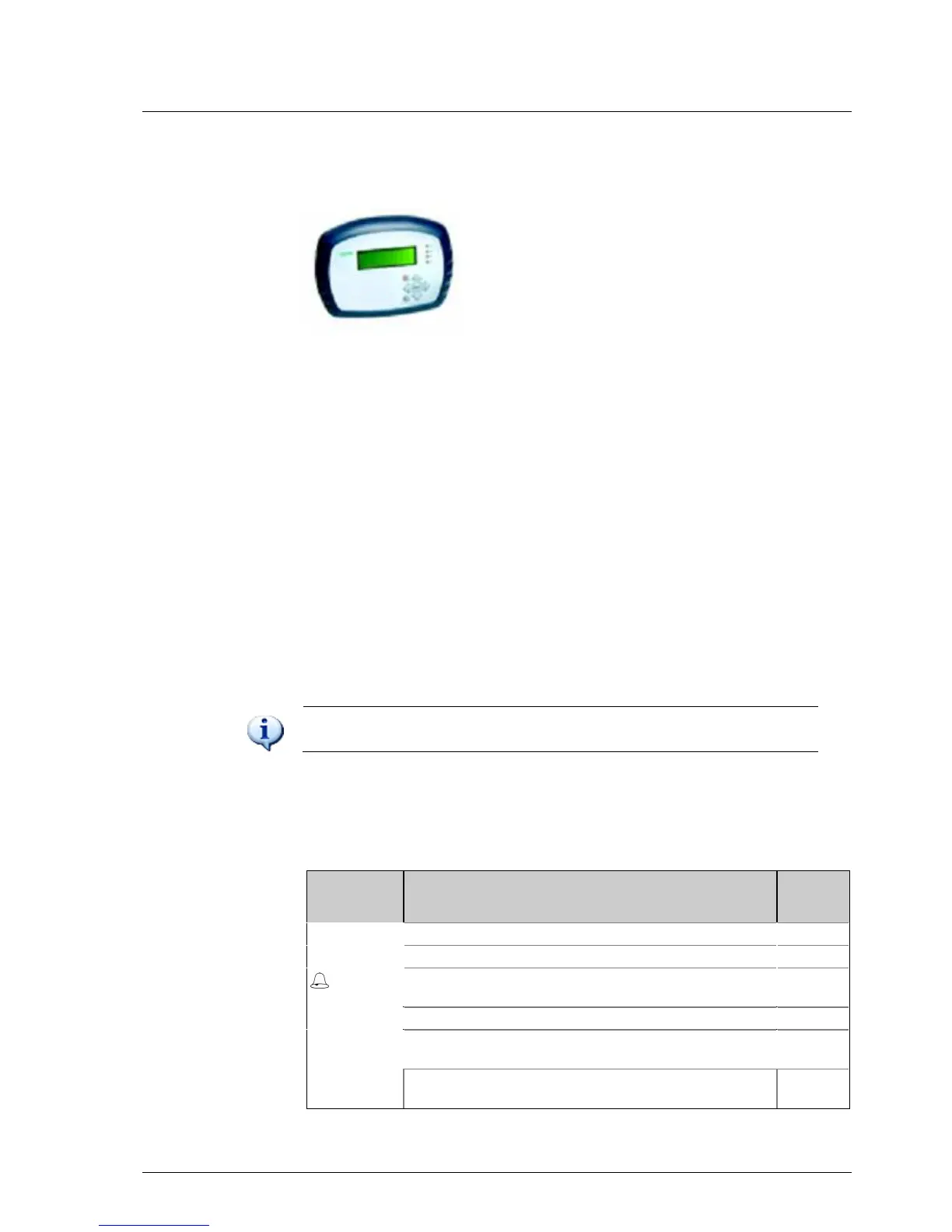

Chapter 6 External Display, ED9100
Functions
ED9100, external display, is a separate unit for display and configuration that can be
connected either to an EXOcompact or a Corrigo E.
The dialog window, which is an LCD-Display with background lighting, has 4*20
characters. The character set is European/Cyrillic.
Environmental resistant overlay with a keypad containing navigation and entry keys
with click feeling
Software controlled alarm LED and indication of communication and power supply.
Mounting can be made on panel or the like.
With a sealant kit, the sealing class will be IP65 when mounted on a panel or the like.
ED9100 is available in two variants: ED9100-3 is delivered with 3 m connection
cable, and ED9100-10 with 10 m connection cable.
ED9100 can not be connected to EXOflex. Use ED9200 if you wish to connect a
display to EXOflex.
Indications
The indication LEDs have the following functions:
Designation Function Color
P Power supply. Green
C Communication. Green
There is one or more unacknowledged alarm(s). Flashing
red
There is one or more remaining, acknowledged alarm(s). Fixed red
You are in a dialog box where it is possible to switch to
change mode.
Flashing
yellow
Change mode. Fixed
yellow
