INPUTS AND AUTOMATIC SWITCHING
12
The switching matrix in the TALAN provides for automatic switching and test measurement for
all of these possible combinations. Users can also specify only testing a single wire pair or the

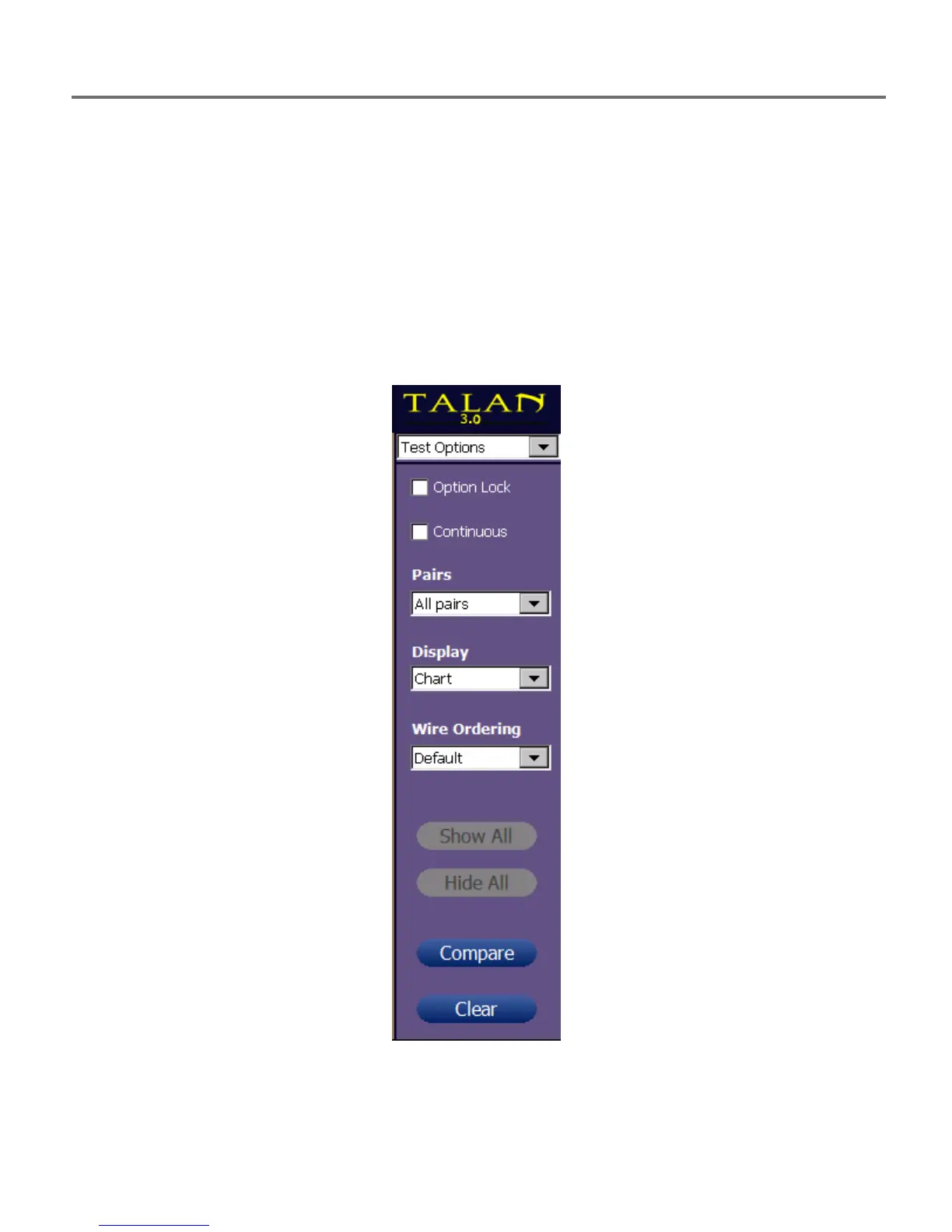

balanced pair combinations as described later in this manual. For most test functions press the
F4 (Options) button and select All Pairs, Balanced Pairs, or Single Pair.
Note: the Continuous function allows for repeated sequential testing of the selected
function and wire pair(s).
Note: the Option Lock function provides a way to maintain or ‘lock’ the current test
option settings while navigating between multiple manual tests and touch screen taps.
