REI TALAN 3.0 User Manual

MANUAL TEST FUNCTIONS
62
VoIP Plus+ (Advanced Detection and Analysis)
When the TALAN 3.0 Hardware is installed, the TALAN provides a VoIP Plus+ Analysis intended
to make detection of VoIP traffic easier and more reliable. To activate the VoIP Plus+ feature,
select VoIP Plus+ from the F3 (Manual) menu. If the TALAN 3.0 Hardware is not installed you
will see the following screen:

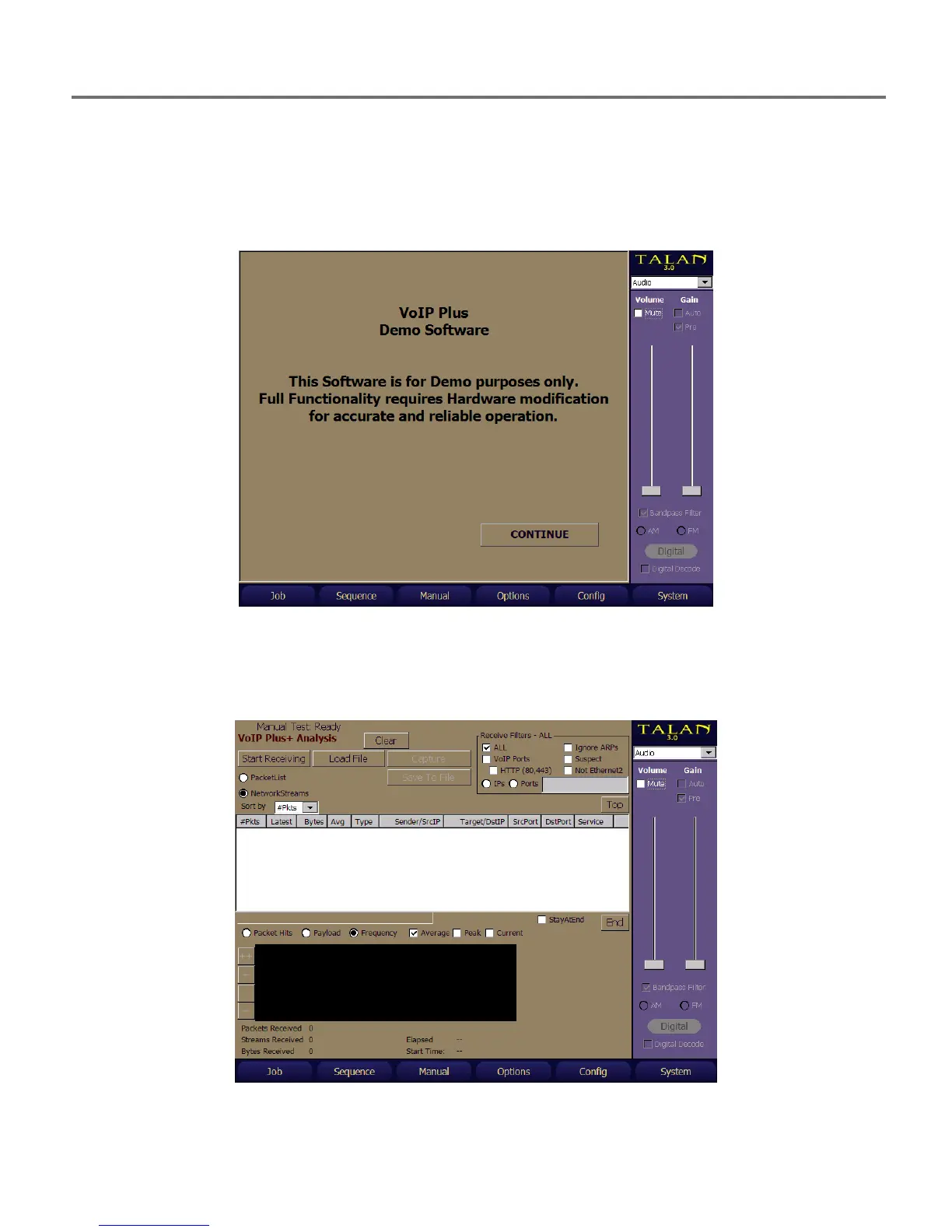

Selecting Continue permits the Control Interface to be displayed, but it is non-functional in that
it will not receive packets nor load and run files. The figure below shows the fully functional
TALAN VoIP Plus+ Control interface:.

REI TALAN 3.0 Specifications

Control System

primary computer	32 bit RISC processor, 520 MHz
internal memory	64 MB SDRAM (OS), 64 MB Flash
external memory	Compact Flash Type III, USB mass storage

Digital Multimeter

sample rate	500 msec
AC/DC volts	0 to 250V Maximum
AC/DC current	0 to 300mA Maximum
resistance	0 to 42MΩ
capacitance	50pF to 40µF

Power System

external input	15VDC @3A
universal power supply	100-240VAC, 50-60Hz
removable battery	Rechargeable Lithium ion, 4-hour runtime

Mechanical

dimensions	10.0 in x 12.9 in x 2.7 in (25.4 cm x 32.8 cm x 6.9 cm)
weight with battery	6 lbs (2.7 kg)
case dimensions	5.4 in x 14.9 in x 19.5 in (13.7 cm x 37.8 cm x 49.5 cm)
loaded case weight	19.0 lbs (7.1 kg)
operating temperature	0°C to +50°C

Harmonic Locator Probe

operational frequency	225 kHz & 450 kHz
antenna type	Balanced Loopstick
headphone audio output	16Ω, 105dB SPL limited
battery	9V Alkaline
run-time	10 hours average, 22 hours (headphones)
size	17.5 in x 1.5 in (44.45 cm x 3.8 cm) stored, 63.75 in x 1.5 in (162 cm x 3.8 cm) fully extended
weight	1 lbs (.5 kg)
