REI TALAN 3.0 User Manual

MANUAL TEST FUNCTIONS
34
Save Data to a Target Example
Saving data so that it is associated with a target means that the data will get placed into the
Sequence Data for a target within a given Job database. This data can be accessed in the
Sequence Data section of TALAN Data Viewer.
The Sequence Data section presents the data in a tree representation starting with the main
top level location, through the various sub-locations, ending up at a given target.
To save data so that it will be associated with a Target, that specific target and its respective Job
Database must be open.

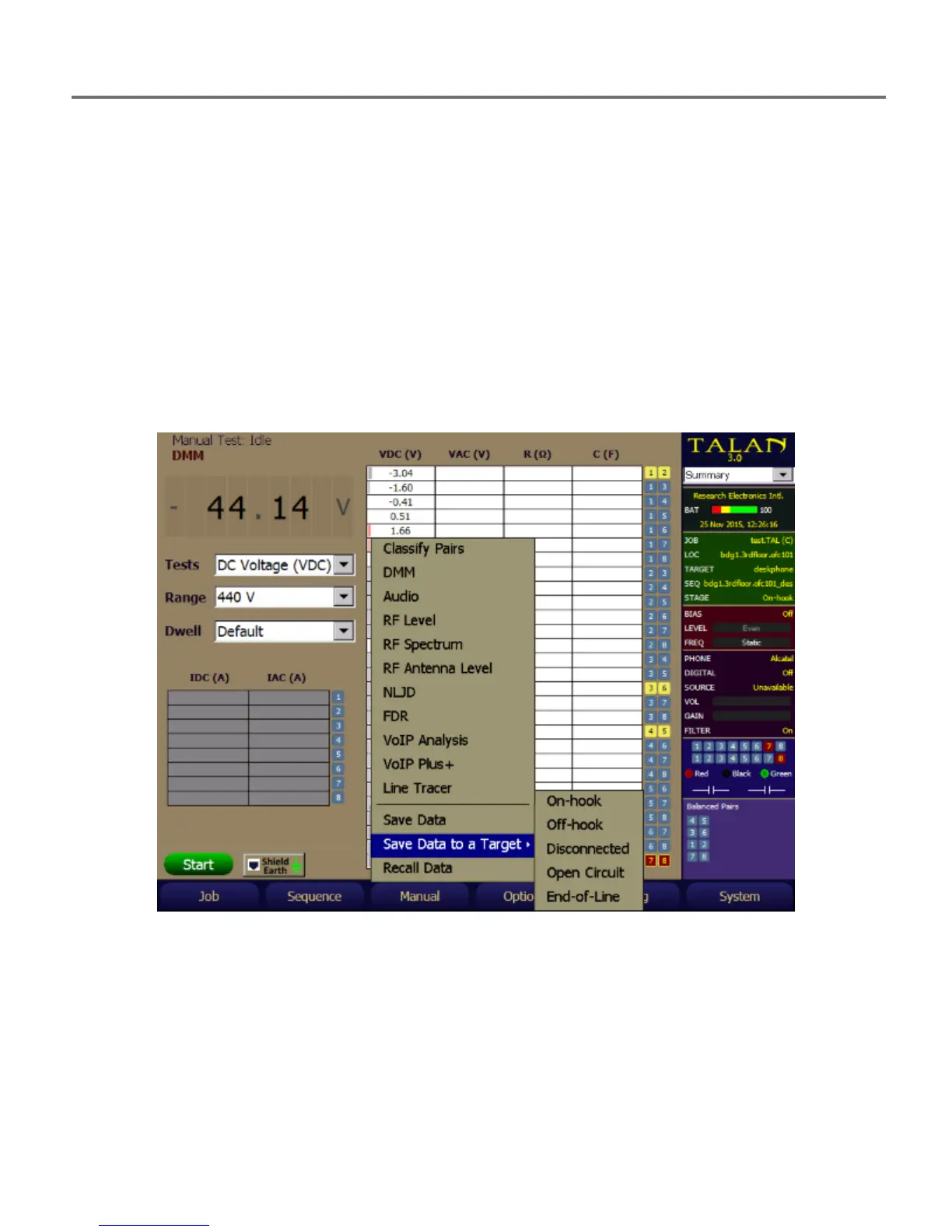

To save the DC Voltage measurements taken in the Manual DMM test, select F3 (Manual) then
select Save Data to a Target.
Select the stage for this test, e.g. On-Hook, Off-Hook, Disconnected, etc. for the appropriate
test type and physical setup. Note: This list of stages varies depending upon the test type
(DMM, Audio, etc.) and the stage selected.

REI TALAN 3.0 Specifications

Control System

primary computer	32 bit RISC processor, 520 MHz
internal memory	64 MB SDRAM (OS), 64 MB Flash
external memory	Compact Flash Type III, USB mass storage

Digital Multimeter

sample rate	500 msec
AC/DC volts	0 to 250V Maximum
AC/DC current	0 to 300mA Maximum
resistance	0 to 42MΩ
capacitance	50pF to 40µF

Power System

external input	15VDC @3A
universal power supply	100-240VAC, 50-60Hz
removable battery	Rechargeable Lithium ion, 4-hour runtime

Mechanical

dimensions	10.0 in x 12.9 in x 2.7 in (25.4 cm x 32.8 cm x 6.9 cm)
weight with battery	6 lbs (2.7 kg)
case dimensions	5.4 in x 14.9 in x 19.5 in (13.7 cm x 37.8 cm x 49.5 cm)
loaded case weight	19.0 lbs (7.1 kg)
operating temperature	0°C to +50°C

Harmonic Locator Probe

operational frequency	225 kHz & 450 kHz
antenna type	Balanced Loopstick
headphone audio output	16Ω, 105dB SPL limited
battery	9V Alkaline
run-time	10 hours average, 22 hours (headphones)
size	17.5 in x 1.5 in (44.45 cm x 3.8 cm) stored, 63.75 in x 1.5 in (162 cm x 3.8 cm) fully extended
weight	1 lbs (.5 kg)
