TEST DATABASE MANAGEMENT
15

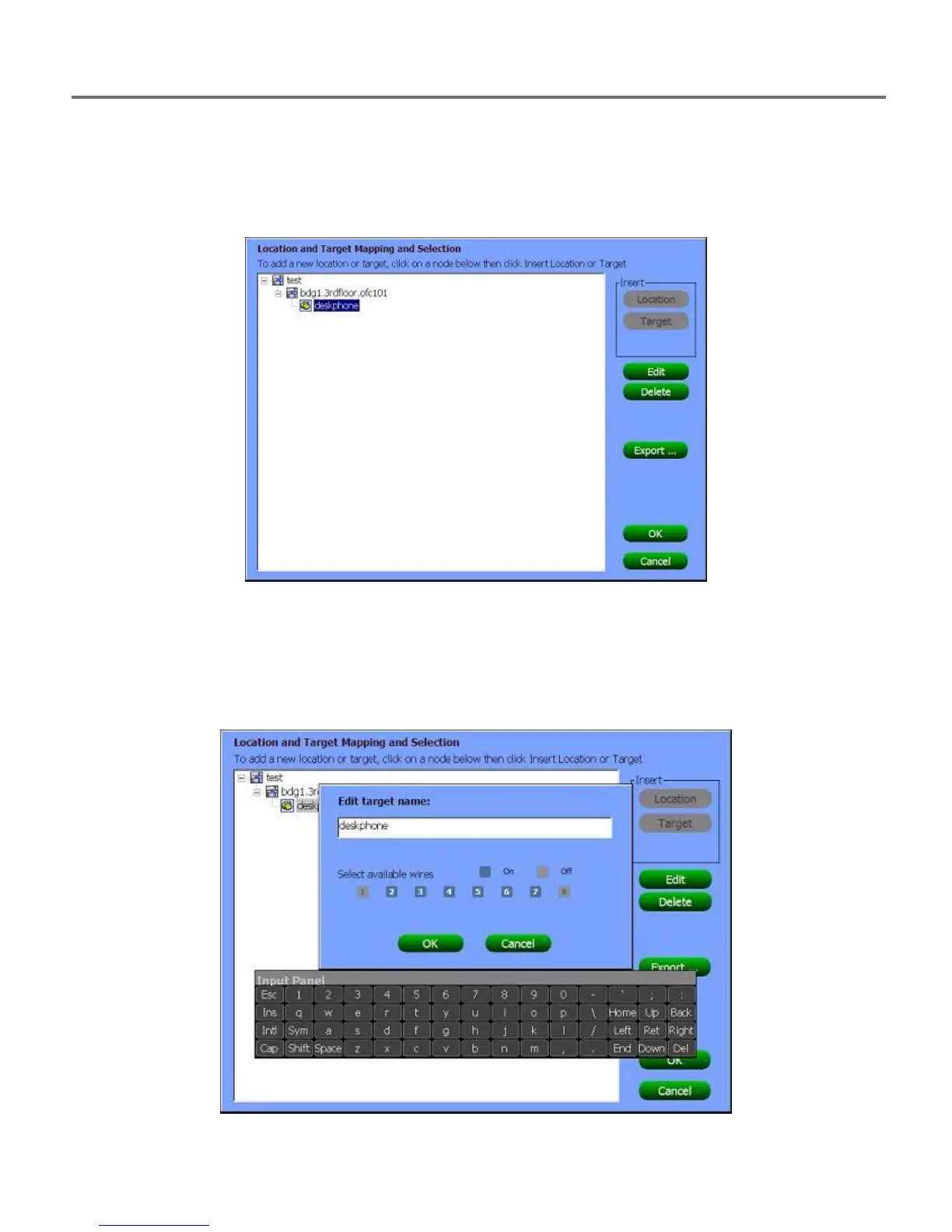

You will also notice Targets and Locations under the Job menu. This selection is used to define
additional information about the particular target being tested. Locations will be used to
identify specific locations (address, building number, building floor, office number etc.) within a
Job. Target will be used to identify a specific target (phone set, network access point, etc.) to
analyze within a location.
Available Wires define how many wires are used in the phone cord. A maximum of 8
conductors may be in a phone cord and the conducting pairs should always be defined from the
center outward. For example, a 2-wire system should be defined with 4 and 5 selected and all
unused pairs de-selected. If a 4-conductor phone cord is used, then the 1, 2, 7, and 8 should be
de-selected. The example below shows a typical 6 wire system setup.
