TESTING CONCEPTS AND RECOMMENDED TEST SEQUENCE
25
If a test combination other than BLOCK, PHONE, or ALL is desired, then the TEST TYPE pair /
wire selections can be set using the CUSTOM button.

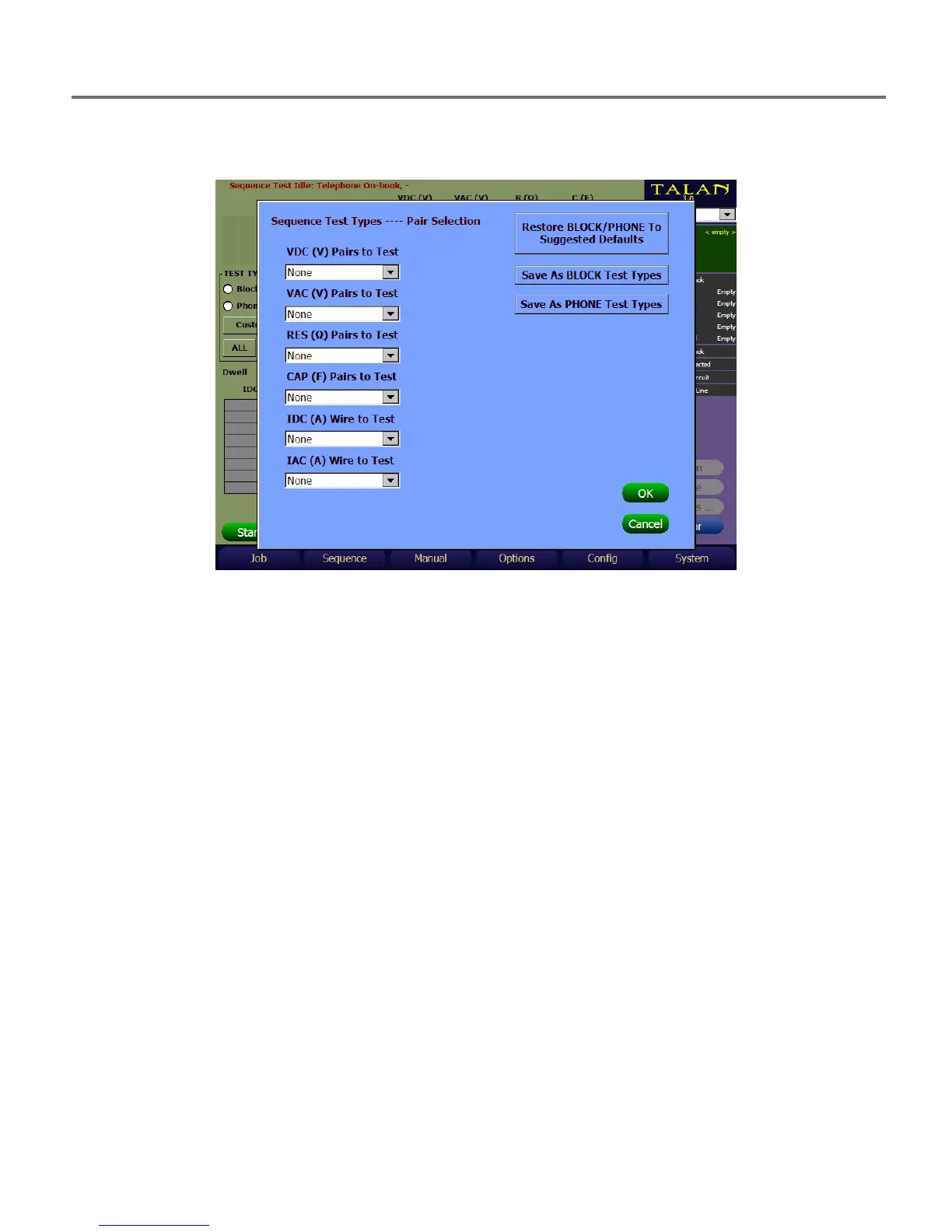

Using the above shown display, each individual TEST TYPE can be modified to the desired
setting.
VDC, VAC, RES and CAP TEST TYPEs options are:
None This test type will not be performed on any pairs
Balanced For all balanced pairs where each wire in the pair is available, this test
will be performed.
All Pairs For all pairs available for this location, if each wire is available, then this
test will be performed.
IDC and IAC TEST TYPEs options are:
None This test type will not be performed on any wires
All Wires For all wires identified as available for this location, this test will be
performed.
When you have made the changes to the set of tests you want to run, select OK to exit the TEST
TYPE selection screen, which will save your changes for this test run, then select START to run
the test type configuration you have just defined. The TALAN will automatically progress
through the different TEST TYPEs using the settings you defined.
While on the TEST TYPE pair / wire selection screen, pressing Cancel will exit the TEST TYPE pair
/ wire selection screen and cancel type selections you have made in this session of the Test
Type selection screen.
