Doc ID: 191-7913A
3. Separate the OE slave cylinder from the clutch fluid line.
4. Remove and discard the 2 OE crush washers.

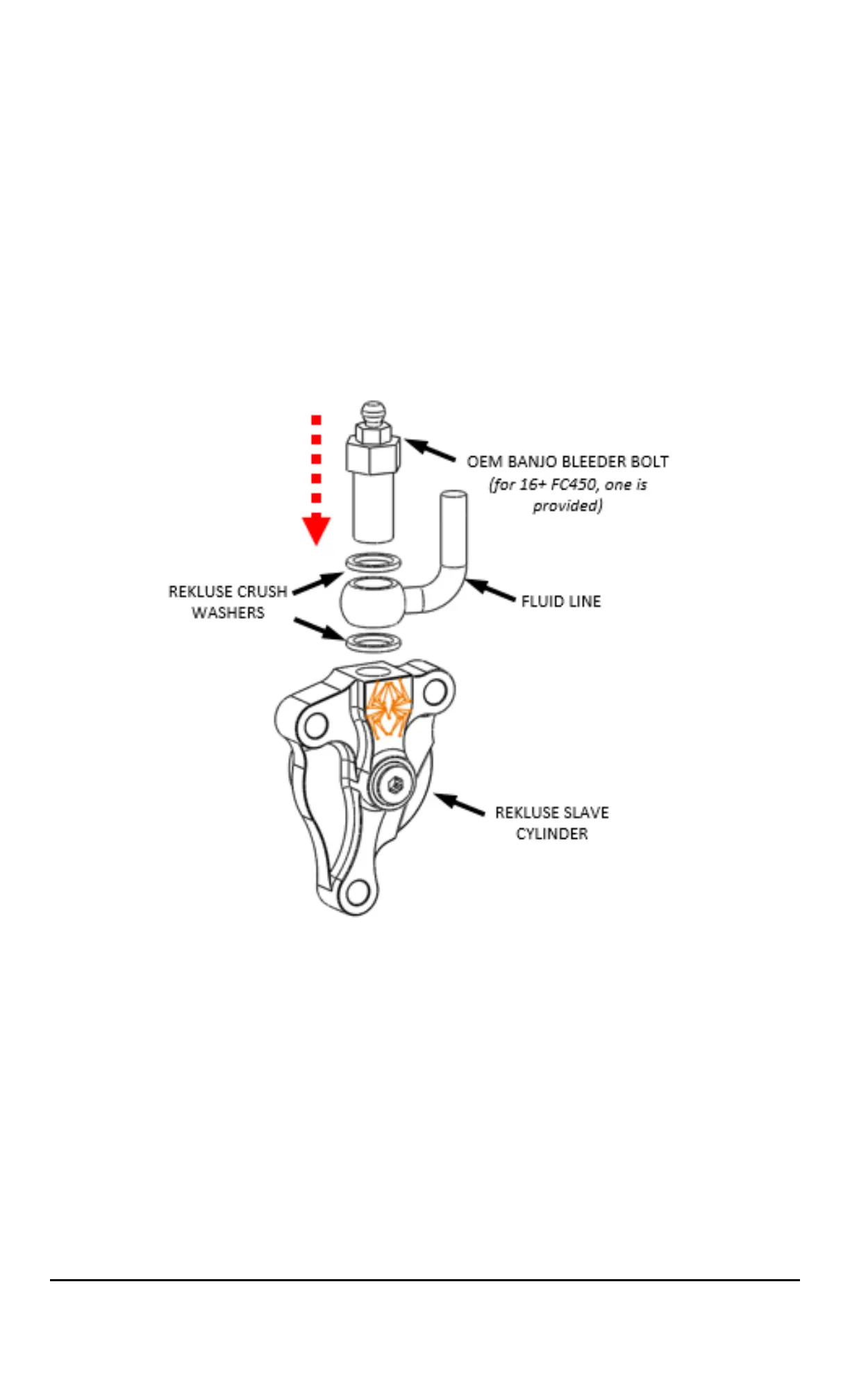

5. Attach the clutch fluid line to the Rekluse slave cylinder
using the OE banjo bleeder bolt and the 2 crush washers
from Rekluse. Make sure the clutch fluid line is between
the 2 crush washers.
6. Tighten the banjo bolt with your hand until snug. (You will
torque it to spec once installed on the bike.)
