Doc ID: 191-7913A
7. With the clutch fluid line attached to the Rekluse slave
cylinder, remove the OE slave cylinder from the engine.
Keep the OE bolts for reuse.

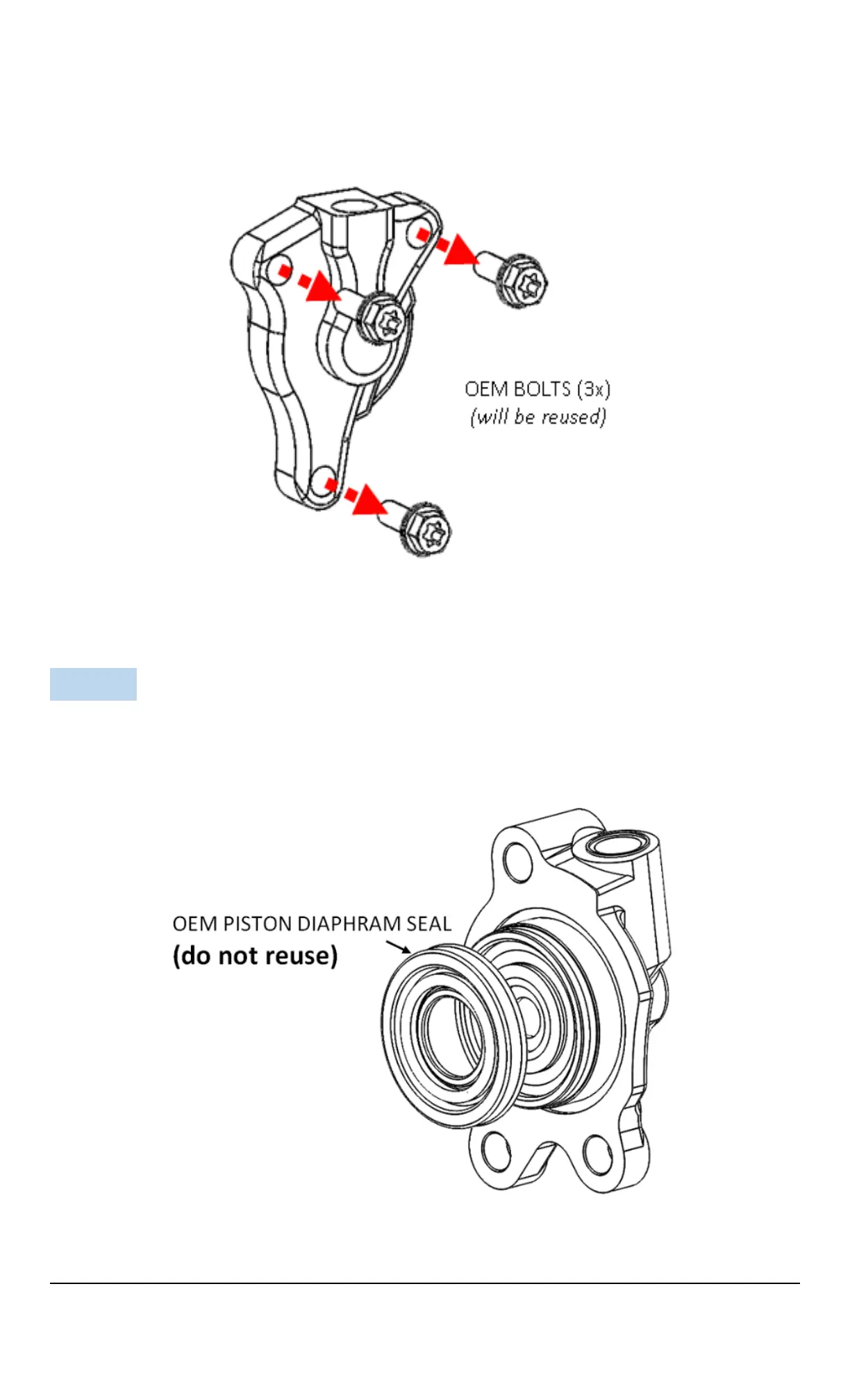

8. Mount the Rekluse slave cylinder to the engine using the
OE bolts.
NOTE: Some models have a piston diaphragm seal. DO
NOT reuse them if OE equipped. The Rekluse slave cylinder
does not require a diaphragm seal.
