Baud options are 9600, 19200, 38400, and 76800.
The BACnet Network # field value is assigned to devices connected to the MS/TP-Net and
is automatically generated if the Default System Network Numbers field is enabled in the
Home dialog box. Manually entered values must be between 1–65,534 and must be
unique across the BACnet Internetwork. To provide more flexibility for BACnet
communications, the BACnet Advanced button allows the following communication
parameters to be set in the MS/TP-Net Advanced Settings dialog box.

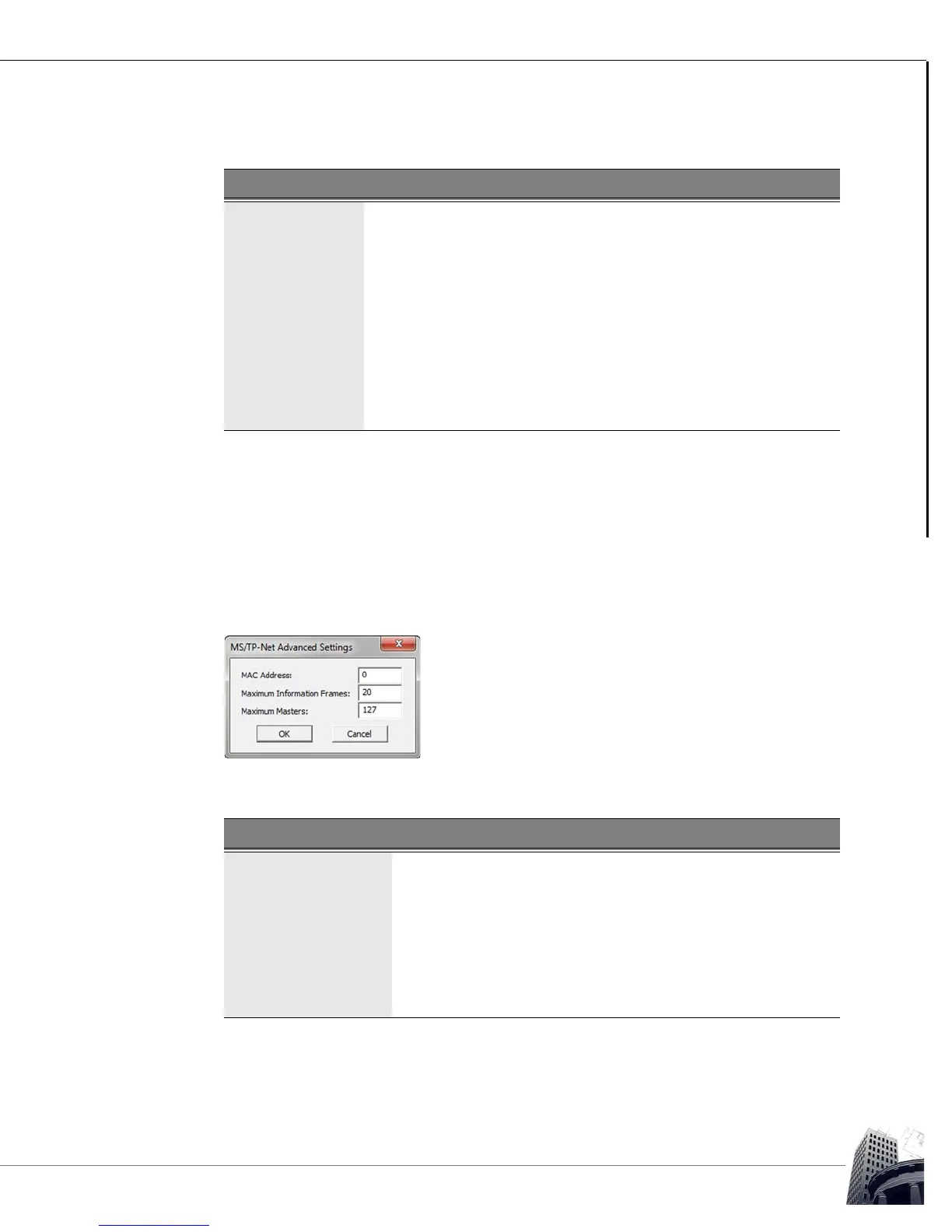

FIGURE 36: MS/TP-NET ADVANCED SETTINGS DIALOG BOX
TABLE 7: MS/TP-NET PROTOCOLS
Protocol Description
BACnet/Main Enables the connection of up to 126 BACnet Master devices or
200 BACnet Slave device.
BACnet/Sub A Enables the connection of up to 126 BACnet Master devices or
200 BACnet Slave devices.
Modbus Master MACH-Pro(Web)Com can be configured as the master of up to
128 Modbus-RTU slave devices.
Modbus Slave MACH-ProCom can be configured as a Modbus-RTU slave.
Disabled Select Disabled if the MS/TP-Net port will not be used. All
communications through the MS/TP-Net port will be disabled.
TABLE 8: MS/TP ADVANCED SETTINGS DIALOG BOX FIELDS
Field Description
MAC Address The Media Access Control address on the MS/TP network. If
the MS/TP-Net port is configured as a BACnet subnetwork,
the MAC address will default to 0.
Maximum
Information Frames
The maximum number of packets the controller can send
each time it receives the token (defaults to 20).
Maximum Masters The maximum address of an MS/TP master allowed on the
network (defaults to 127).
