AUX-NET
The Protocol field can be set to I/O-Net, BACnet Main, BACnet Sub A, BACnet Sub B,
Modbus Master, Modbus Slave, or Disabled.

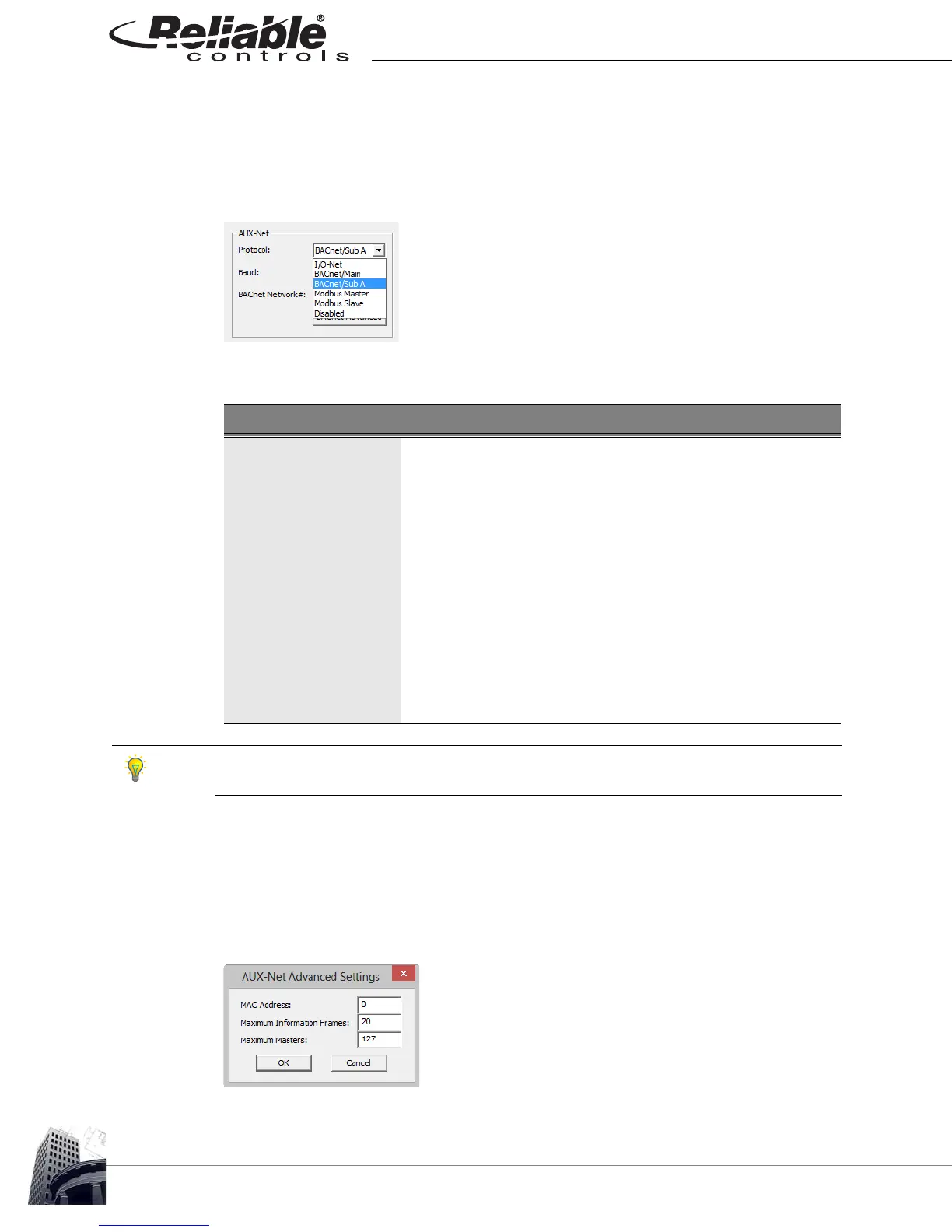

FIGURE 37: AUX-NET PROTOCOL DROPDOWN LIST
If the AUX-Net port will not be used, it should be disabled. Baud options are 9600, 19200,
38400, and 76800. The BACnet Network # field value is assigned to devices connected to
the AUX-Net and is automatically generated if the Default System Network Numbers field
is enabled in the Home dialog box. Manually entered values must be between 1–65,534
and must be unique across the BACnet Internetwork. To provide more flexibility for BACnet
communications, the BACnet Advanced button allows the following communication
parameters to be set in the AUX-Net Advanced Settings dialog box.
FIGURE 38: AUX-NET ADVANCED SETTINGS DIALOG BOX
TABLE 9: AUX-NET PROTOCOLS
Protocol Description
I/O-Net
Enables the connection of MACH-ProPoint
expansion
modules. Further configuration details for I/O-Net are listed
below.
BACnet Main/Sub A/
Sub B
Enables the connection of up to 126 BACnet Master devices
or 200 BACnet Slave device.
Modbus Master MACH-Pro(Web)Com is the master for up to 128 Modbus
RTU slave devices. If MS/TP-Net is configured as a Modbus
Master, this option is not available for AUX-Net.
Modbus Slave MACH-Pro(Web)Com can be configured as a Modbus-RTU
slave.
Disabled Select Disabled if the AUX-Net port will not be used. All
communications through the AUX-Net port will be disabled.
The BACnet Sub A option only appears if the MS/TP-Net port is not configured as BACnet
Sub A.
