I/O-NET
If the AUX-Net port is configured to support I/O-Net, further configuration of the number
and type of expansion modules is required.
TO CONFIGURE I/O-NET
TABLE 10: AUX-NET ADVANCED SETTINGS DIALOG BOX FIELDS
Field Description
MAC Address The Media Access Control address on the MS/TP network. If
the MS/TP-Net port is configured as a BACnet subnetwork,
the MAC address will default to zero.
Maximum
Information Frames
The maximum number of packets the controller can send
each time it receives the token (defaults to 20).
Maximum Masters The maximum address for an MS/TP master allowed on the
network (defaults to 127).
1 With the protocol field in the AUX-Net group set to I/O-Net, click the I/O-Net
Configuration button at the bottom left of the AUX-Net group to open the I/O-Net
Configuration dialog box.

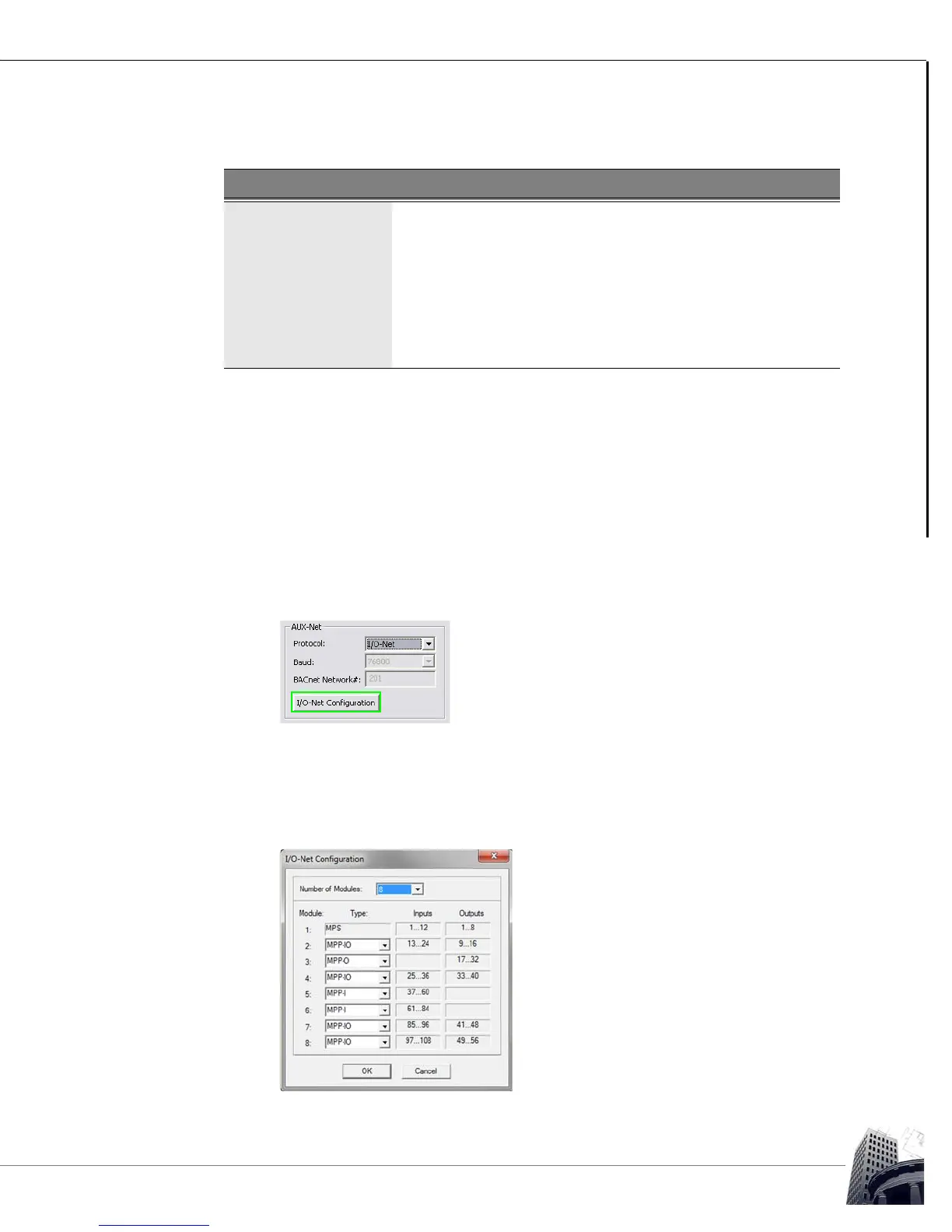

FIGURE 39: I/O-NET CONFIGURATION BUTTON
2 Use the drop down menu to select the number of expansion modules that will
be connected to the MACH-Pro(Web)Com controller. If more expansion
modules are wired than are configured in the I/O-Net Configuration dialog box,
the extra modules will be offline.
FIGURE 40: I/O-NET CONFIGURATION DIALOG BOX

Reliable Controls MACH-ProCom Specifications

General

Brand	Reliable Controls
Model	MACH-ProCom
Category	Controller
Language	English
