Control (HMI-SG)
Time Schedule Compilation Procedure
1) Press the Program (T3) button to enter the time schedule
configuration menu for each day of the week.
B HMI SG displays the first day of the week, i.e. Monday. Up to
6 time windows ((1-1 to 1-6) can be set for each day.
3) e Mode (T8) button enables you to select a day by cycling
through the week days (1-2-3-4-5-6-7-A). e "A" option is used
to set the time schedule for business days (1 – 5) simultane-
ously. If you make any change to the "A" time schedule, the
settings of the "A" day will be copied to all business days.
4) e Power (T1) button is used to assign the selected time
window with an operating mode (Stop-Economy-Comfort).
5) e Fan (T7) button is used to set the fan operation speed
stage (st. 1 – st. 5).
6) e Minus (T4) and Plus (T5) buttons are used to set the
beginning of the time window; to confirm the time setting,
press the OK (T6) button.
7) Once the beginning of the time window has been set, move
to the next settings in the time window.
8) If you set the beginning of the time window to "--:--", the
window will be disabled.
9) Press and hold the OK (T6) button to go back one step in
the time schedule settings within the set time.
10) Press and hold the Fan (T7) button to go back one step in
the time schedule settings within the fan speed stage settings.
11) Press and hold the Mode (T8) button to move one step
back (a weekday selection).
12) Press the Program (T3) or Presence (T2) button to exit
the Time Schedule Settings menu.
13) If no settings are performed in the time schedule within
1 minute, the menu will be automatically le..
time window
fan speed
stage setting
(T7)
operating mode
setup (T1)
time setup
(T4), (T5)

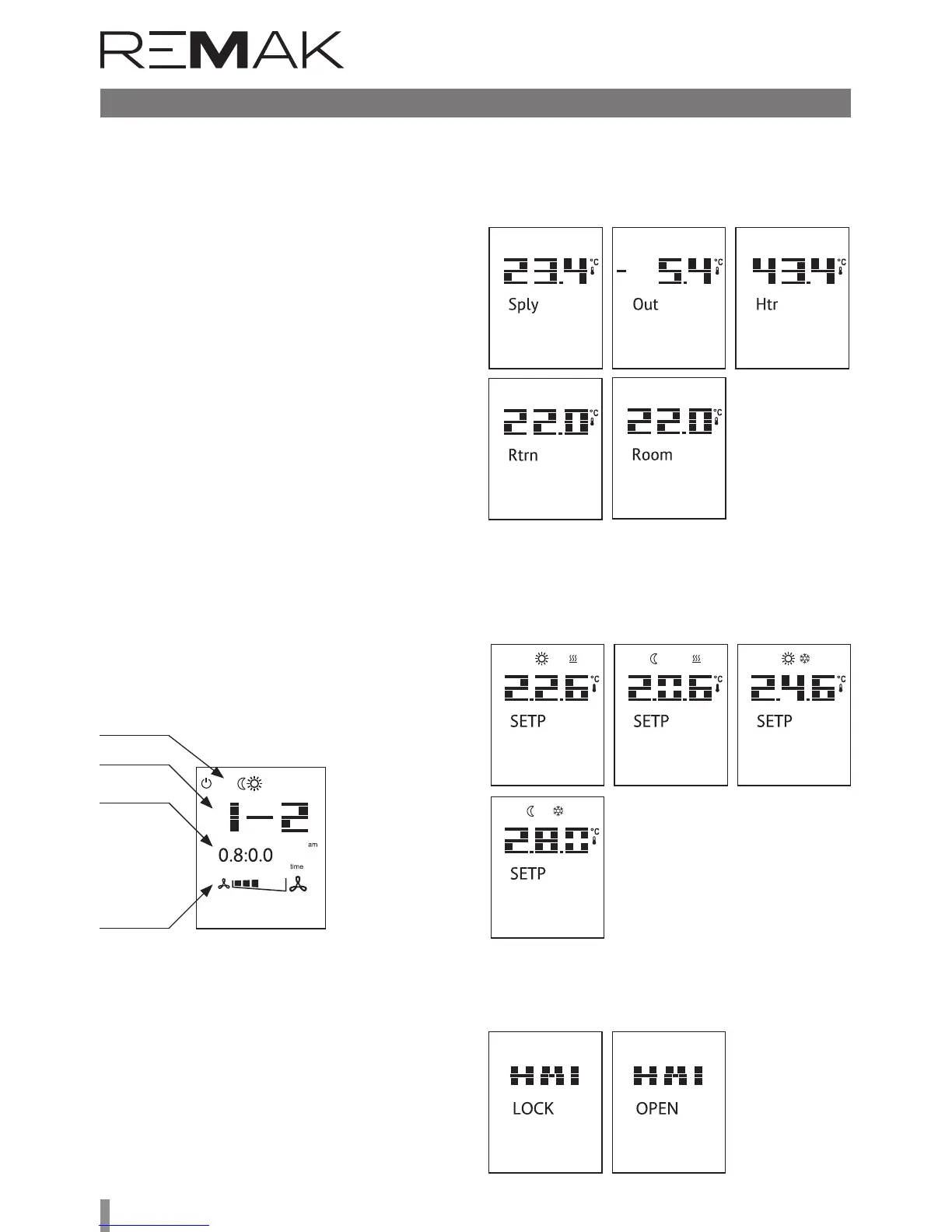

Quick Menu:
is enables quick access to the temperature and selected
value monitoring without editing.
Use the Minus (T4) and Plus (T5) to switch between the
temperature values.
Use the Program (T3) or Presence (T2) buttons to exit the
Quick Menu. Only those values which are included within the
given version of the VCS unit are displayed.
Briefly press the OK (T6) button to display the values listed
below:
n Inlet temperature (Sply)
n Outdoor temperature (Out)
Press and hold the OK (T6) button to display the values
listed below:
n Comfort temperature mode (heating)
n Economy temperature mode (heating)
n Comfort temperature mode (cooling)
n Economy temperature mode (cooling)
Lock/Unlock the SG II buttons
Press and hold the Presence (T2) button to lock/unlock the
SG II controller in order to prevent unauthorised access to
the device control.
n Return water temperature (Htr)
n Outlet temperature (Rtrn)
n Room temperature (Room)
