Control units VCS

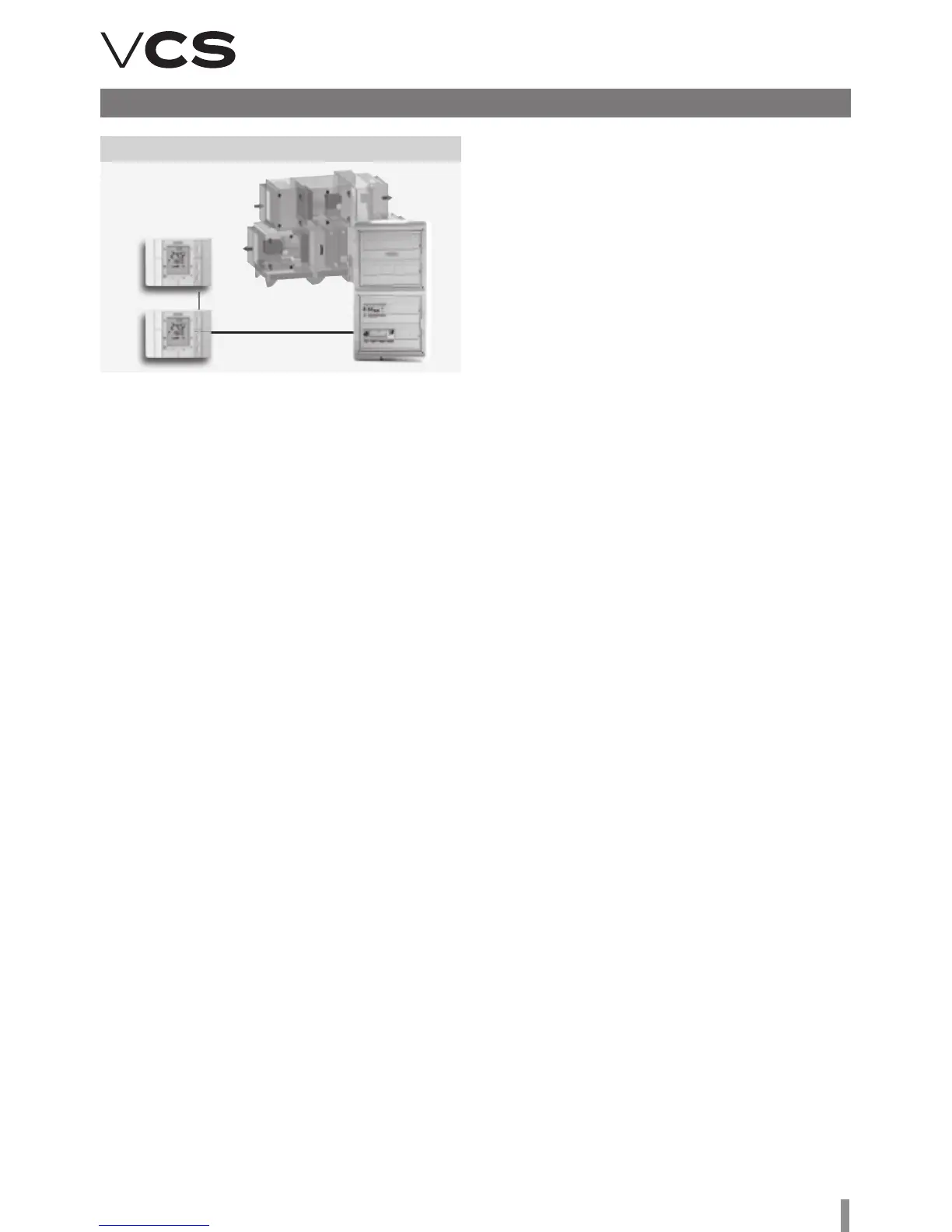

Figure 8 – Example of access to the unit
max. 700 m
HMI-SG
Documentation
Control Unit Designation
e control unit designation is always created by a unique
code (generated by the AeroCAD design program for the
control unit calculation and design), which is only included
in the accompanying technical documentation (not on the
control unit), and by the serial number (for communication
with the manufacturer).
Documentation
VCS control systems can be installed and used only in accord-
ance with the delivered documentation.
Documentation List
n Product Installation and Operating Instructions
n Control system confi guration (summary of connected
components), terminal diagram and list of recommend-
ed cables – device printout from the AeroCAD design
program
Additional – General Documentation
e system or device documentation also includes the oper-
ating and inspection documentation kept during the device
service life and the Service Regulations, for which the user
is responsible.
Service Regulations
Before putting the air-handling device into permanent opera-
tion, the device user in collaboration with the designer, or the
supplier, must issue service regulations in accordance with
local regulations.
We recommend including the following in these service
regulations:
n Air-handling device assembly confi guration, its intend-
ed use and a description of its operation in all operating
modes
n Description of all safety and protective elements and
their functions
n Summary of the health protection principles, safety and
operating rules to be observed when operating the air-
handling equipment
n List of requirements for operating staff qualifi cations and
training, nomenclature list of personnel authorized to op-
erate the air-handling device
n Detailed emergency and accident instructions to be fol-
lowed by the operating staff
n Operating particularities in diff erent climatic conditions
(e.g. summer or winter operation)
n Inspection, checking and maintenance schedule, includ-
ing a list of checking steps, and their recording
Documentation Availability
e documentation delivered with the control system (original)
and operating documentation must be permanently available
for the operating and service staff and stored near the air-
handling equipment. e Installation and Operating Instructions
are also available at the website: https://www.remak.eu
Warning
e manufacturer reserves the right to make changes and
amend the documentation due to technical innovations and
changes to legislation without prior notice. Information on
changes and updates are always available at the website
https://www.remak.eu
Safety Measures
n VCS control units are manufactured in accordance with
valid regulations and technical standards.
n VCS control units must be installed and used only in ac-
cordance with this documentation.
n Any damage caused by improper use contrary to this
documentation is the responsibility of the subject who
failed to observe the instructions included in this docu-
mentation.
n When handling, installing, wiring, commissioning, repair-
ing or servicing the air-handling units, it is necessary to
observe valid safety rules, standards and generally recog-
nized technical rules.
n In particular, it is necessary to use suitable tools and per-
sonal protective work aids (e.g. gloves) because of sharp
edges and corners, respectively voltage, when perform-
ing any handling, installing, dismounting, repairing or
checking.
n Any changes or modifi cations to individual components
of the VCS control unit which could aff ect its safe and
proper functioning are forbidden.
n e air-handling equipment confi guration and documen-
tation must not be changed without the prior consent of
the manufacturer.
n e VCS control units, including their individual
parts, are not intended, due to their concept, for di-
rect sale to end customers. Each installation must be
performed in accordance with a professional project cre-
ated by a qualifi ed designer who is responsible for the
proper selection of equipment concerning its suitability
for the given application.
n All connections of the equipment, including the VCS con-
trol unit, to the power mains must be performed in ac-
cordance with applicable local wiring standards and reg-
ulations.
n Wiring installation, commissioning, maintenance and re-
pairs may only be performed by a specialized assembly
company, respectively an authorized person duly quali-
fi ed in accordance with generally valid regulations.
n Before installing and using the air-handling units, it
is necessary to familiarize yourself with and observe
the directions and recommendations included in the
following chapters.
