REMKO ML Series - Unit Dimensions

2.2 Unit dimensions
Outdoor units
B
C
D
A
E

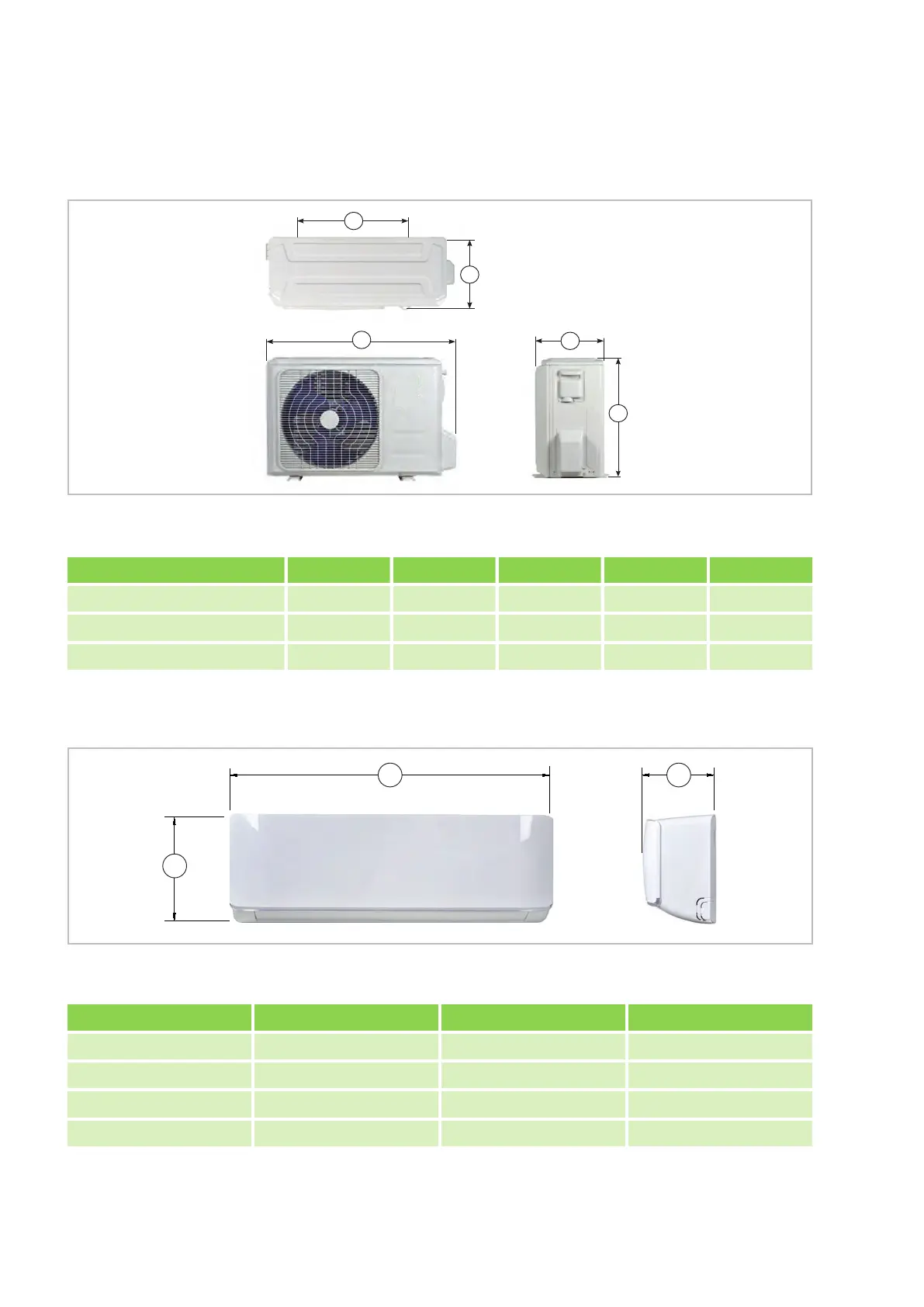

Fig. 1: Outdoor unit ML 265 DC-685 DC AT dimensions
Measurements (mm) A B C D E
ML 265 DC-355 DC AT 770 487 298 555 300
ML 525 DC AT 800 514 340 554 333
ML 685 DC AT 845 540 350 702 363
Indoor units
B
A
C
Fig. 2: Indoor unit dimensions ML 265 DC-685 DC IT(All measurements in mm)
Measurements (mm) A B C
ML 265 DC IT 290 722 187
ML 355 DC IT 297 802 189
ML 525 DC IT 319 965 215
ML 685 DC IT 335 1080 226
We reserve the right to modify the dimensions and design as part of the ongoing technical development
process.
