REMKO ML Series - Wall Bracket

5.6 Wall bracket
A B
C
D
G
F
E
H

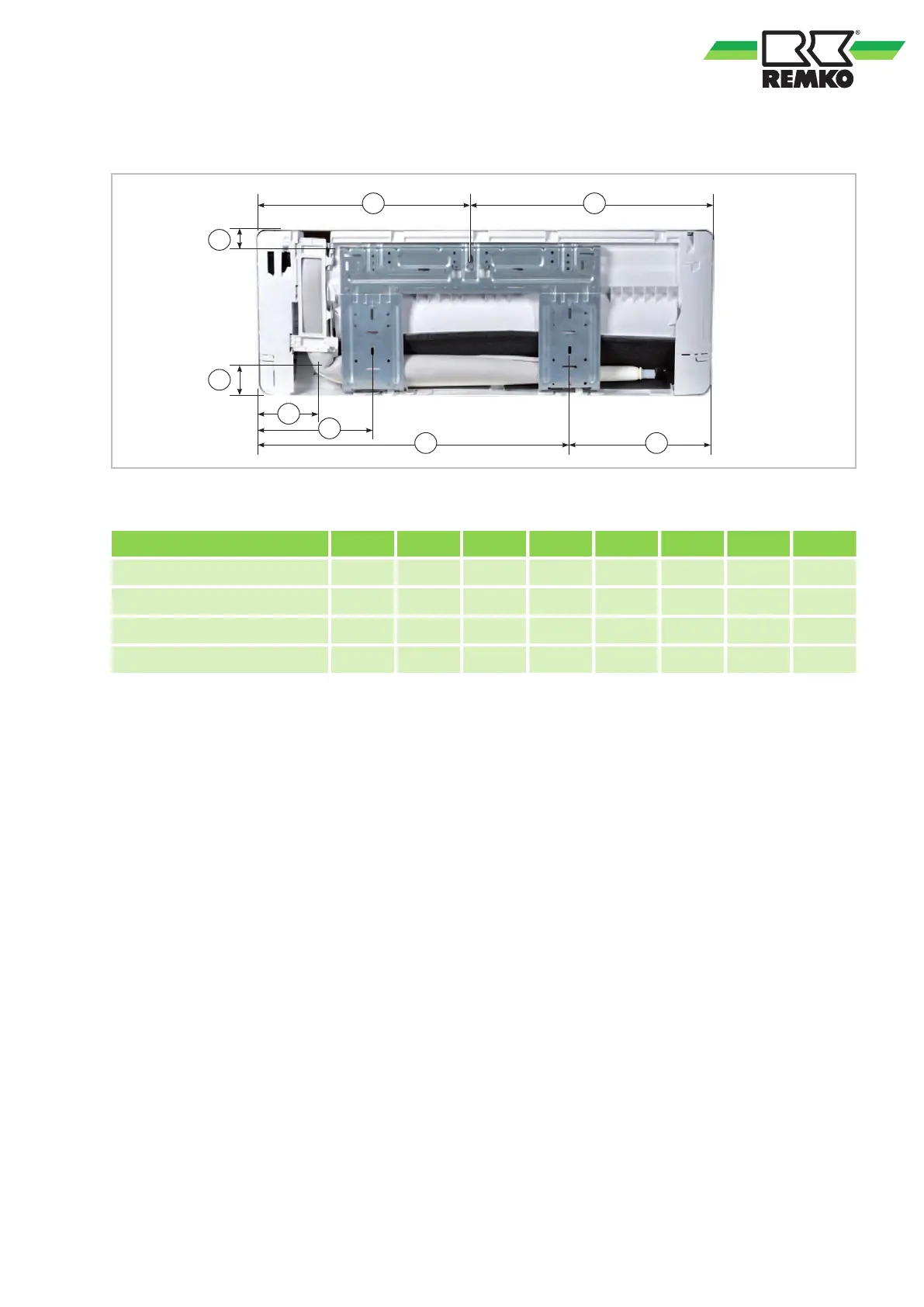

Fig. 25: Wall bracket for indoor units ML 265 DC-685 DC IT (rear view)
Measurements (mm) A B C D E F G H
ML 265 DC IT 372 350 37 50 100 197 542 180
ML 355 DC IT 375 427 43 44 111 204 545 257
ML 525 DC IT 543 423 53 55 111 135 821 144
ML 685 DC IT 527 553 53.5 47 44 219 780 300
