REMKO ML Series - Page 35

Connection of optional condensate pump KP 6/KP 8
L N PE
L N PE
L
N
WH
BK
PE
A
B
C
1
2
3
W 1(L) 2(N) S
PE
W 1(L) 2(N) S

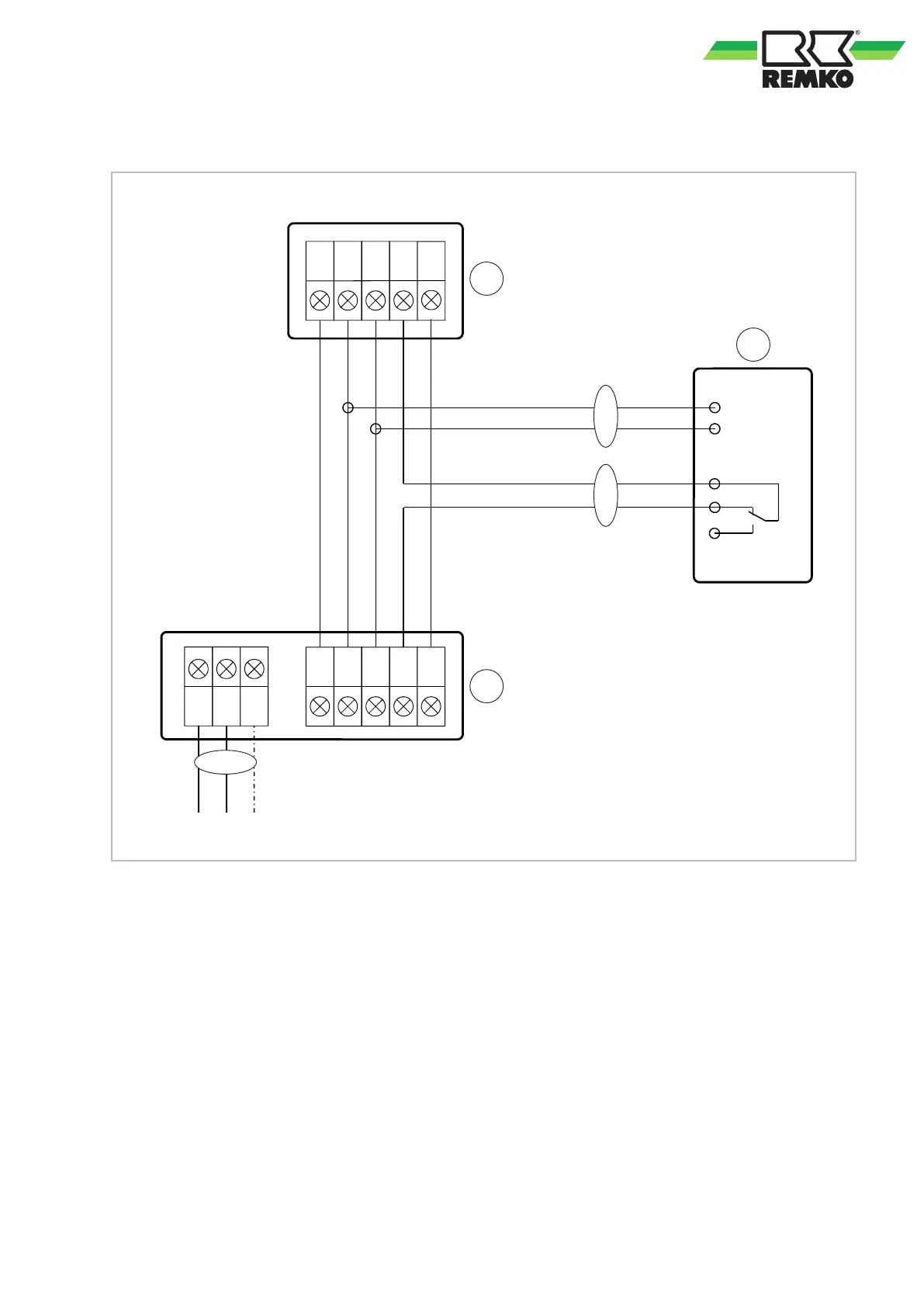

Fig. 40: Electrical wiring diagram
A: Outdoor unit
B: Indoor unit
C: KP6/KP8 condensate pump
1: Power supply cable
2: Condensate pump supply
3: Condensate pump fault contact
BK: black
WH: white
