LUGGAGE COMPARTMENT COVER (continued)

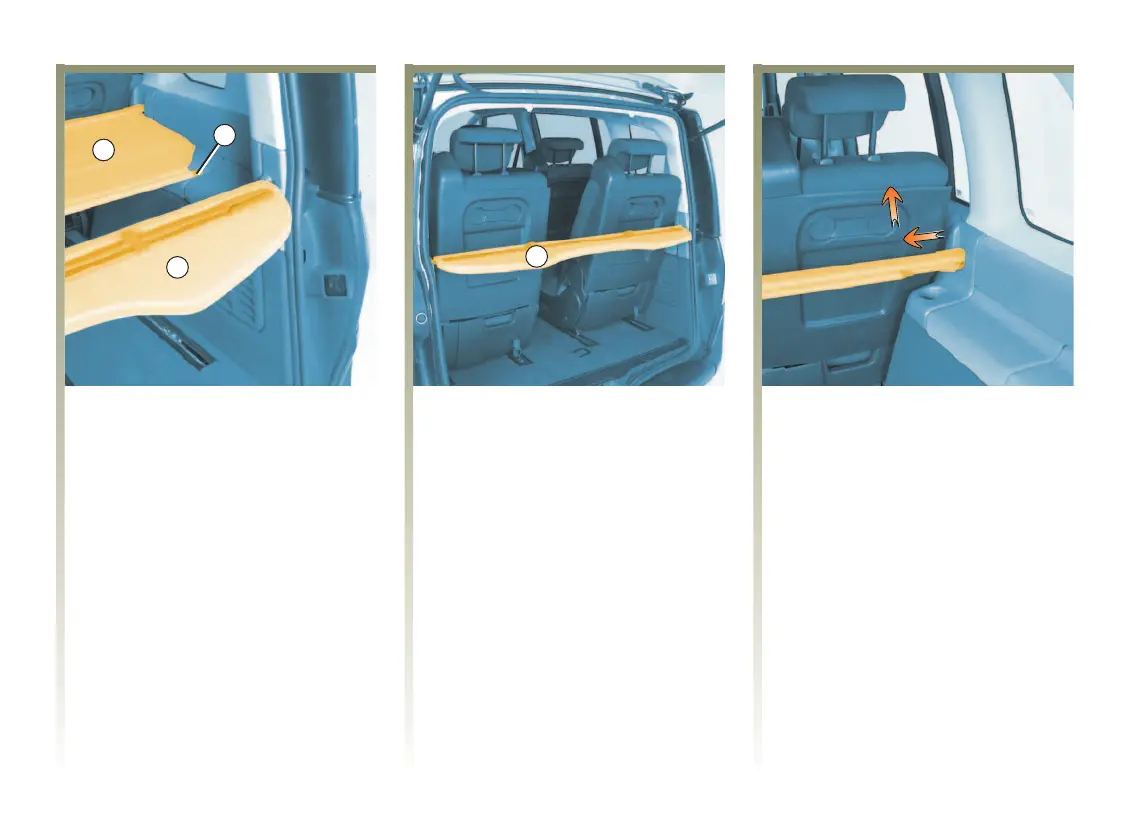

To roll up flexible section C
Pull it gently to release pins 1 from
their mounting point under parcel
shelf B.
Roll up the luggage cover.
Removing parcel shelf B
When the flexible section has been
rolled back, pull parcel shelf B
gently to release it from its contact
points.
Removing the luggage cover
Once the luggage cover is extended,
take hold of one end of the inertia
reel. Push it inwards then lift to
release the roller from its contact
point. Take out the roller.
