WHEEL TRIMS - WHEELS
5.06

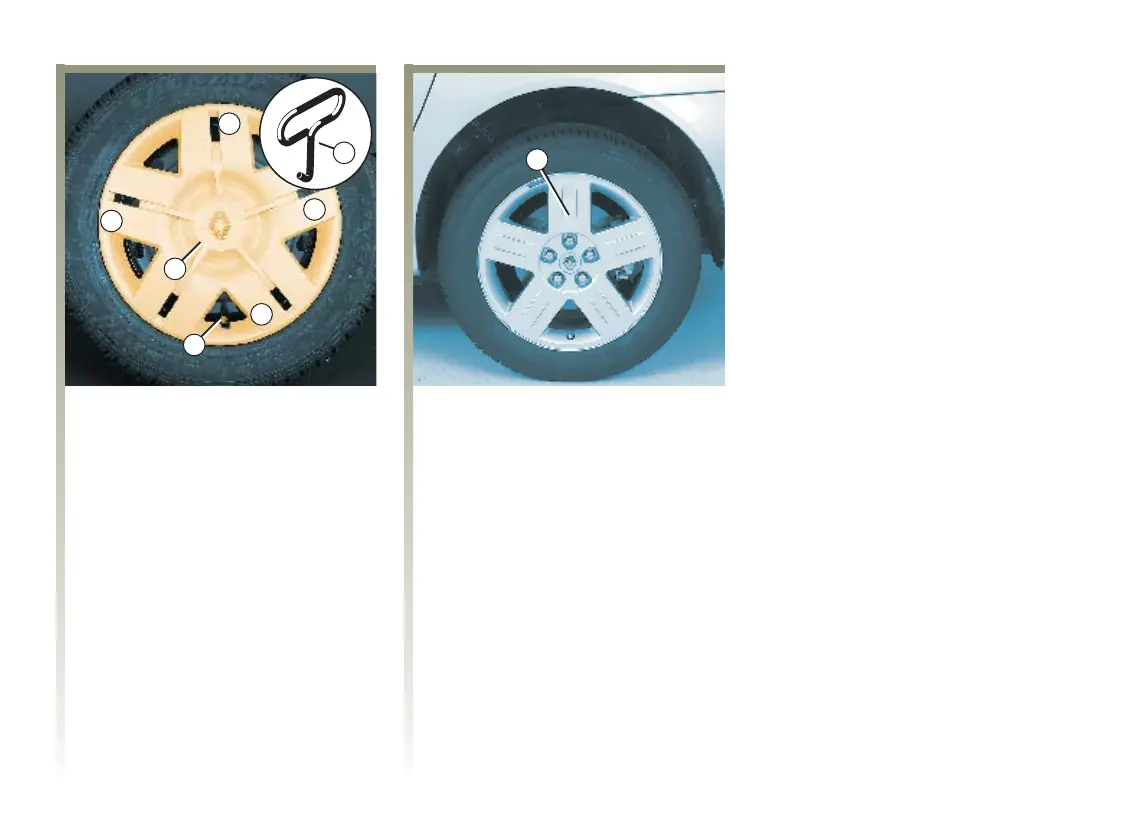

Wheel trim - wheel trim type 1
Remove this using spanner 3
(located in the tool kit) by engaging
the hook into one of the openings
around the edge of the trim.
To refit it, line it up with valve 2.
Push in the retaining hooks
beginning with the valve side A then
B and C and finish by the side
opposite the valve D.
Wheel rim (example: wheel
trim 4)
There is direct access to the wheel
bolt.
