MANUAL SUNROOF

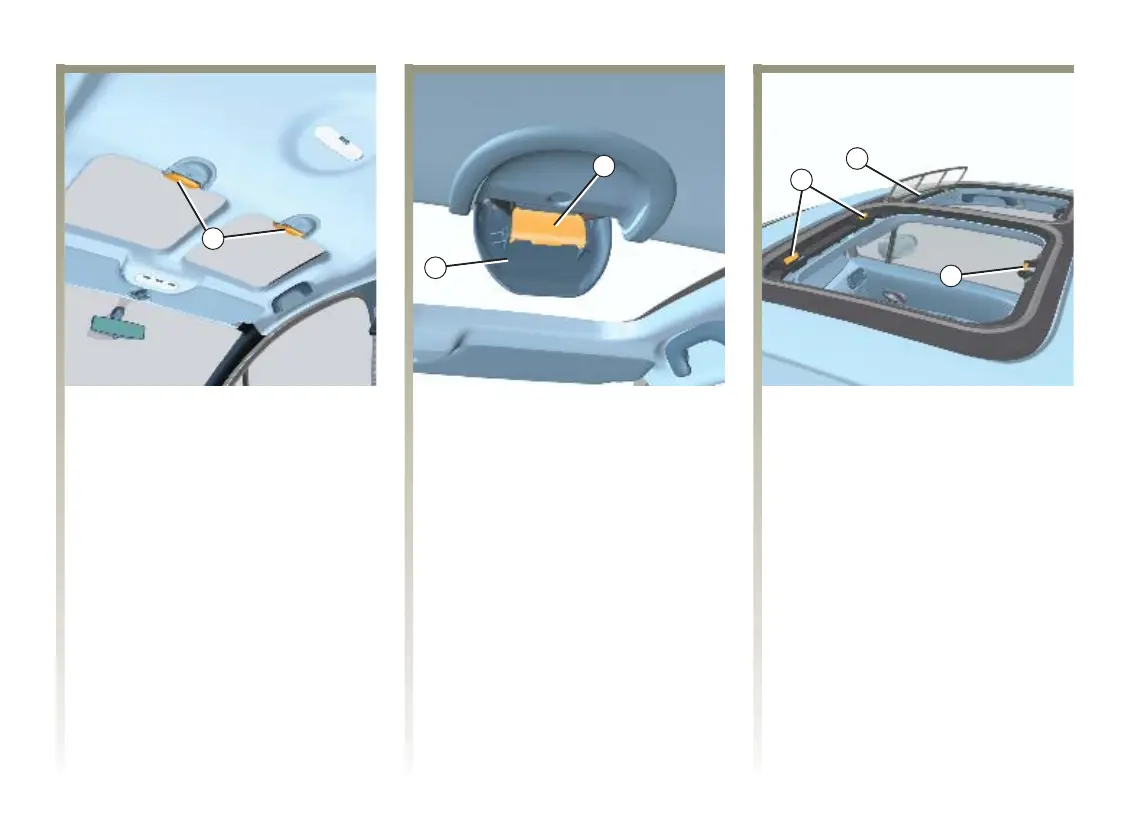

Opening
Push handle 1 as far as it will go
towards the front of the vehicle,
then upwards.
Closing
Pull handle 1 downwards, then
towards the rear of the vehicle.
Removing the sunroof
Push handle 1 half-way, pull cover 2
and press handle locking button 1:
shaft 5 is released.
From outside the vehicle, lift the
glass towards the front of the
vehicle releasing the runners from
hinges 3.
Store the glass panels in the storage
area located at the back of the rear
bench seat (one glass panel per
compartment).
Fitting wind deflectors
You must fit the wind deflectors
after removing the sunroof glass
panels.
Keep them in the storage on the
back of the rear bench seat. Clip
their feet into hinges 3.
Removing the wind deflectors
Tilt the wind deflector 4 forwards.
Once they are unclipped, store them
in the storage on the back of the rear
bench seat.
