2. Kit Contents
The following components are included in the kit:
1. EK-RA4M2 v1 board
2. Micro USB device cable (type-A male to micro-B male)
3. Micro USB host cable (type-A female to micro-B male)

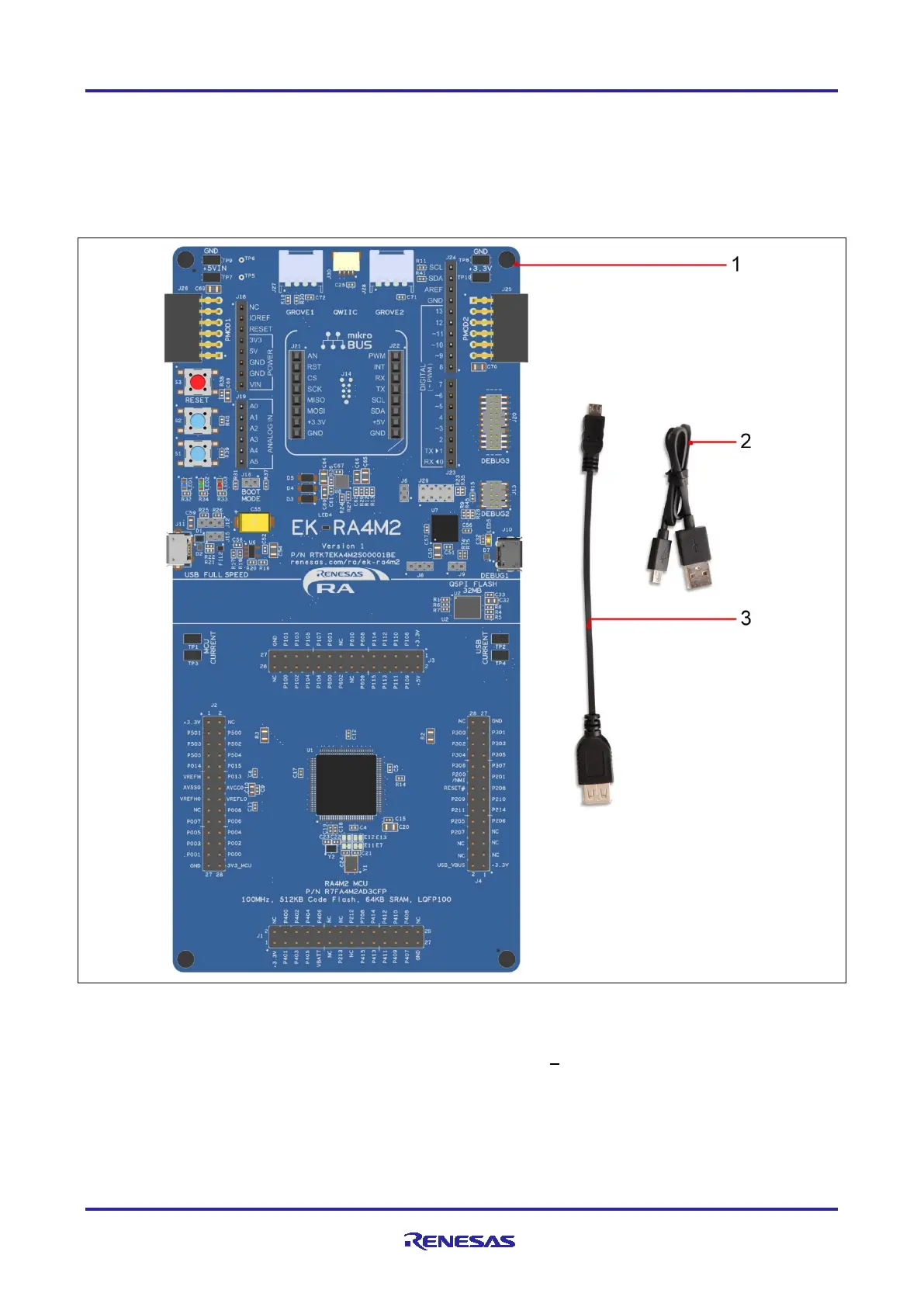

Figure 3. EK-RA4M2 Kit Contents
3. Kit Ordering Information
• EK-RA4M2 v1 kit orderable part number: RTK7EKA4M2S00001BE
Note: The underlined character in the orderable part number represents the kit version.
• EK-RA4M2 board dimensions: 80 mm (width) x 170 mm (length)
