Renesas RA Family EK-RA4M2 v1 – User's Manual
R20UT4815EG0100 Rev 1.00 Page 12 of 30
Jan.04.21
Location
Circuit Group
Default Open/Closed
Function
E16
Pmod 1
Closed
Connects +3.3V to Pmod 1
E17
Pmod 1
Open
Connects +5.0V to Pmod 1
E18
Pmod 1
Open
Connects P408 (SCL3) to Pmod 1
E19
Pmod 1
Open
Connects P409 (SDA3) to Pmod 1
E26
User LED
Closed
Connects User LED2 to MCU P404
E27
User LED
Closed
Connects User LED1 to MCU P415
E28
User LED
Closed
Connects User LED3 to MCU P405
E29
Debug MCU
Power
Closed
Connects the Debug MCU power to +3.3 V
E30
JTAG
Closed
Connects the JTAG GND Detect pin on J20 and
J13 to GND
E31
User Switch
Closed
Connects User Switch S1 to MCU P005
E32
User Switch
Closed
Connects User Switch S2 to MCU P006
5. System Control and Ecosystem Access Area

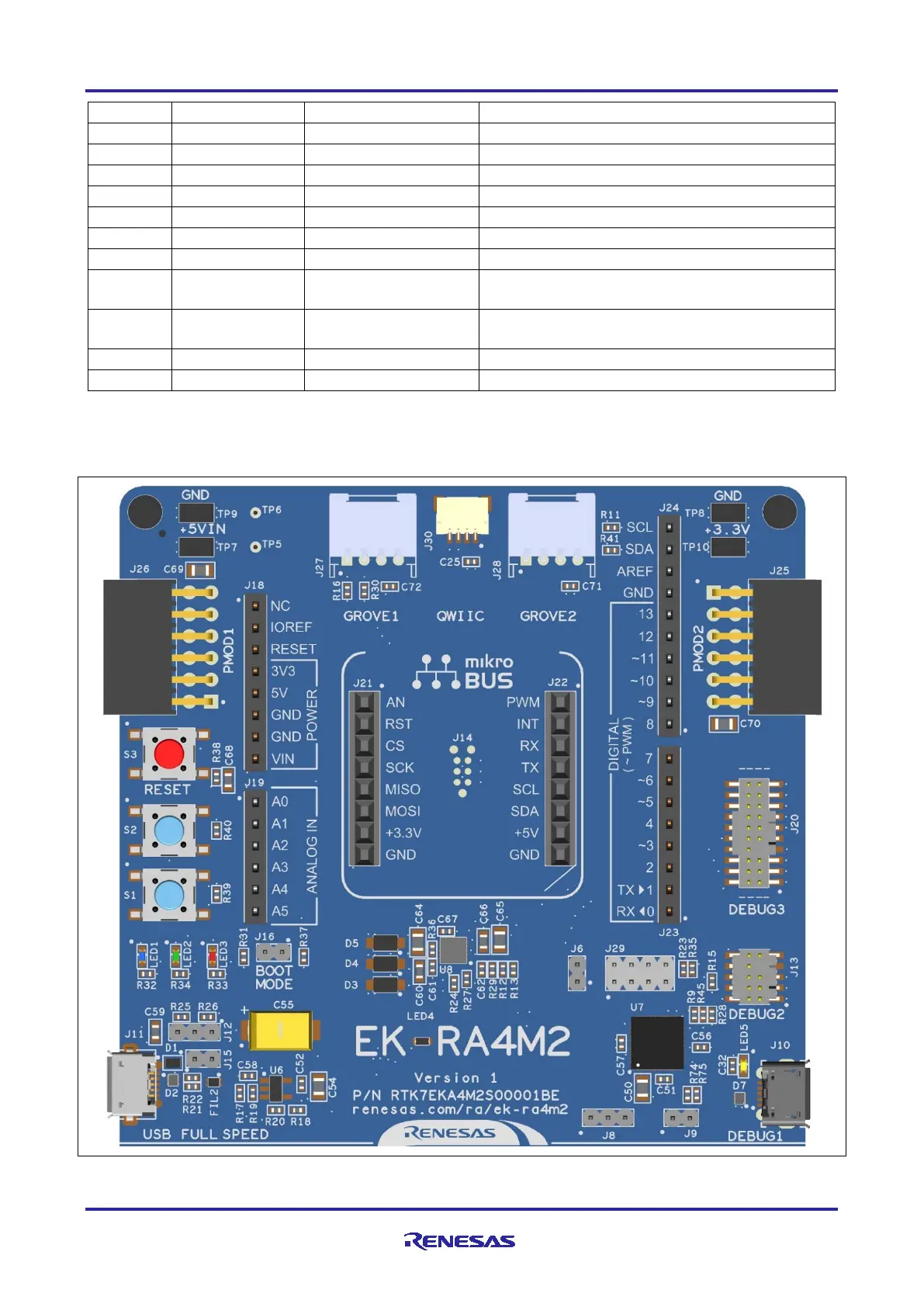

The following figure shows the System Control and Ecosystem Access area on the EK-RA4M2 board.
Subsequent sections detail the features and functionality provided in the area.
Figure 7. System Control and Ecosystem Access Area
