Renesas RA Family EK-RA4M2 v1User's Manual
R20UT4815EG0100 Rev 1.00 Page 11 of 30
Jan.04.21
A solder-bridge jumper is provided with two isolated pads that may be joined together by one of three
methods:
Solder may be applied to both pads to develop a bulge on each and the bulges joined by touching a
soldering iron across the two pads.
A small wire may be placed across the two pads and soldered in place.
A SMT resistor, size 0805, 0603, or 0402, may be placed across the two pads and soldered in place. A
zero-ohm resistor shorts the pads together.
For any copper jumper, the connection is considered closed if there is an electrical connection between the
pads (default for trace-cut jumpers.) The connection is considered open if there is no electrical connection
between the pads (default for the solder-bridge jumpers.)

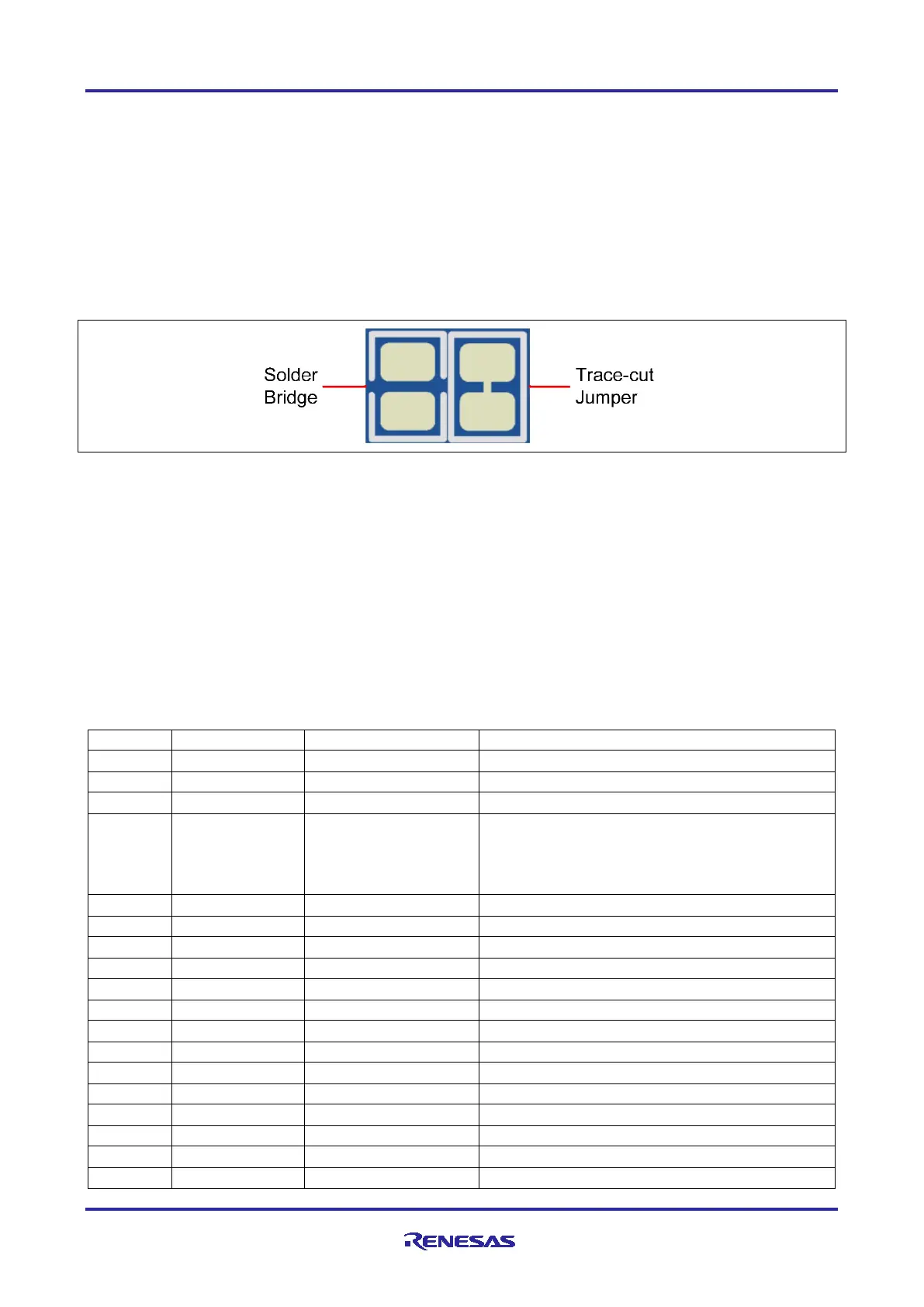

Figure 6. Copper Jumpers
4.3.2 Traditional Pin Header Jumpers
These jumpers are traditional small pitch jumpers that require an external shunt to open/close them. The
traditional pin jumpers on the EK-RA4M2 board are 2 mm pitch headers and require compatible 2 mm shunt
jumpers.
4.3.3 Default Jumper Configuration
The following table describes the default settings for each jumper on the EK-RA4M2 board. This includes
copper jumpers (Ex designation) and traditional pin jumpers (Jx designation.)
The Circuit Group for each jumper is the designation found in the board schematic (available in the Design
Package). Functional details for many of the listed jumpers may be found in sections associated with each
functional area of the kits.
Table 1. Default Jumper Settings
Location
Circuit Group
Default Open/Closed
Function
J6
J-Link OB
Closed
Configures J-Link OB connection to MCU mode
J8
J-Link OB
Jumper on pins 1-2
Configures the MCU for normal operation
J9
J-Link OB
Open
Configures Reset# for on-board debugger mode
J29
J-Link OB
Jumper on pins 1-2
Jumper on pins 3-4
Jumper on pins 5-6
Jumper on pins 7-8
Connects the J-Link OB debugger to the RA
MCU
J16
MCU Boot Mode
Open
Configures the MCU for normal boot mode
J12
USB FS
Jumper on pins 2-3
Sets USB FS power to device mode
J15
USB FS
Jumper on pins 1-2
Connects micro-USB power to system power
E2
MCU Power
Closed
Connects VREFH to +3.3 V
E3
MCU Power
Closed
Connects AVCC0 to +3.3 V
E4
MCU Power
Closed
Connects AVSS0/VREFL to GND
E5
MCU Power
Closed
Connects VREFL0 to GND
E6
MCU Power
Closed
Connects VREFH0 to +3.3 V
E7
MCU Clock
Closed
Connects EXTAL to 24 MHz crystal
E11
MCU Clock
Closed
Connects XTAL to 24 MHz crystal
E12
MCU Clock
Open
Connects P213/XTAL to pin headers
E13
MCU Clock
Open
Connects P212/EXTAL to pin headers
E14
Pmod 1
Closed
Connects P206 (MISO4/RXD4) to Pmod 1
E15
Pmod 1
Closed
Connects P400 (SCK4) to Pmod 1
