Arduino Compatible Connector
EK-RA4M2
Pin
Description
Signal/Bus
J19-3
A2
P003 (AN003)
J19-4
A3
P007 (AN007)
J19-5
A4
P014 (AN012/DA0)
J19-6
A5
P015 (AN013/DA1)
J23-1
D0 / RXD
P100 (RXD0)
J23-2
D1 / TXD
P101 (TXD0)
J23-3
D2 / INT0
P304 (IRQ9)
J23-4
D3 / INT1 / PWM
P105 (IRQ0/GTIOC1A)
J23-5
D4
P106
J23-6
D5 / PWM
P111 (GTIOC3A)
J23-7
D6 / PWM
P103 (GTIOC2A)
J23-8
D7
P107
J24-1
D8
P102
J24-2
D9 / PWM
P114 (GTIOC2B)
J24-3
D10 / SPI_SS / PWM
P603 (SS9/GTIOC7A
J24-4
D11 / SPI_MOSI / PWM
P602 (MOSI9/GTIOC7B)
J24-5
D12 / SPI_MISO
P601 (MISO9)
J24-6
D13 / SPI_SCK
P600 (SCK9)
J24-7
GND
GND
J24-8
AREF
+3.3V
J24-9
I2C_SDA
P112 (SDA2)
J24-10
I2C_SCL
P113 (SCL2)

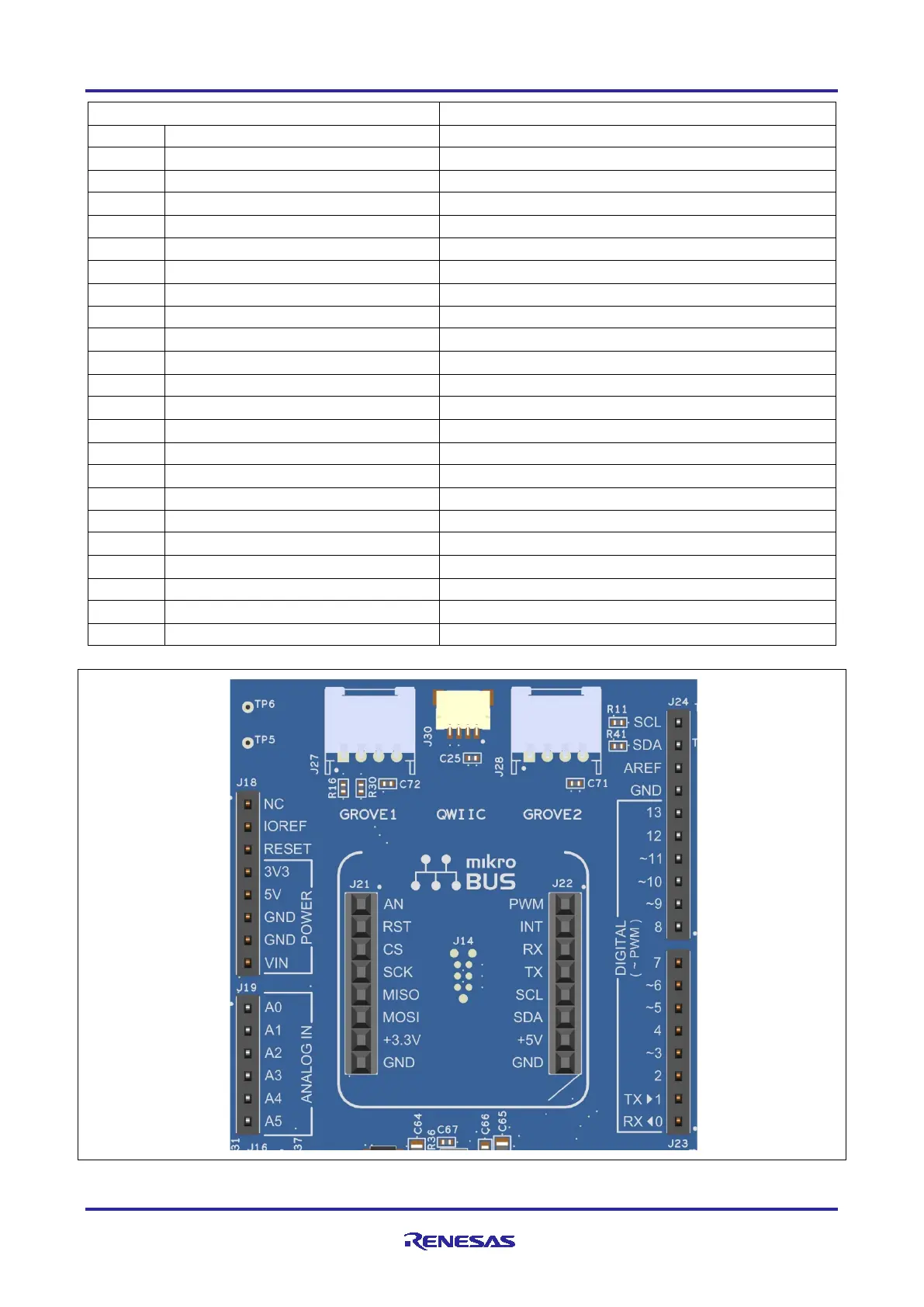

Figure 14. Arduino Uno Connectors
