Renesas RA Family EK-RA4M2 v1 – User's Manual
R20UT4815EG0100 Rev 1.00 Page 10 of 30
Jan.04.21
4.2 System Block Diagram
Figure 5. EK-RA4M2 Board Block Diagram
4.3 Jumper Settings
Two types of jumpers are provided on the EK-RA4M2 board.
1. Copper jumpers (trace-cut type and solder bridge type)
2. Traditional pin header jumpers
The following sections describe each type and their default configuration.
4.3.1 Copper Jumpers

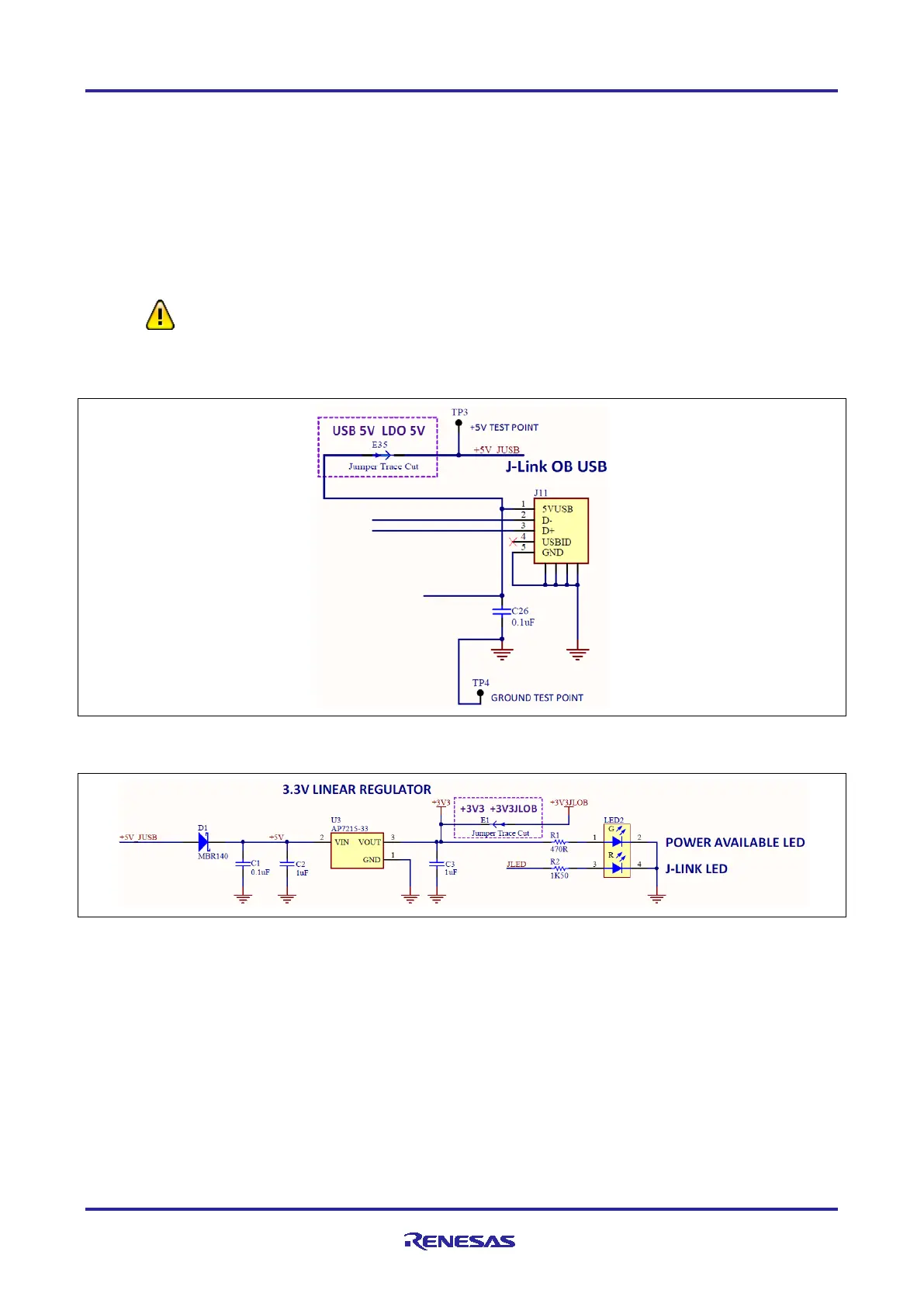

Copper jumpers are of two types, designated trace-cut and solder-bridge.
A trace-cut jumper is provided with a narrow copper trace connecting its pads. The silk screen overlay
printing around a trace-cut jumper is a solid box. To isolate the pads, cut the trace between pads adjacent to
each pad, then remove the connecting copper foil either mechanically or with the assistance of heat. Once
the etched copper trace is removed, the trace-cut jumper is turned into a solder-bridge jumper for any later
changes.
LEDs
32 MB
Quad-SPI
Flash
Voltage/
Current
Probes
Us er
Buttons
USB
Device
and Host
J-Link OB +
Debug + ETM
10 pin and
20 pin
Us er
Programmable
Status Power
Pmod x2
Grove x2 Qwiic
MikroBus
Arduino
Uno
Debug
I/F
GPIO
Power
Delivery
SPI/
UART/
I2C
Analog/
IRQ/IO
Reset
Switch
Power
Meas.
Jumper
USB
FS
Quad-SPI
EK-RA4M2 MCU Board
System Control &
Ecosystem Access
Native Pin Access
Special Feature Access
I2C
