RL78/G13
CHAPTER 3 CPU ARCHITECTURE
R01UH0146EJ0100 Rev.1.00
160
Sep 22, 2011

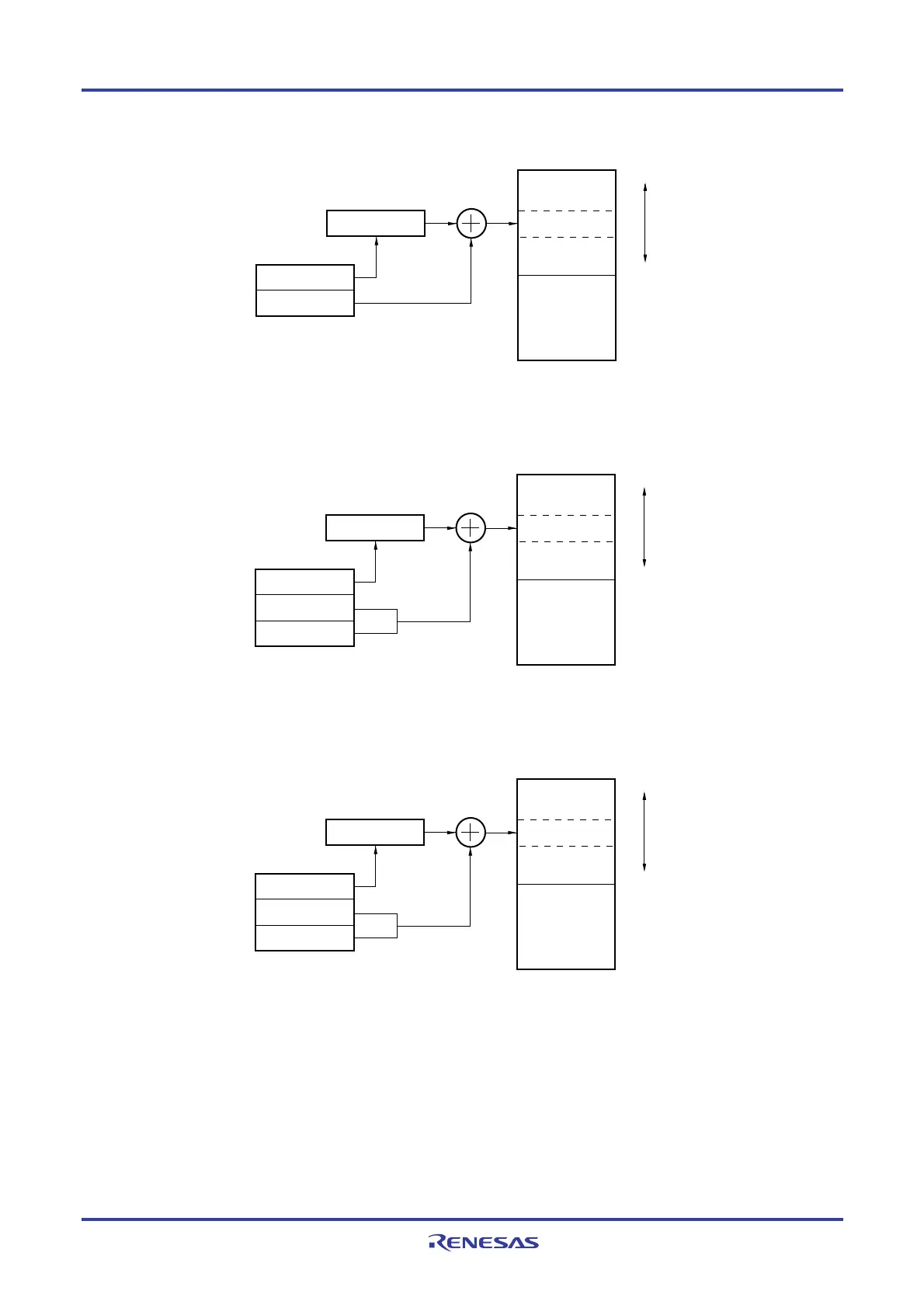

Figure 3-42. Example of
[HL + byte], [DE + byte]
Target memory
OP code
Memory
byte
FFFFFH
F0000H
rp (HL/DE)
Figure 3-43. Example of word[B], word[C]
Target memory
Memory
FFFFFH
F0000H
r (B/C)
OP code
Low Addr.
High Addr.
Figure 3-44. Example of word[BC]
Target memory
Memory
FFFFFH
F0000H
rp (BC)
OP code
Low Addr.
High Addr.
