RL78/G13
CHAPTER 4 PORT FUNCTIONS
R01UH0146EJ0100 Rev.1.00
173
Sep 22, 2011

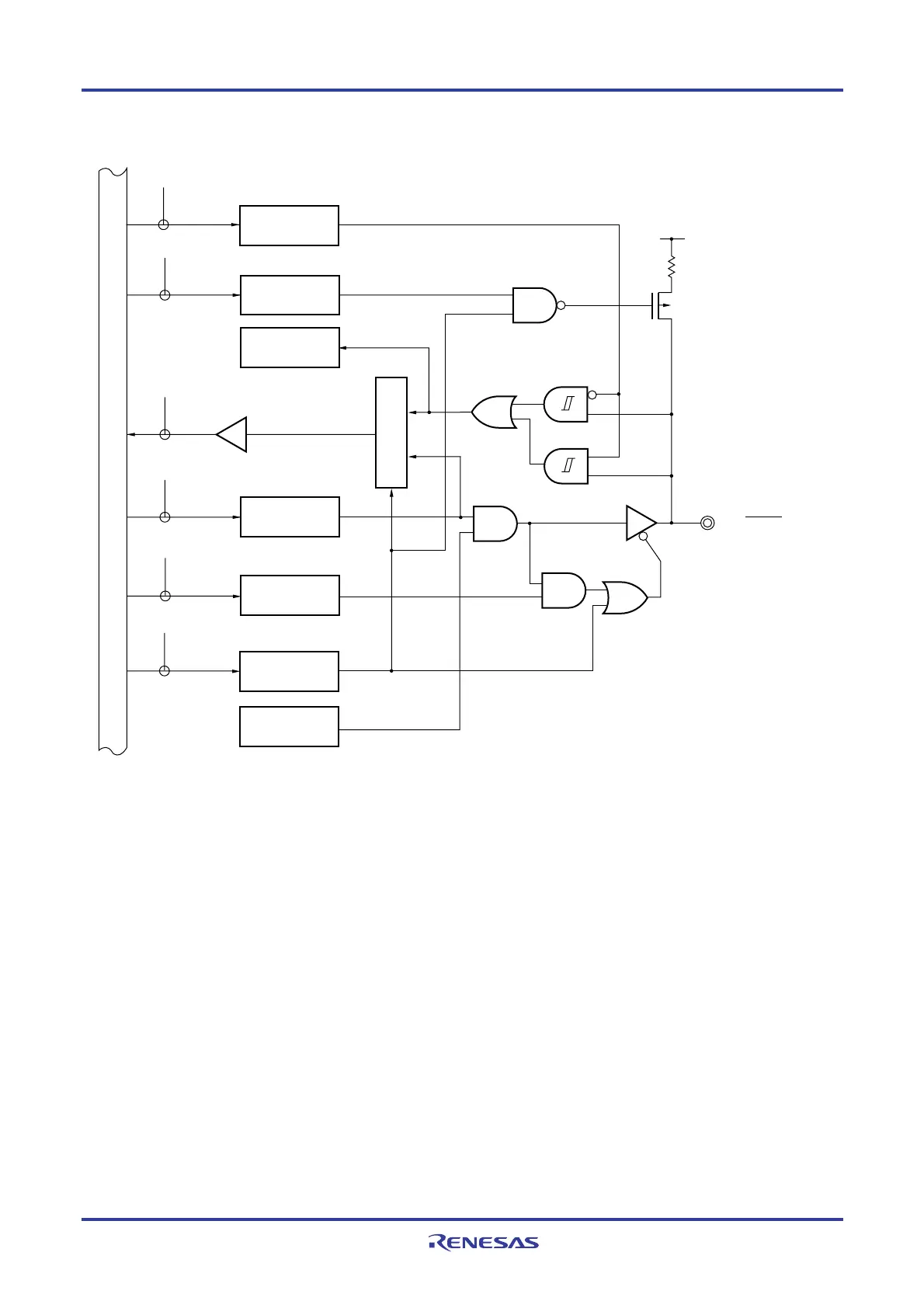

Figure 4-5. Block Diagram of P04
P04/SCK10/SCL10
WR
PU
RD
WR
PORT
PU04
EV
DD
P-ch
PU0
P0
WR
PM
PM0
POM04
POM0
WR
POM
PM04
CMOS
TTL
PIM0
PIM04
WR
PIM
Output latch
(P04)
Selector
Alternate
function
Alternate
function
Internal bus
P0:
Port register 0
PU0:
Pull-u
p resistor option register 0
PM0:
Port mode register 0
PIM0:
Port input mode register 0
POM0:
Port output mode register 0
RD: Read
sign
al
WR
××
: Write
signal
191
193
