RL78/G13 CHAPTER 4 PORT FUNCTIONS

R01UH0146EJ0100 Rev.1.00 197

Sep 22, 2011

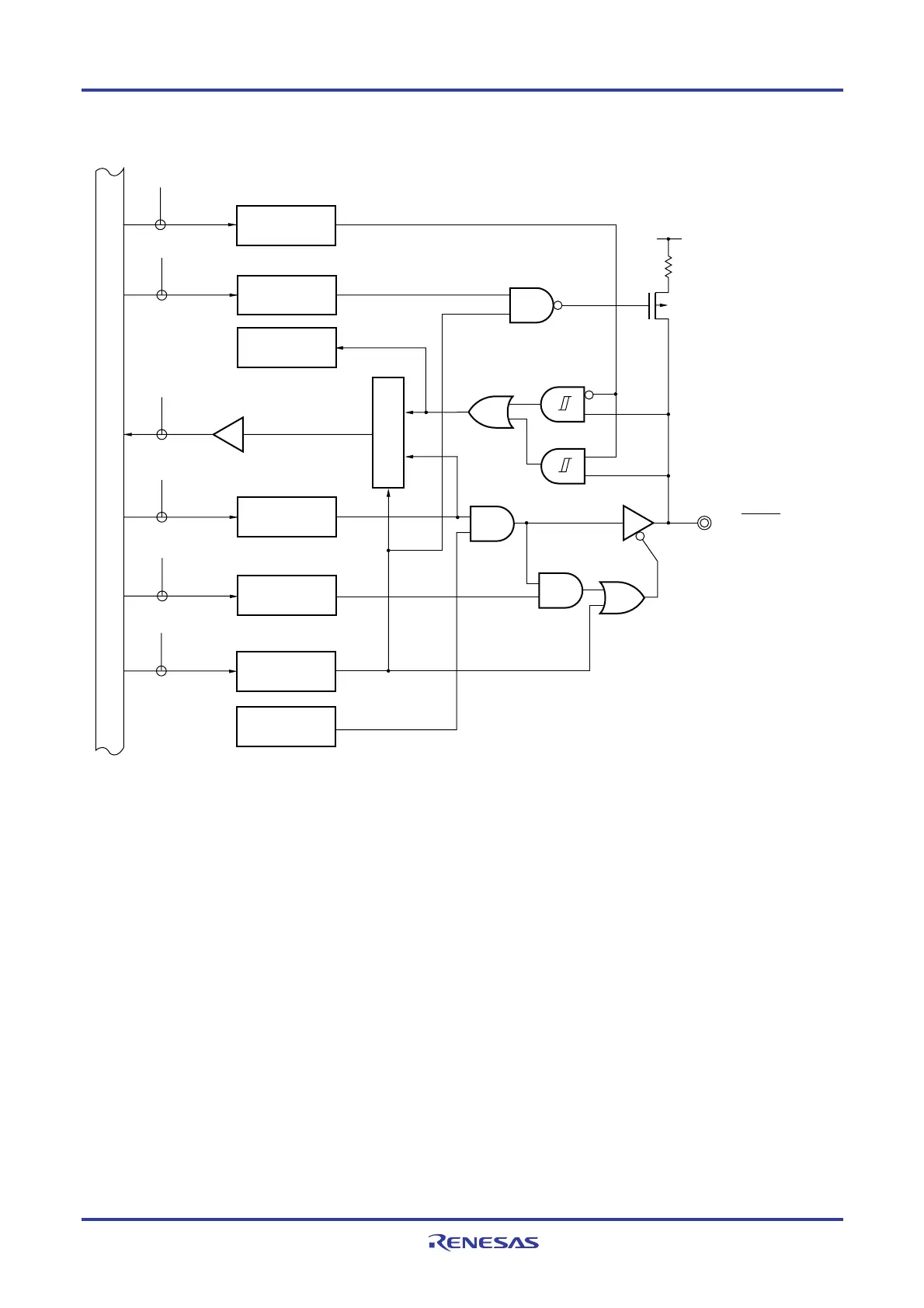

Figure 4-23. Block Diagram of P43, P44

P43/SCK01/SCL01,

P44/SI01/SDA01

PORT

PU43, PU44

P-ch

PU4

PM4

POM43, POM44

POM4

POM

PM43, PM44

CMOS

TTL

PIM4

PIM43, PIM44

PIM

Output latch

(P43. P44)

Selector

Alternate

function

Alternate

function

Internal bus

P4: Port register 4

PU4: Pull-up resistor option register 4

PM4: Port mode register 4

PIM4: Port input mode register 4

POM4: Port output mode register 4

RD: Read signal

WR××: Write signal
